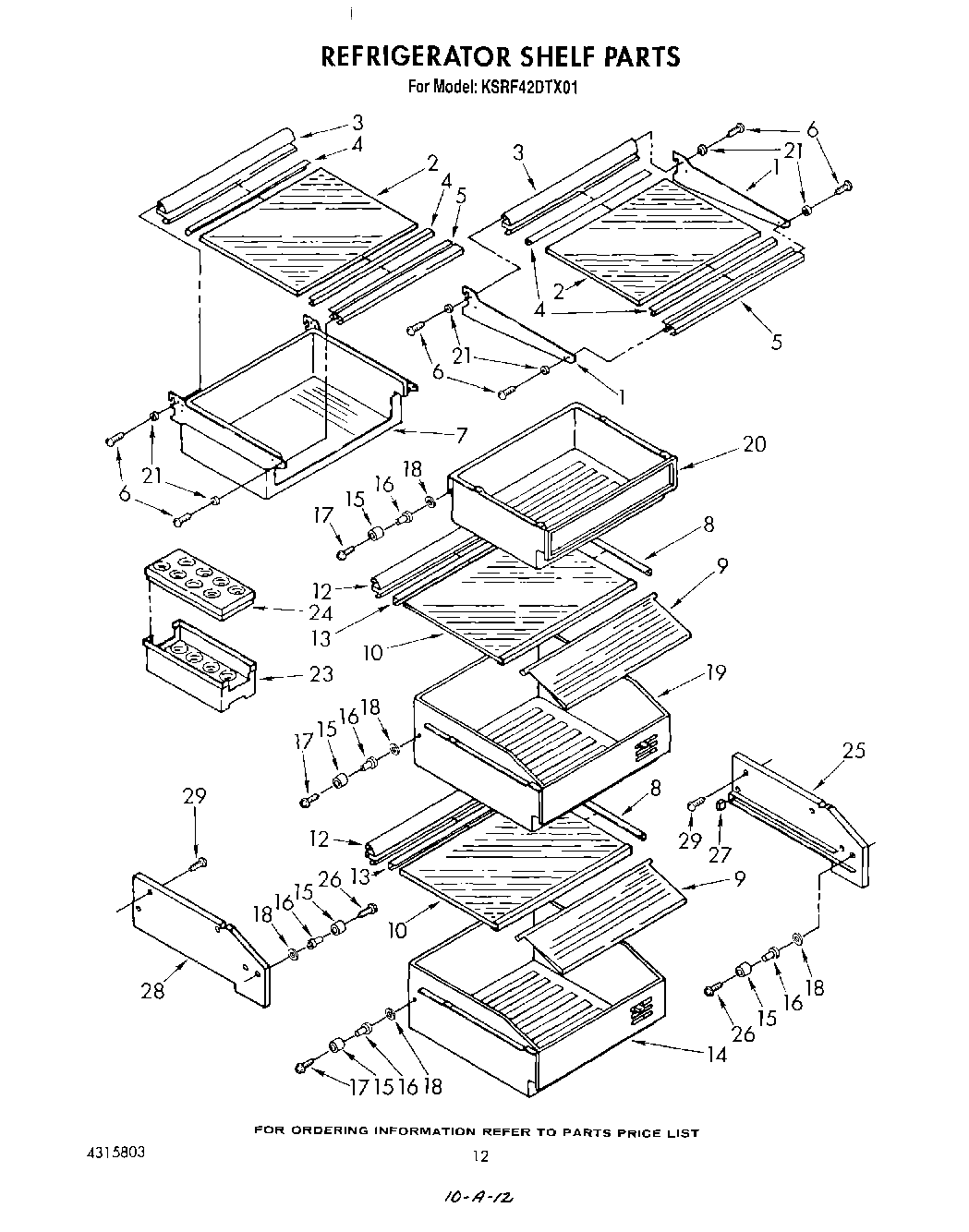

KSRF42DTX01 09 – REFRIGERATOR SHELF

Products

Position	Product
1	Side Arm, Cantilever Shelf
2	Glass, Shelf
3	Reflector, Shelf
4	Gasket, Glass (2)
5	Trim, Shelf Front
6	Screw, 6-32 x 1/2
7	Frame & Housing, Meat Pan
8	Retainer, Glass
9	WP1113894 Whirlpool Refrigerator Cover
10	Glass, Crisper
12	Reflector, Glass
13	Gasket, Crisper
14	Pan, Crisper
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	Utility Pan
20	Meat Pan
21	Spacer, Shelf
23	Egg Container, Bottom
24	Egg Container, Top
25	Crisper Spacer, Right Side (2)
26	WP489261 Whirlpool Refrigerator Screw
27	Roller Stop
28	Crisper Spacer, Left Side (2)
29	SCREW
29	W11624204 Whirlpool Screw
