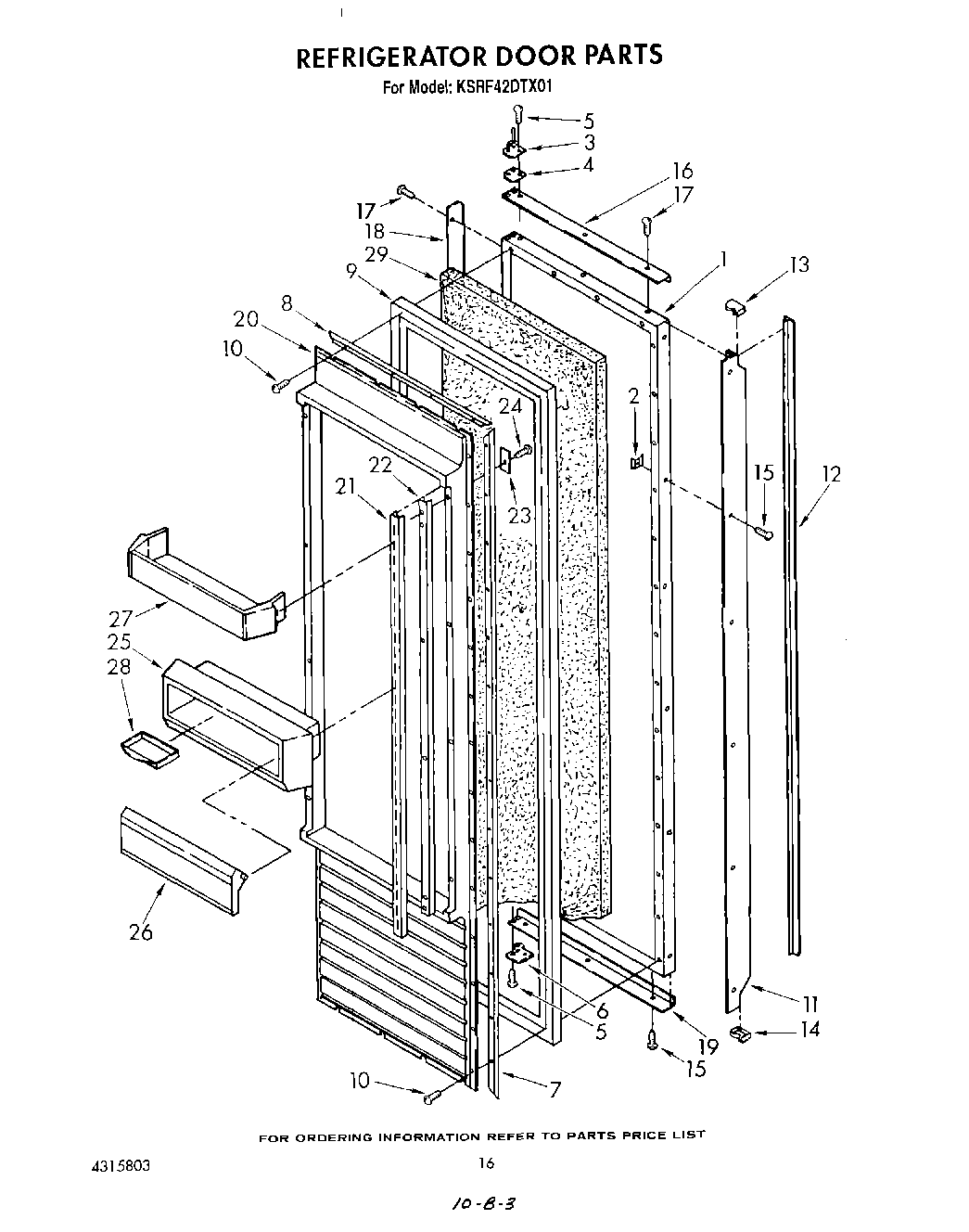

KSRF42DTX01 11 – REFRIGERATOR DOOR , LIT/OPTIONAL

Products

Position	Product
	Service & Wiring Sheet
	Energy Label
	Use & Care Guide
	Parts List
	WPL LIT628107
1	Door Panel, Refrigerator (Also Order Item 29)
2	WP939101 Whirlpool Refrigerator Plate
3	Hinge Assembly, Top
4	Spacer
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	WP489069 Whirlpool Compactor Screw
11	Handle, Door
12	Insert, Door Handle
13	End Cap, Top
14	End Cap, Bottom
15	WP488729 Whirlpool Refrigerator Door Screw
16	Trim (Top)
17	Screw, 6-32 x 1/2
18	Trim (Side)
19	Trim (Bottom)
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	SCREW
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (4)
29	Front Panel Kit (Almond)
29	Front Panel Kit (White)
29	Top Grille Trim Kit (7-1/2“)
29	Top Grille Trim Kit (8“)
29	WPL 876029
29	Front Panel Kit (Black)
