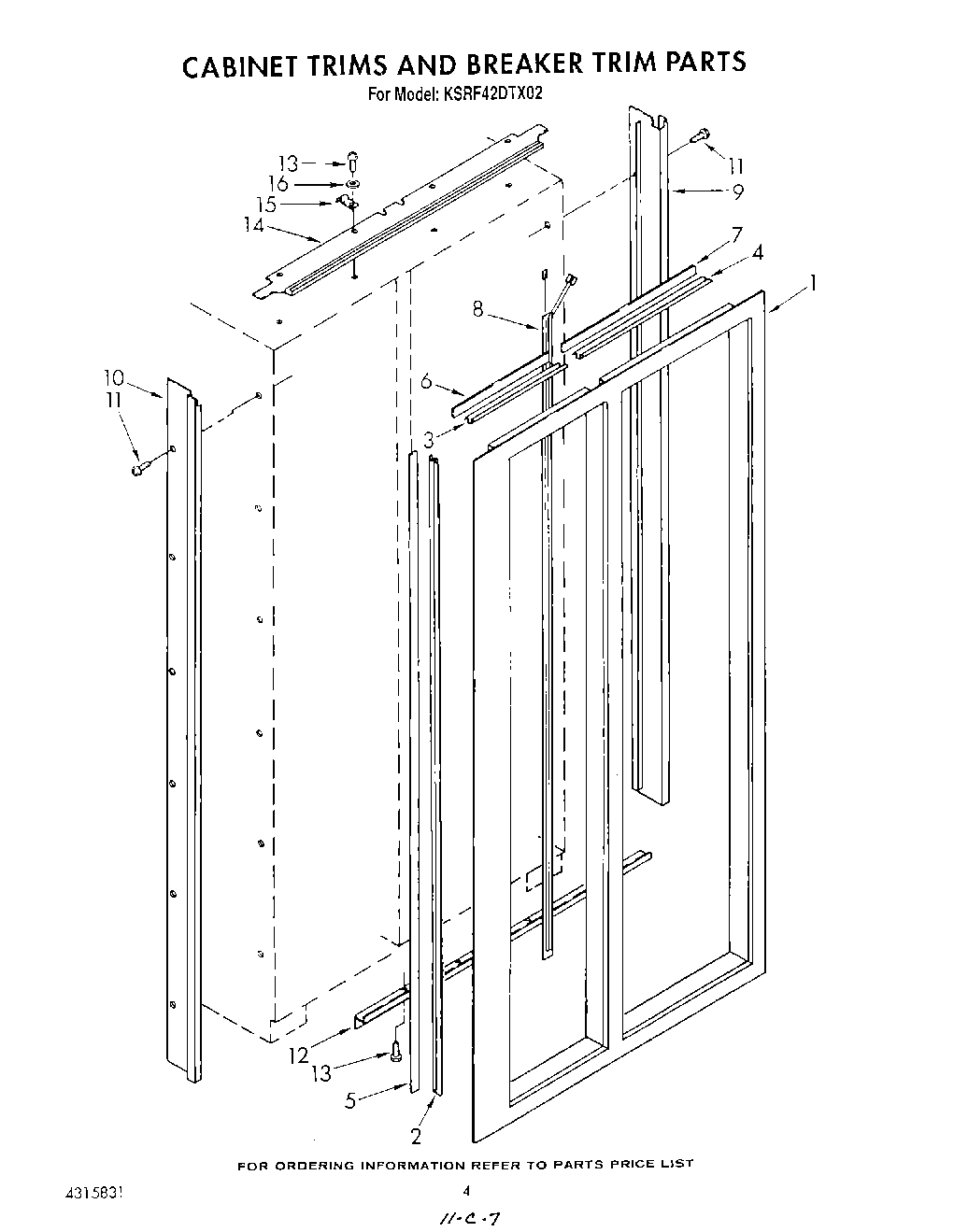

KSRF42DTX02 03 – CABINET TRIMS AND BREAKER TRIM

KSRF42DTX02 03 – CABINET TRIMS AND BREAKER TRIM

Written by

in

KSRF42DTX02 03 – CABINET TRIMS AND BREAKER TRIM

Products

PositionProduct
1Breaker Trim, One Piece
2Retainer, Side (4)
3Retainer, Freezer (2)
4Retainer, Refrigerator (2)
5Magnet, Side (4)
6Magnet, Freezer (2)
7Magnet, Refrigerator (2)
8Heater, Mullion
9Trim (R.S.)
10Trim (L.S.)
11Screw
11Repair, Screw
12Trim (Bottom)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Spacer Trim, Grille
15Retainer, Unit Base (2)
16W10903204 Whirlpool Refrigerator Washer
