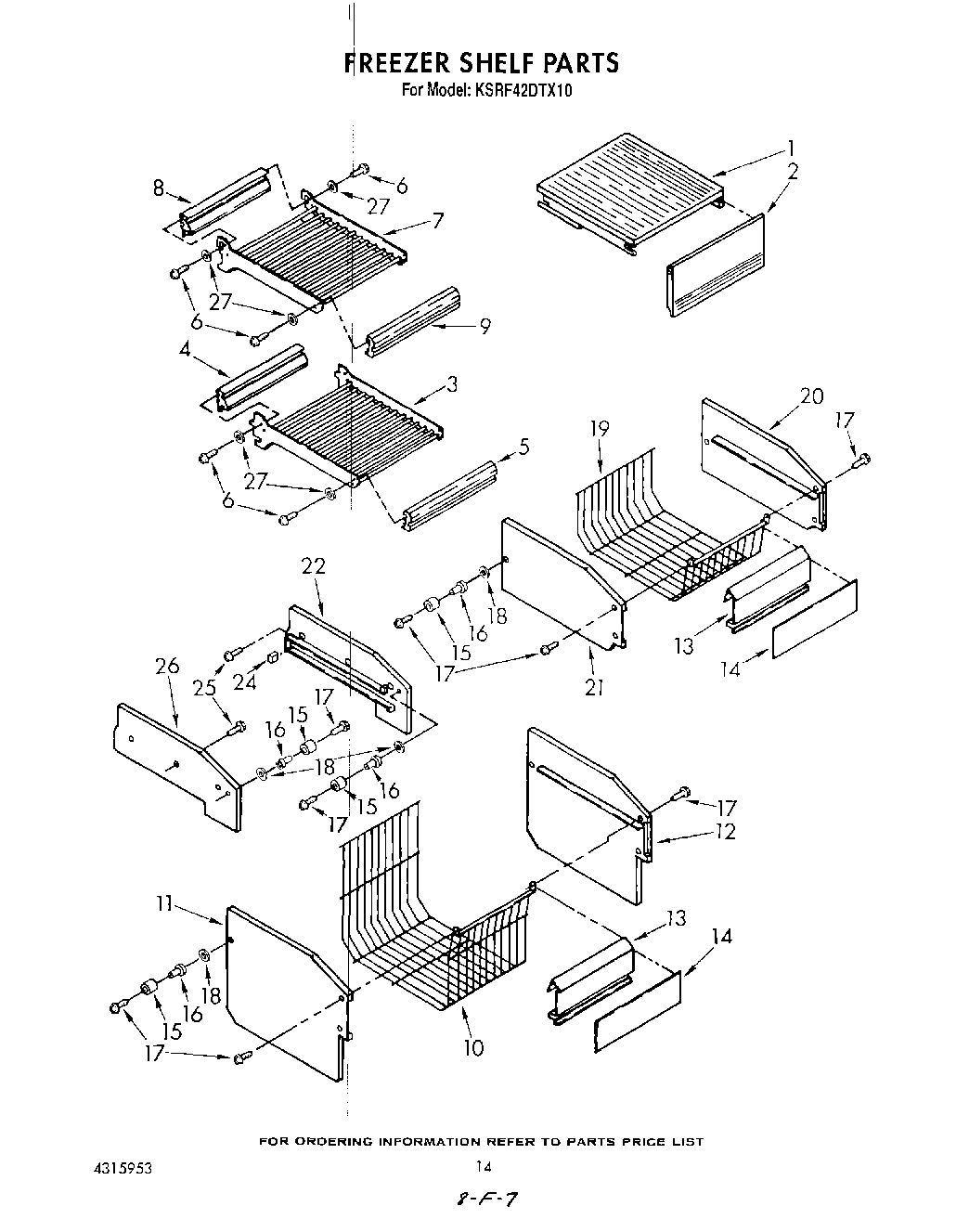

KSRF42DTX10 10 – FREEZER SHELF

KSRF42DTX10 10 – FREEZER SHELF

Written by

in

KSRF42DTX10 10 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Fixed (2)
4Reflector, Shelf
5Trim, Shelf
6Screw, 6-32 x 1/2
7Shelf, Cantilever
8Reflector, Shelf
9Trim, Shelf
10Basket (Large)
11Side, Basket (Left Side)
12Side, Basket (Right Side)
13Front, Basket
14Overlay, Front
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
17WP489261 Whirlpool Refrigerator Screw
18Washer
19Basket (Small)
20Side, Basket (Left Side)
21Side, Basket (Right Side)
22Basket Spacer, Right Side (2)
24Roller Stop
25W11624204 Whirlpool Screw
25SCREW
26Basket Spacer, Left Side (2)
27Spacer, Shelf
