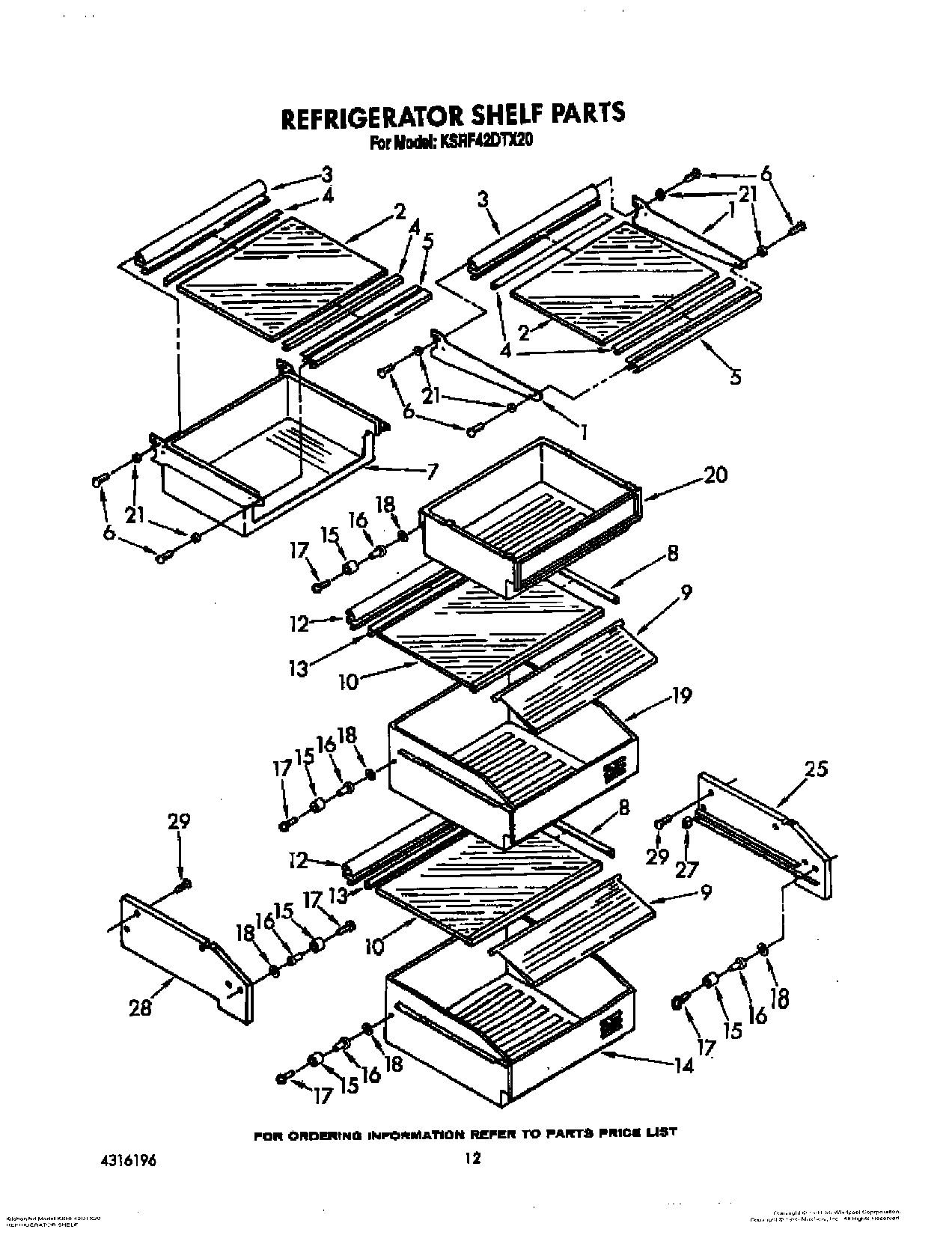

KSRF42DTX20 09 – REFRIGERATOR SHELFadmin2025-04-26T12:21:25+00:00KSRF42DTX20 09 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Side Arm, Cantilever Shelf |
| 2 | Glass, Shelf |
| 3 | Reflector, Shelf |
| 4 | Gasket, Glass (2) |
| 5 | Trim, Shelf Front |
| 6 | Screw, 6-32 x 1/2 |
| 7 | Frame & Housing, Meat Pan |
| 8 | Retainer, Glass |
| 9 | WP1113894 Whirlpool Refrigerator Cover |
| 10 | Glass, Crisper |
| 12 | Reflector, Glass |
| 13 | Gasket, Crisper |
| 14 | Pan, Crisper |
| 15 | Roller |
| 15 | Roller |
| 16 | Eyelet, Roller |
| 16 | Eyelet, Roller |
| 17 | WPW10272364 Whirlpool Refrigerator Screw |
| 18 | Washer |
| 19 | Utility Pan |
| 20 | Meat Pan |
| 21 | Spacer, Shelf |
| 25 | Crisper Spacer, Right Side (2) |
| 27 | Roller Stop |
| 28 | Crisper Spacer, Left Side (2) |
| 29 | W11624204 Whirlpool Screw |
