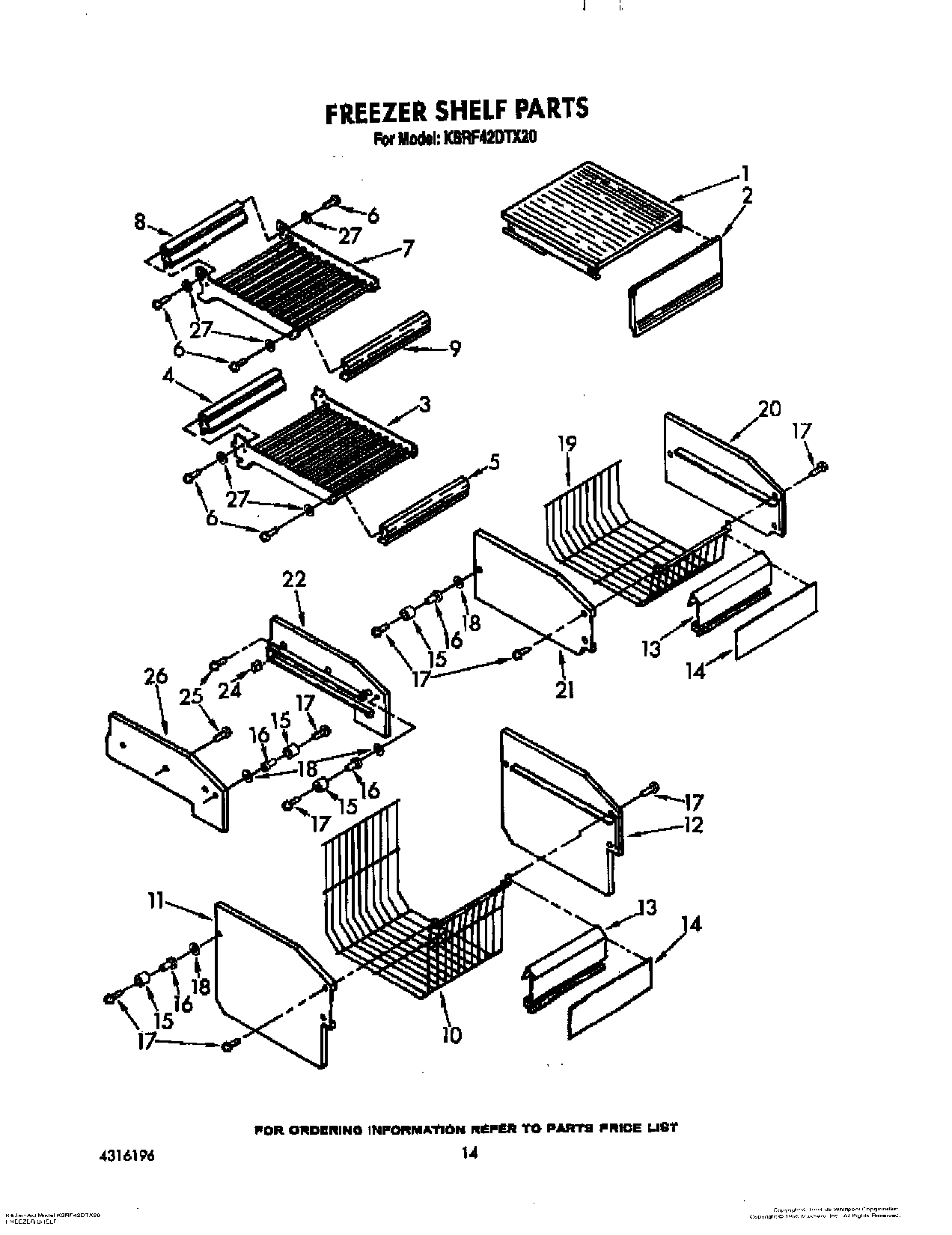

KSRF42DTX20 10 – FREEZER SHELFadmin2025-04-26T12:20:43+00:00KSRF42DTX20 10 – FREEZER SHELF
Products
| Position | Product |
|---|
| 1 | Solid Shelf |
| 2 | Front, Ice Compartment |
| 3 | Shelf, Fixed (2) |
| 4 | Reflector, Shelf |
| 5 | Trim, Shelf |
| 6 | Screw, 6-32 x 1/2 |
| 7 | Shelf, Cantilever |
| 8 | Reflector, Shelf |
| 9 | Trim, Shelf |
| 10 | Basket (Large) |
| 11 | Side, Basket (Left Side) |
| 12 | Side, Basket (Right Side) |
| 13 | Front, Basket |
| 14 | Overlay, Front |
| 15 | Roller |
| 16 | Eyelet, Roller |
| 17 | WPW10272364 Whirlpool Refrigerator Screw |
| 18 | Washer |
| 19 | Basket (Small) |
| 20 | Side, Basket (Left Side) |
| 21 | Side, Basket (Right Side) |
| 22 | Basket Spacer, Right Side (2) |
| 24 | Roller Stop |
| 25 | W11624204 Whirlpool Screw |
| 26 | Basket Spacer, Left Side (2) |
| 27 | Spacer, Shelf |
