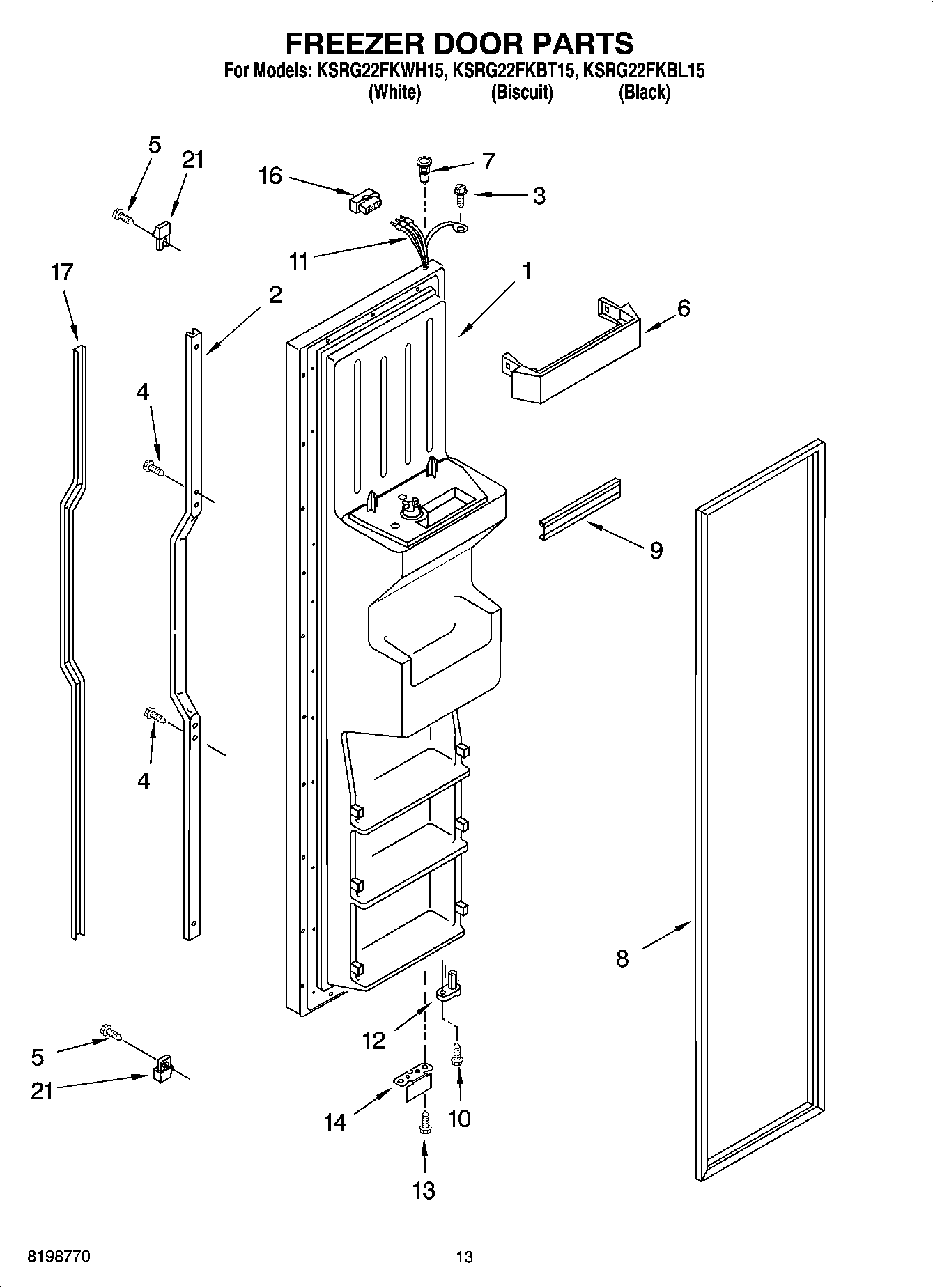

KSRG22FKBL15 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Retainer, Handle (Biscuit)
2	Retainer, Insert (Black)
2	Retainer, Insert
3	WP3400906 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
5	WP3400852 Whirlpool Refrigerator Screw
6	Trivet, Shelf (4)
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	WP2154473 Whirlpool Refrigerator Connector
17	Insert, Handle (Black)
17	Insert, Handle (Biscuit)
17	Insert, Handle
21	End Cap, Handle (Biscuit)
21	End Cap (Black)
21	End Cap, Handle
