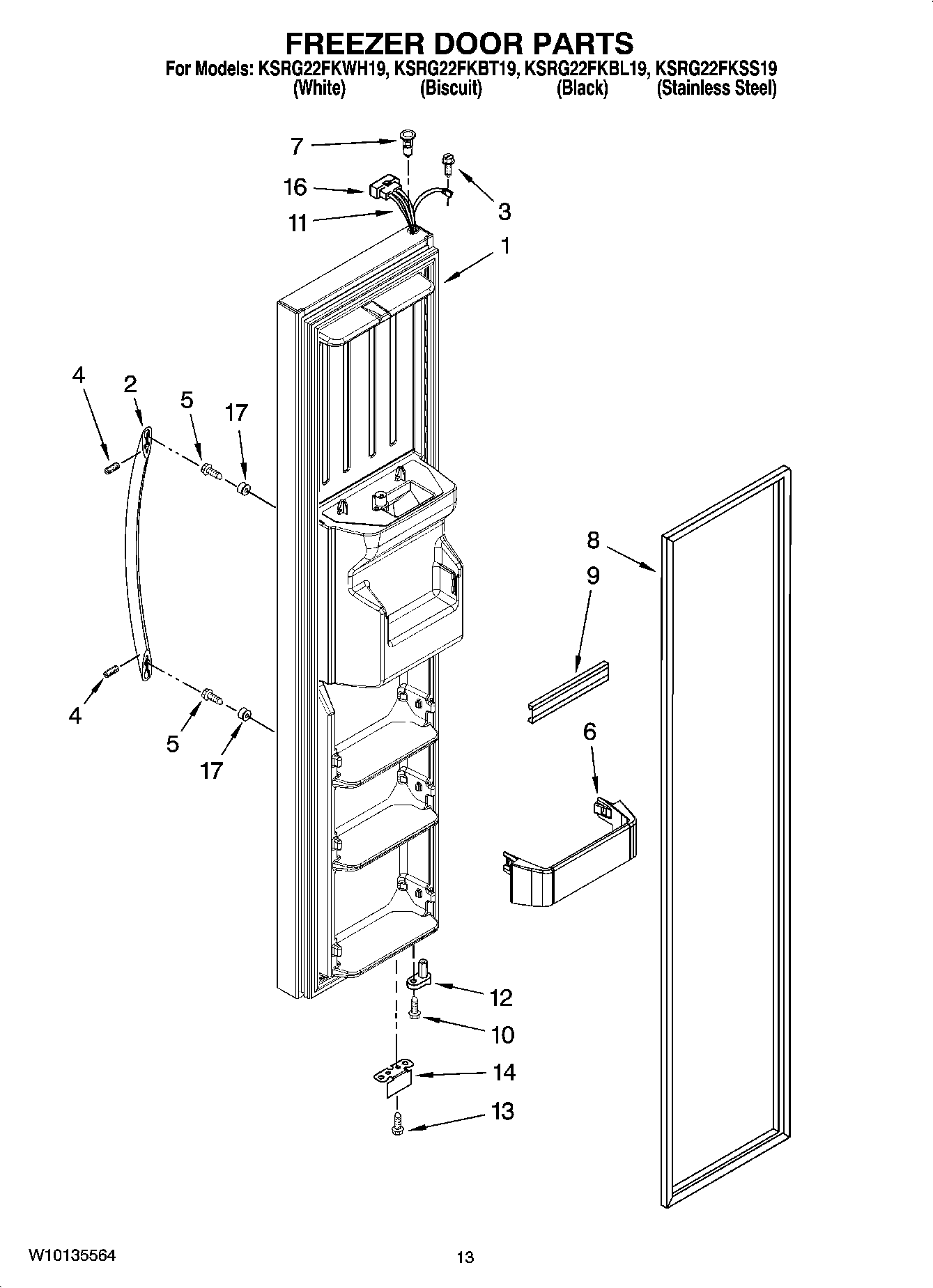

KSRG22FKBT19 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle (White)
2	Handle (Biscuit)
2	Handle (Black)
2	Handle (Stainless Steel)
3	WP3400906 Whirlpool Refrigerator Screw
4	SCREW
4	WPW10010150 Whirlpool Refrigerator Screw
5	WP488163 Whirlpool Refrigerator Screw
6	Trivet, Shelf (3)
7	WP2182181 Whirlpool Refrigerator Thimble
8	2159072 Whirlpool Refrigerator FIP Gasket
8	2159080 Whirlpool Refrigerator Door Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
16	Connector
17	WPW10170540 Whirlpool Screw
