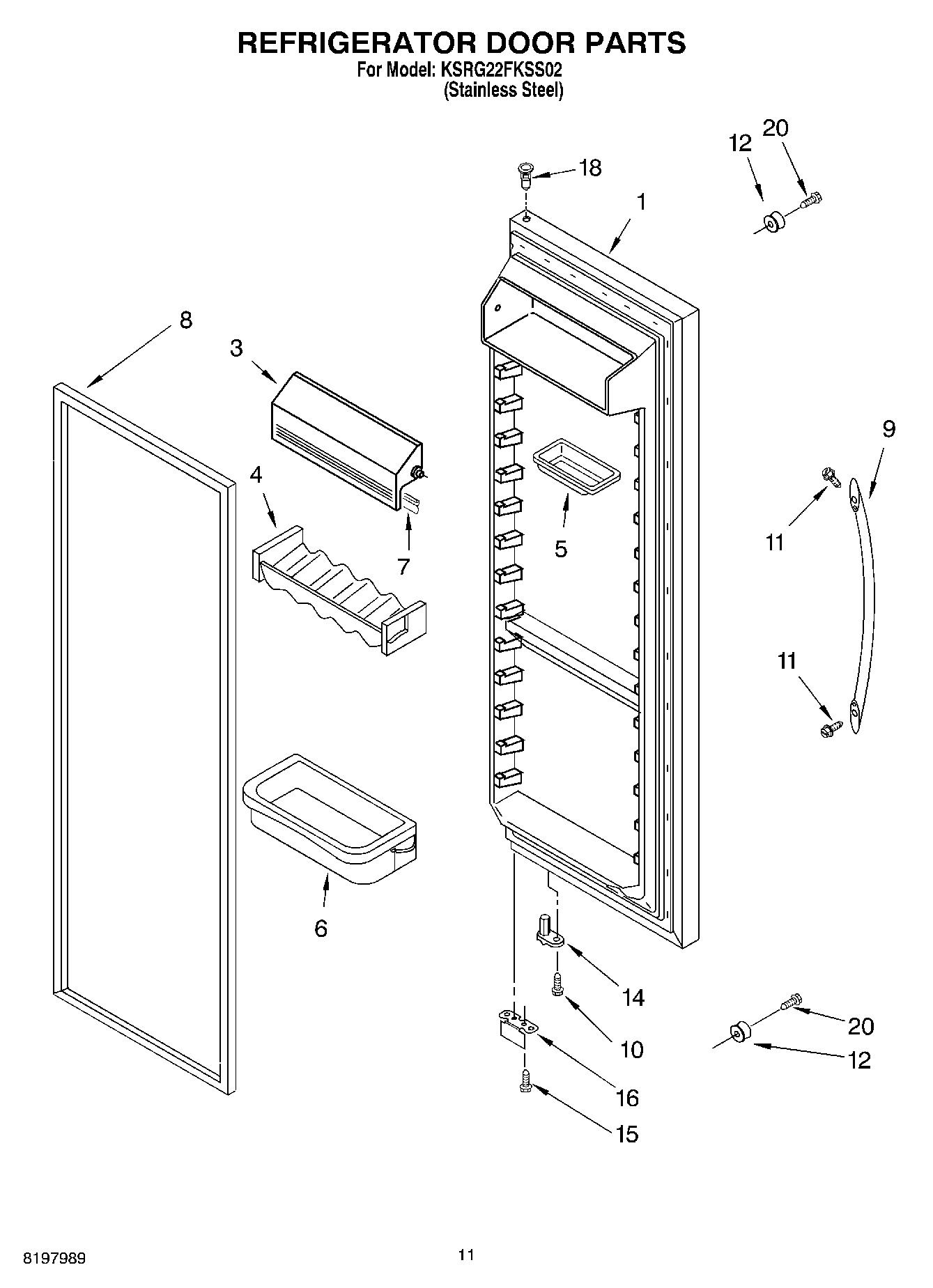

KSRG22FKSS02 07 – REFRIGERATOR DOOR

KSRG22FKSS02 07 – REFRIGERATOR DOOR

Written by

in

KSRG22FKSS02 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (Stainless Steel)
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Bin, Door Shelf
7Gasket, Door Compartment
82159081 Whirlpool Refrigerator Door Gasket
9Handle (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11WP489463 Whirlpool Refrigerator Screw
12Stud, Handle
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
18WP2182181 Whirlpool Refrigerator Thimble
20Setscrew, 10-32
