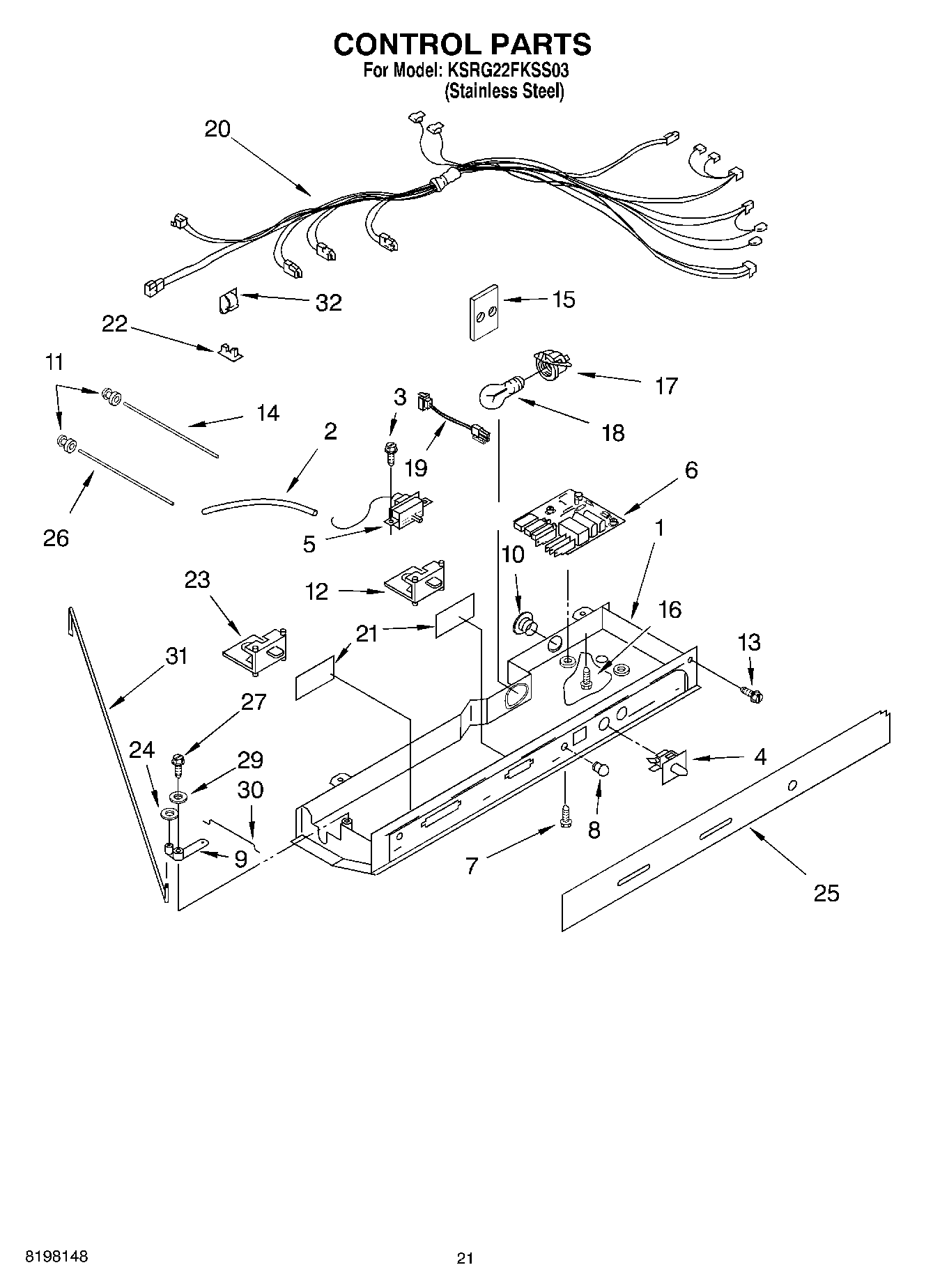

KSRG22FKSS03 12 – CONTROL, OPTIONAL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
9	2161306 Whirlpool Refrigerator Arm Pivot
10	940014 Whirlpool Refrigerator Primary Button Plug
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	2172931 Whirlpool Refrigerator Shield
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	RANGE ONLY 40W 120V APPL BULB
19	W10853646 Whirlpool Indicator Light
20	2311632 Whirlpool Refrigerator Wire Harness
21	Window
22	CLIP, WIRING
23	2181741 Whirlpool Refrigerator Slide
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	627068 Whirlpool Refrigerator Screw
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
31	2161308 Whirlpool Refrigerator Rod
32	350942 Whirlpool Spray Paint
32	4392899 Whirlpool Biscuit Touch-Up Paint
32	4392901 Whirlpool Biscuit Spray Paint
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Almond (Uncut)
32	WP72107 Whirlpool Touchup
32	350930 Whirlpool White Spray Paint
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350956 Whirlpool Spray Assembly
32	Ice Crusher Mechanism Assembly
32	511873 Whirlpool Refrigerator Paint
32	606755 Whirlpool Refrigerator Bag
32	Enamel, Black (1 Qt. Uncut)
32	WPL 799833
32	WPL 876029
32	WP1115374 Whirlpool Refrigerator Clip
32	TAPE, VINYL (3/4 X 108“)
32	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
32	285006 Whirlpool Spray
32	72032 Whirlpool Touch Up Paint Black
32	Torx Key
32	WP542638 Whirlpool Refrigerator Grease
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	876370 Whirlpool Refrigerator Insulation
32	833938 Whirlpool Refrigerator Terminal
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
