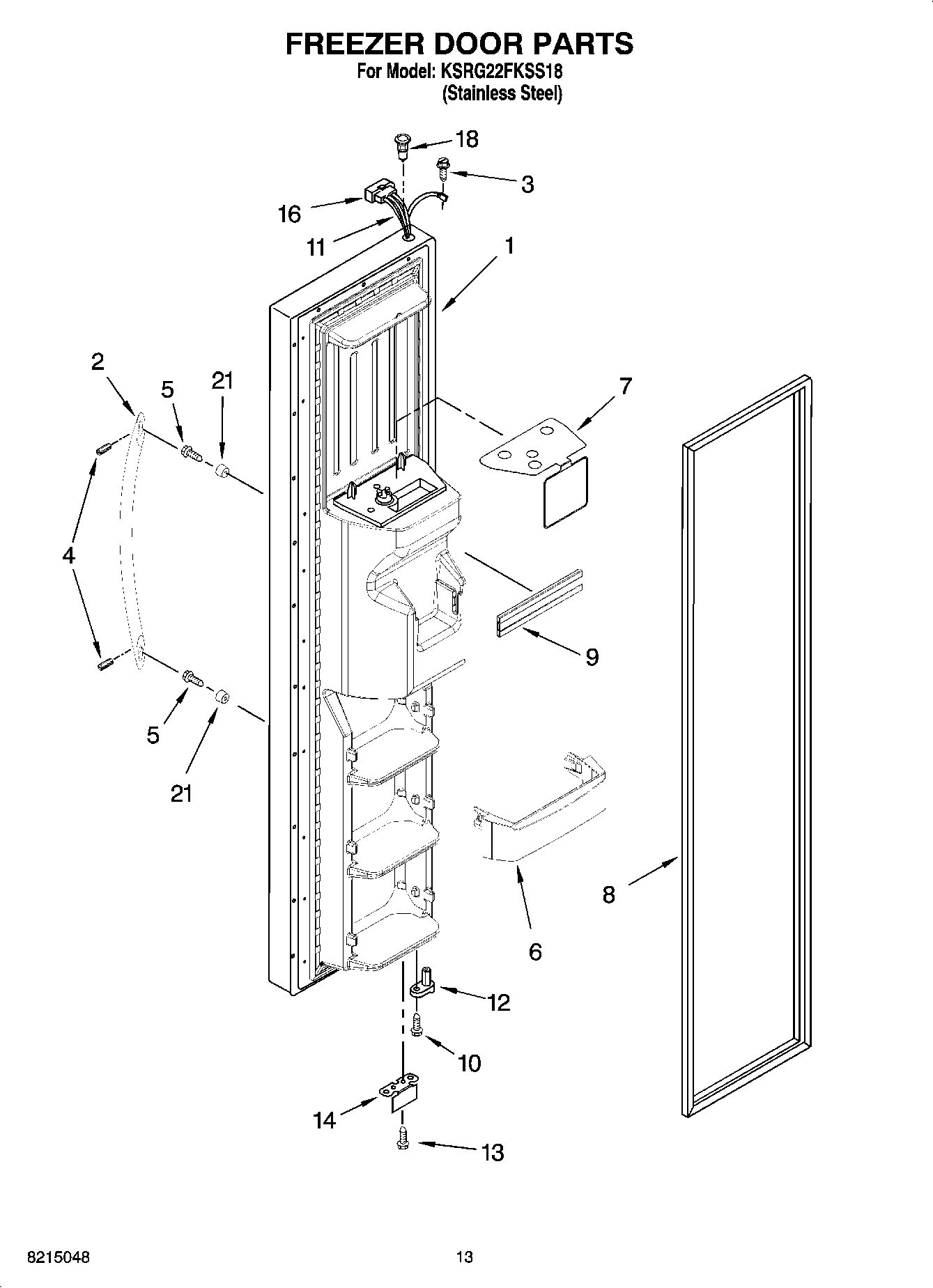

KSRG22FKSS18 08 – FREEZER DOOR PARTS

KSRG22FKSS18 08 – FREEZER DOOR PARTS

Written by

in

KSRG22FKSS18 08 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2Handle (Stainless Steel)
3WP489128 Whirlpool Refrigerator Screw
4SCREW
5WP488163 Whirlpool Refrigerator Screw
6Trivet, Shelf (3)
7Safety Barrier
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP3400012 Whirlpool Refrigerator Screw
11Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
16WP2154473 Whirlpool Refrigerator Connector
18Thimble, Top (For Stainless Steel Models)
21WPW10170540 Whirlpool Screw
