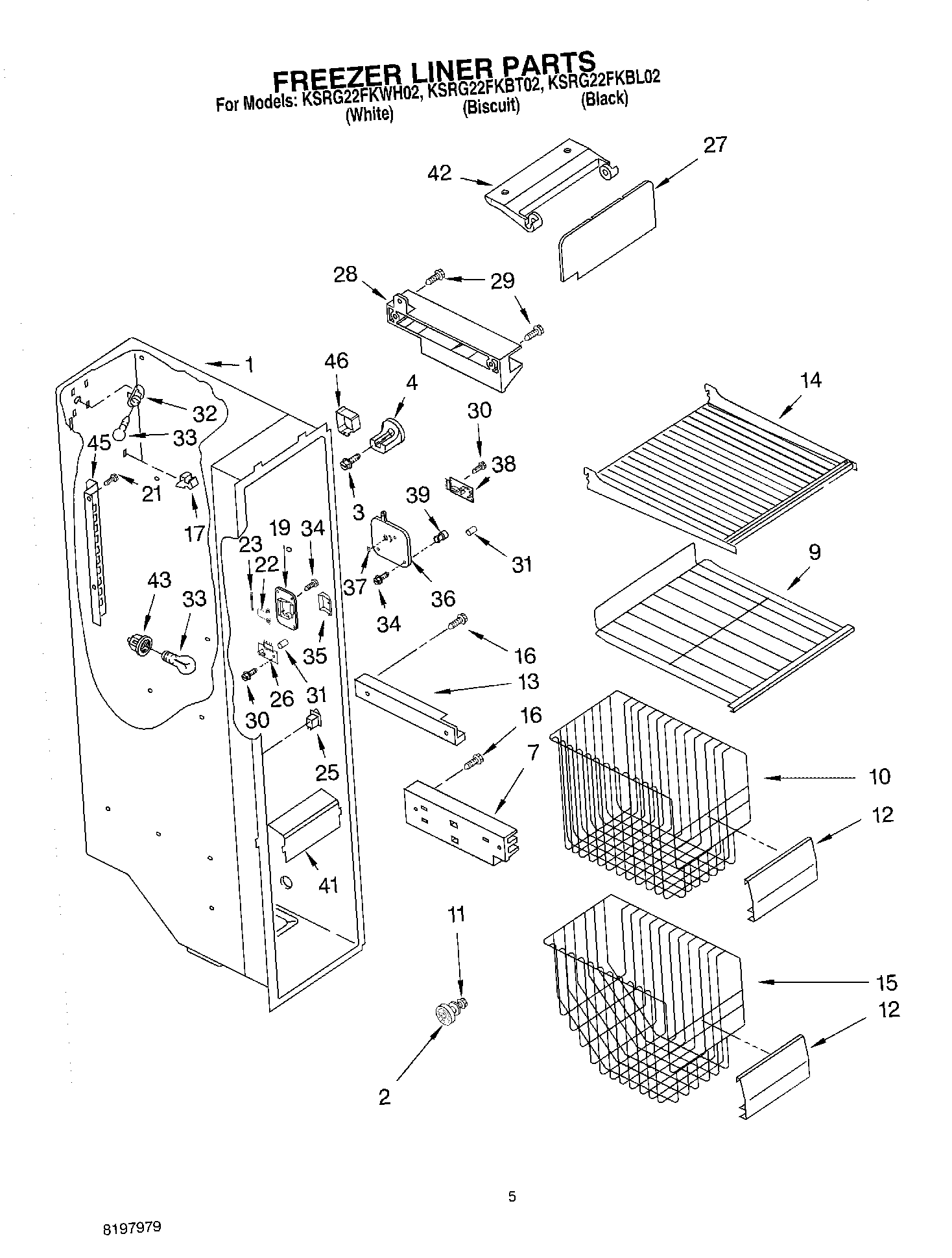

KSRG22FKWH02 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	W11223328 Whirlpool Refrigerator Shelf Stud
3	W10142289 Whirlpool Air Conditioner Screw
4	Stud, Rear
7	Track, Basket-Dual (Right)
7	Track, Basket-Dual (Left)
9	Shelf, Slide Out
10	Basket, Tall
11	WP3-24004-109 Whirlpool Refrigerator Screw
12	Basket, Front
13	Slide, Basket (Right Side (2))
13	Slide, Basket (Left Side (2))
14	Shelf
15	Freezer Bin
16	W10759522 Whirlpool Screw
17	2215823 Whirlpool Refrigerator Clip
19	WP2198587 Whirlpool Refrigerator Cover
21	WP488729 Whirlpool Refrigerator Door Screw
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	W10180062 Whirlpool Refrigerator Ice Door
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
31	Tube, P.C. Board
32	4387478 Whirlpool Refrigerator Light Socket
33	RANGE ONLY 40W 120V APPL BULB
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	2315398 Whirlpool Refrigerator Slide
38	W11629974-includeCORE Whirlpool W11629974 Refrigerator Electronic Control Board
39	WP2198643 Whirlpool Refrigerator Lens
41	2212376 Whirlpool Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
45	Ladder (Left Side)
45	Ladder (Right Side)
46	Shield, Wiring
