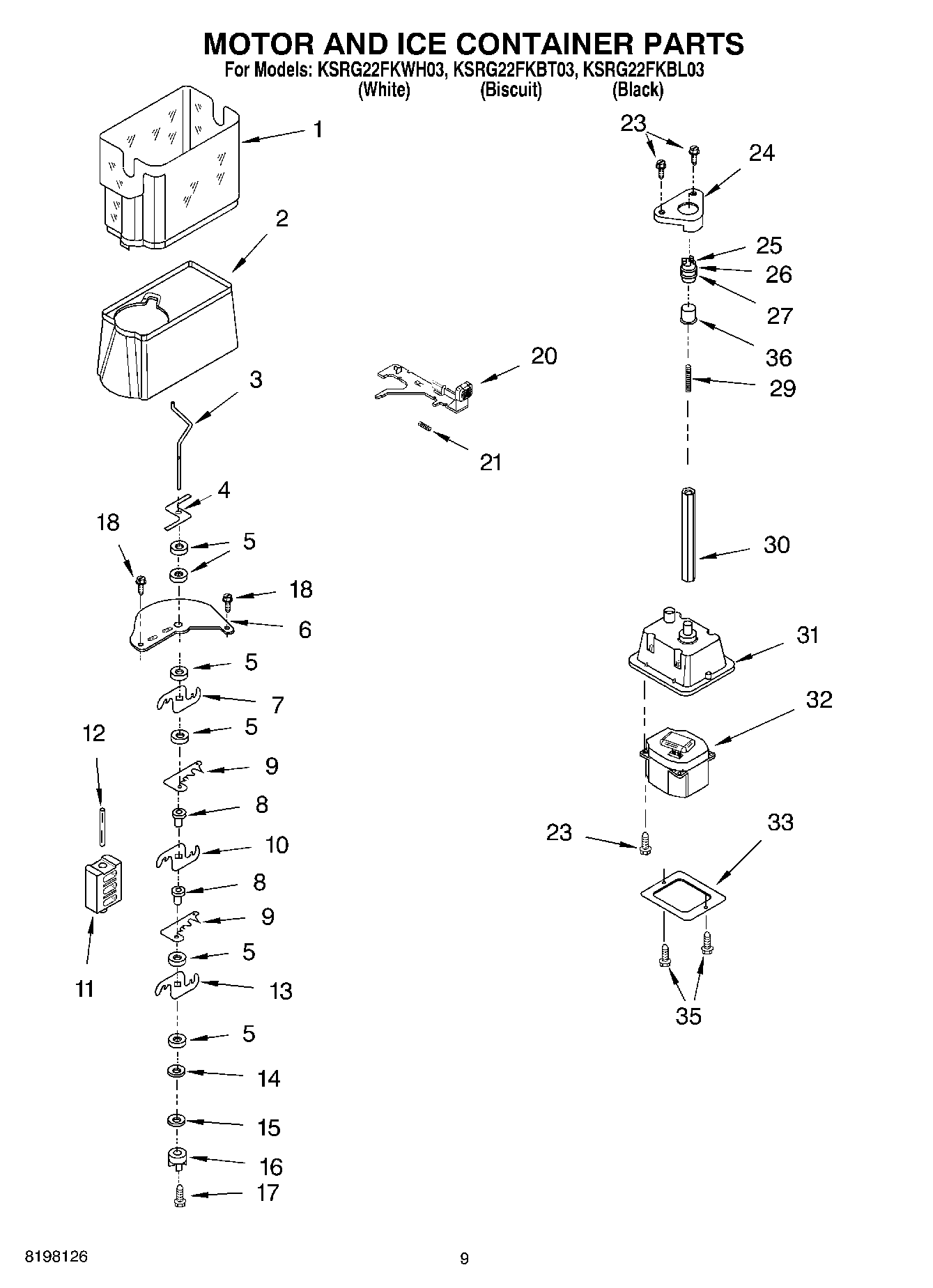

KSRG22FKWH03 06 – MOTOR AND ICE CONTAINERadmin2025-04-26T12:20:57+00:00KSRG22FKWH03 06 – MOTOR AND ICE CONTAINER ProductsPositionProduct1Ice Bin2Crusher Bin3Auger4BLade, Stirring5WP1119007 Whirlpool Refrigerator Spacer6Cover, Crusher7W10278733 Whirlpool Refrigerator Blade8WP1119005 Whirlpool Refrigerator Spacer9Blade, Fixed10W10278732 Whirlpool Refrigerator Blade11Block, Blade12489229 Whirlpool Refrigerator Roll Pin13W10278731 Whirlpool Refrigerator Blade14WP489235 Whirlpool Refrigerator Washer15WP2198661 Whirlpool Refrigerator Washer16WP2220457 Whirlpool Refrigerator Ice Bin Coupling17WP8281164 Whirlpool Refrigerator Screw18WP3400065 Whirlpool Refrigerator Screw20Latch, Bin21WP2198608 Whirlpool Refrigerator Spring23WP8281163 Whirlpool Refrigerator Screw24Holder25WP2220458 Whirlpool Drive Cam26WP2198628 Whirlpool Door Seal27WP2212370 Whirlpool Washer29W10852956 Whirlpool Refrigerator Spring30WP2188917 Whirlpool Drive Shaft31Enclosure, Motor32WP2212363 Whirlpool Refrigerator Motor33Cover35WP489478 Whirlpool Refrigerator Screw36WP2212365 Whirlpool Refrigerator Sleeve
