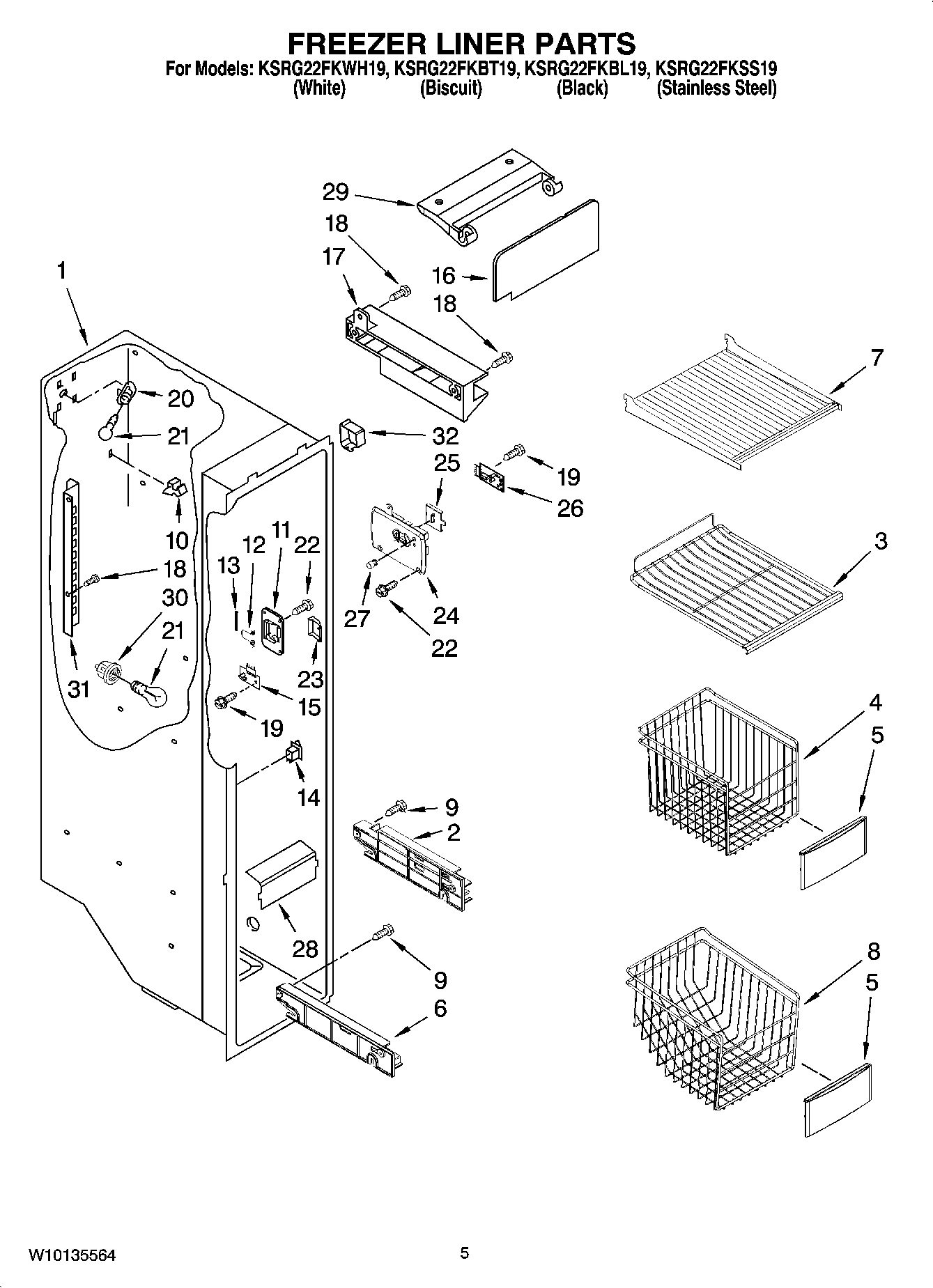

KSRG22FKWH19 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	2301292 Whirlpool Refrigerator Track
2	2301291 Whirlpool Refrigerator Track
3	Shelf, Slide Out Lower (2)
4	Basket, Tall
5	Basket Front
6	Shelf Track (Left Side)
6	Shelf Track (Right Side)
7	Shelf (2)
8	Basket, Slope
9	W10759522 Whirlpool Screw
10	2215823 Whirlpool Refrigerator Clip
11	WP2198587 Whirlpool Refrigerator Cover
12	WP2198635 Whirlpool Refrigerator Spring
13	WP2198634 Whirlpool Door Pin
14	W11457217 Whirlpool Refrigerator Rocker Switch Combination
15	W10757851-includeCORE Whirlpool Electronic Control+Core
16	Cover, Icemaker
17	Slide, Ice Maker
18	WP489478 Whirlpool Refrigerator Screw
19	2006254 Whirlpool Refrigerator Screw
20	4387478 Whirlpool Refrigerator Light Socket
21	RANGE ONLY 40W 120V APPL BULB
22	WPW10142283 Whirlpool Refrigerator Screw
23	WP2198633 Whirlpool Refrigerator Flipper
24	Cover, Receiver
25	Slide, Ice Maker Shut Off
27	WP2198643 Whirlpool Refrigerator Lens
28	2212376 Whirlpool Light Lens
29	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
30	SOCKET
31	Ladder (Right Side)
31	Ladder (Left Side)
32	2303234 Whirlpool Refrigerator Shield
