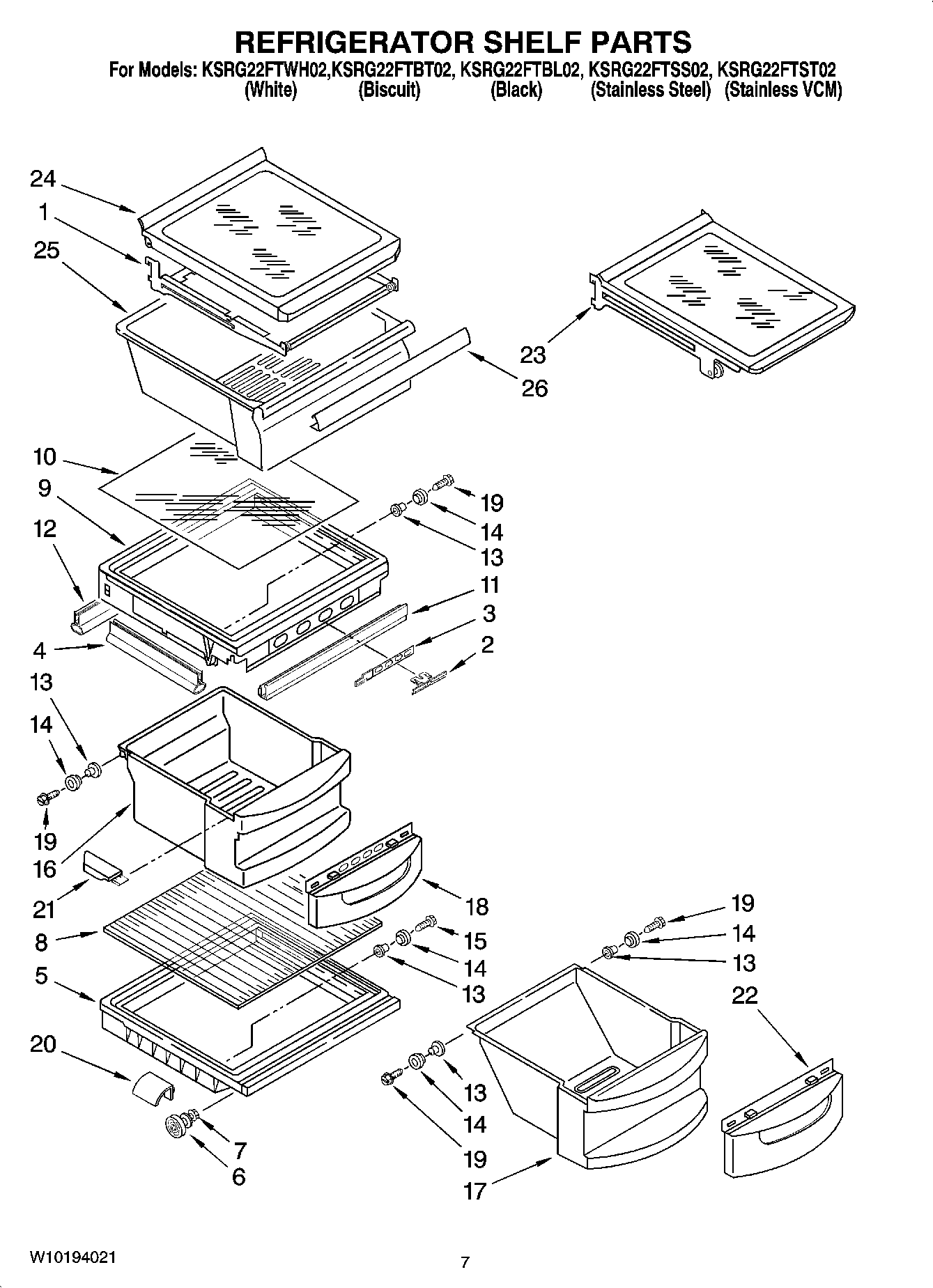

KSRG22FTSS02 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	W11223328 Whirlpool Refrigerator Shelf Stud
7	WP3-24004-109 Whirlpool Refrigerator Screw
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	Crisper Pan (Includes 13, 14 18, 19 & 21)
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
23	Shelf, Snack Pan
24	Shelf & Roller Assembly
25	Snack Bin (Includes 30)
26	WP2179243 Whirlpool Refrigerator Pan Trim
