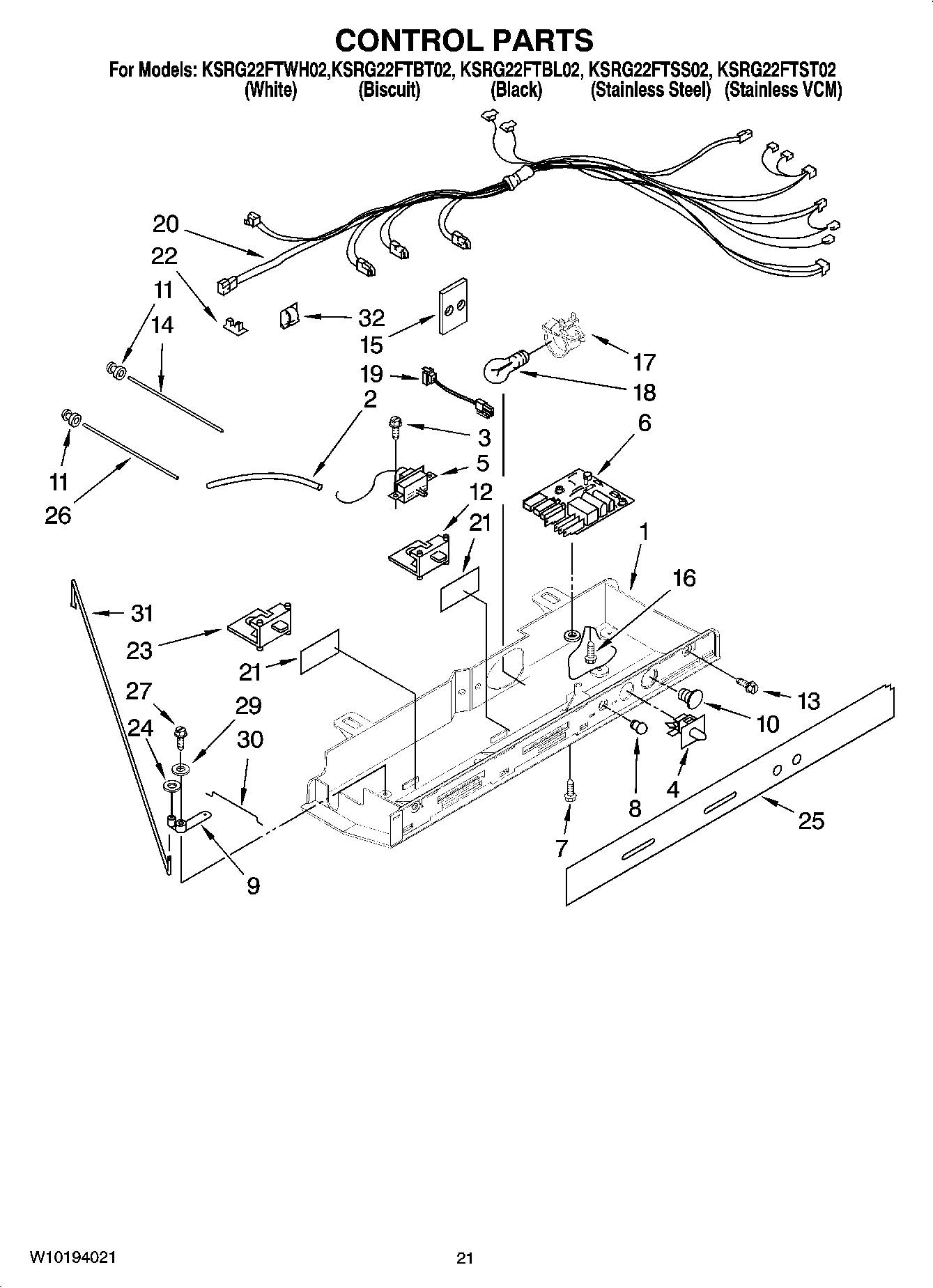

KSRG22FTSS02 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSRG22FTSS02 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSRG22FTSS02 12 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL ARI96856A6
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 8201806
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI96855A6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI96854A2
WPL ARI96857A9
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
WP505587 Whirlpool Refrigerator Sealer
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2315562 Whirlpool Refrigerator Thermostat
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7489392 Whirlpool Refrigerator Screw
8COVER, LIGHT LENS
92161306 Whirlpool Refrigerator Arm Pivot
10940014 Whirlpool Refrigerator Primary Button Plug
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
152172931 Whirlpool Refrigerator Shield
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
18RANGE ONLY 40W 120V APPL BULB
19W10853646 Whirlpool Indicator Light
202311632 Whirlpool Refrigerator Wire Harness
21Window
22CLIP, WIRING
232181741 Whirlpool Refrigerator Slide
24Fastener, Push-On
25Escutcheon, Control Box
26Light Bar (FC)
27627068 Whirlpool Refrigerator Screw
29489203 Whirlpool Refrigerator Washer
302161307 Whirlpool Refrigerator Rod
312161308 Whirlpool Refrigerator Rod
32WP1115374 Whirlpool Refrigerator Clip
