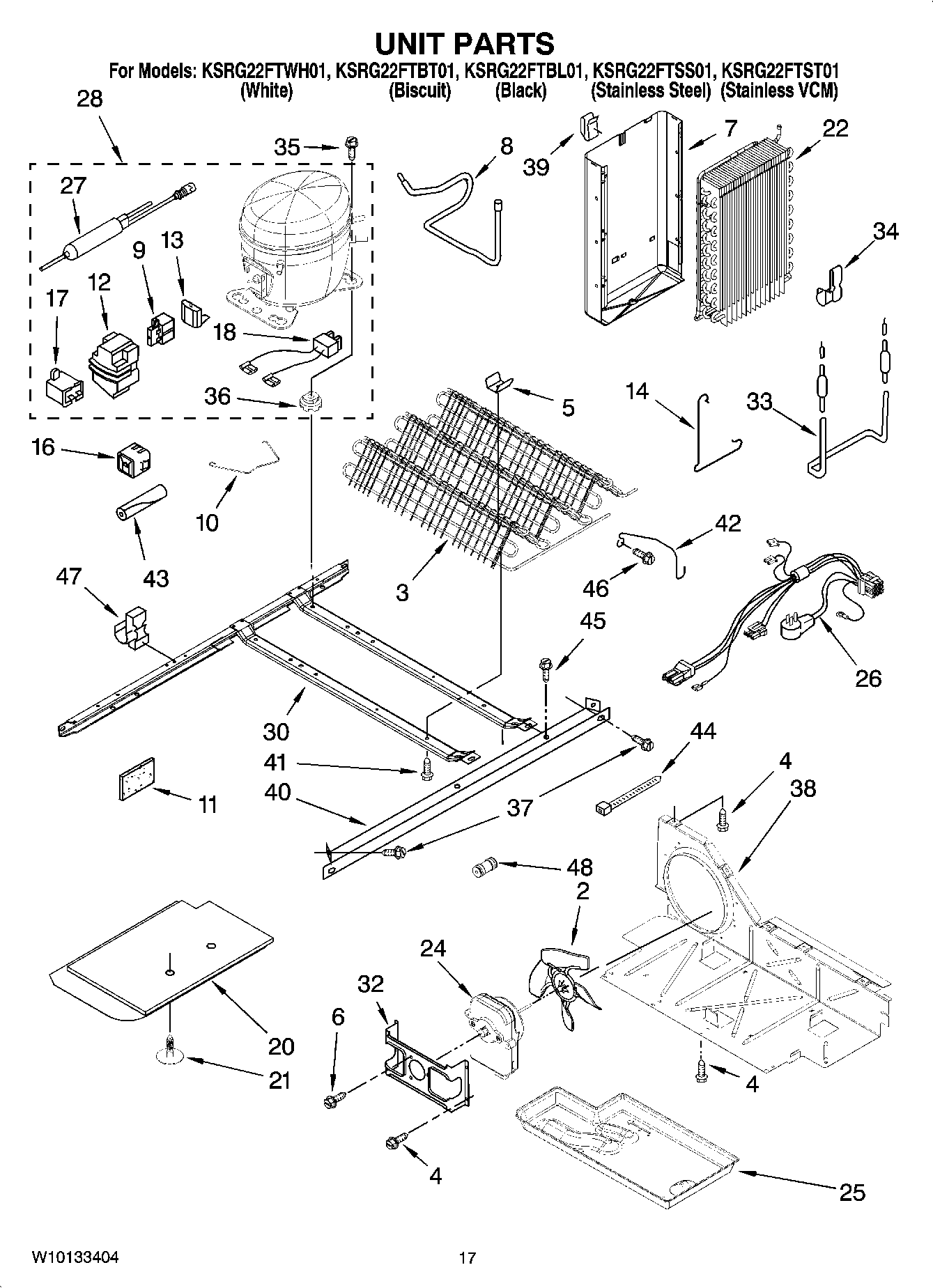

KSRG22FTST01 10 – UNIT PARTS

Products

Position	Product
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	2217195 Whirlpool Refrigerator Shield
8	2205764 Whirlpool Refrigerator Tube
9	W10920279 Whirlpool Refrigerator Start Relay
10	2223314 Whirlpool Refrigerator Clip
11	W11553819 Whirlpool Refrigerator Insulation
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	Clamp
16	W10896198 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WP2172890 Whirlpool Refrigerator Wire
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10139462 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	876811 Whirlpool Grommet
37	489340 Whirlpool Refrigerator Screw
38	W10896764 Whirlpool Refrigerator Air Baffle
39	Clip, Heat Shield
40	Unit Mounting Rail
41	W11544659 Whirlpool Refrigerator Screw
42	Guard, Fan
43	SLEEVE
44	WPW10339879 Whirlpool Wire Tie
45	WP489427 Whirlpool Refrigerator Screw
46	WP489478 Whirlpool Refrigerator Screw
47	Clip, Wire & Tube
48	Following Parts Not Illustrated and Optional Parts Not Included
48	VALVE, ACCESS (5/8“)
48	876764 Whirlpool Refrigerator Primary Valve
48	978027 Whirlpool Refrigerator Primary Valve
48	978030 Whirlpool Refrigerator Valve
48	WP978025 Whirlpool Refrigerator Valve
48	VALVE, ACCESS (1/2“)
48	978026 Whirlpool Refrigerator Primary Valve
48	WP4373559 Whirlpool Fitting
48	REFRIGERANT CHARGE 5.0 oz. (R-134)
