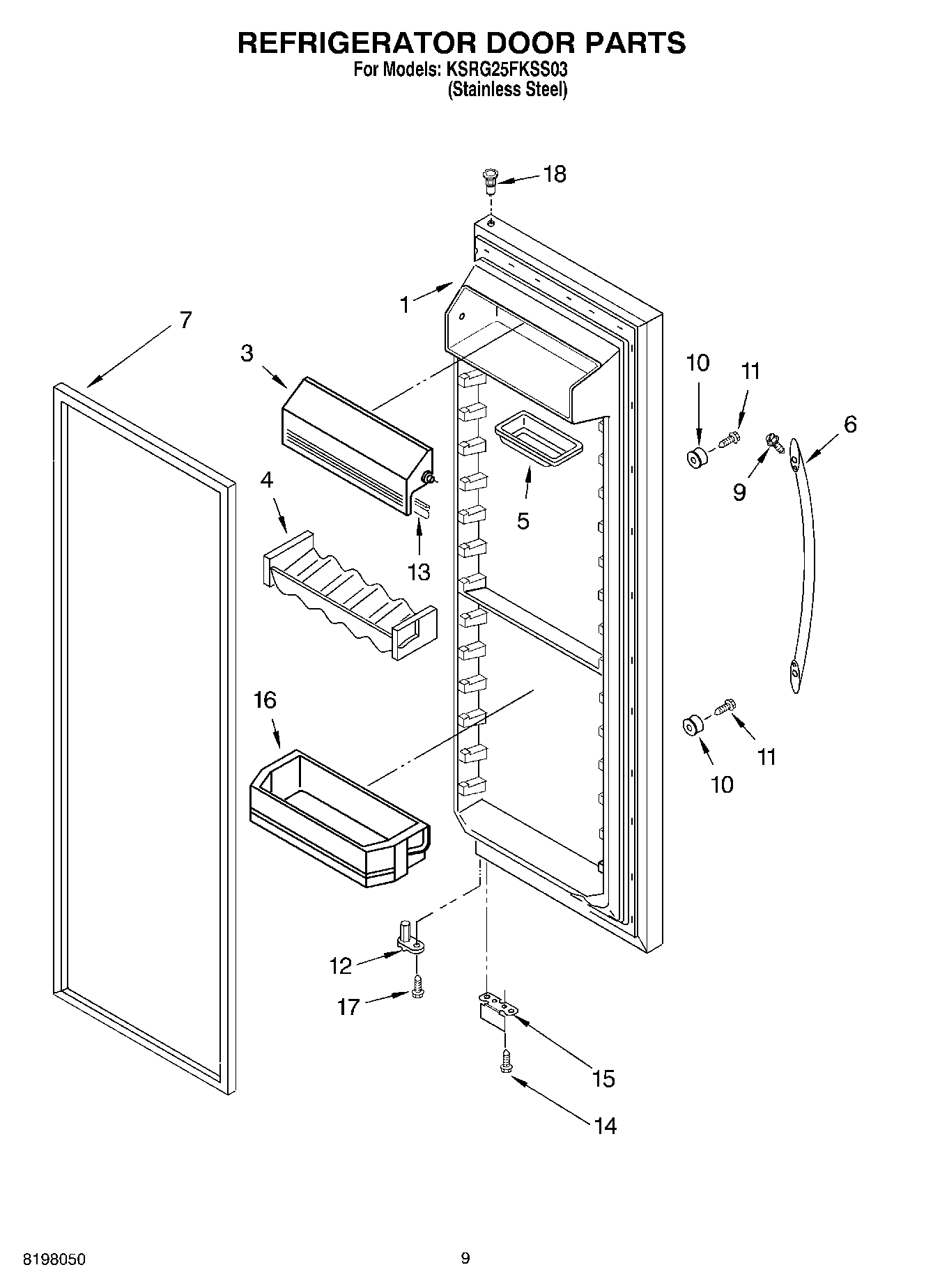

KSRG25FKSS03 06 – REFRIGERATOR DOOR

KSRG25FKSS03 06 – REFRIGERATOR DOOR

Written by

in

KSRG25FKSS03 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes 7) (Stainless Steel)
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Handle (Stainless Steel)
72159083 Whirlpool Gasket Door
9Setscrew, 10-32
10Stud, Handle
11WP489463 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
