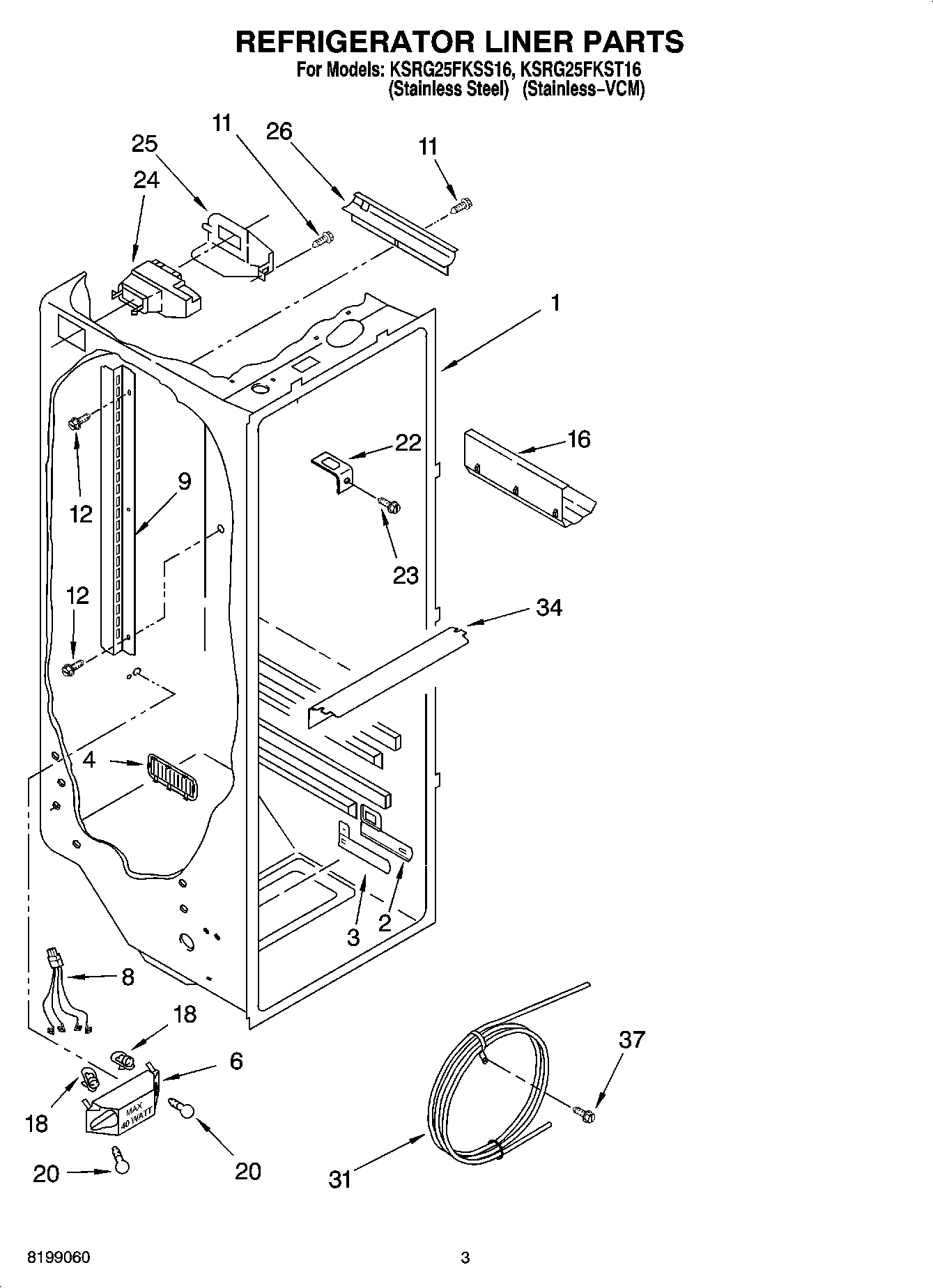

KSRG25FKSS16 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Escutcheon, Meat Pan Control
3Slide Meat Pan Control
4Louver
6Bracket, Dual Crisper Light
82311637 Whirlpool Refrigerator Wire Harness
9Ladder, Shelf
11W10759522 Whirlpool Screw
12WP489478 Whirlpool Refrigerator Screw
16W10777924 Whirlpool Refrigerator Wine Rack
184387478 Whirlpool Refrigerator Light Socket
20RANGE ONLY 40W 120V APPL BULB
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151375 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
31WP2256126 Whirlpool Refrigerator Reservoir
34Light Lens
37Screw (2)
