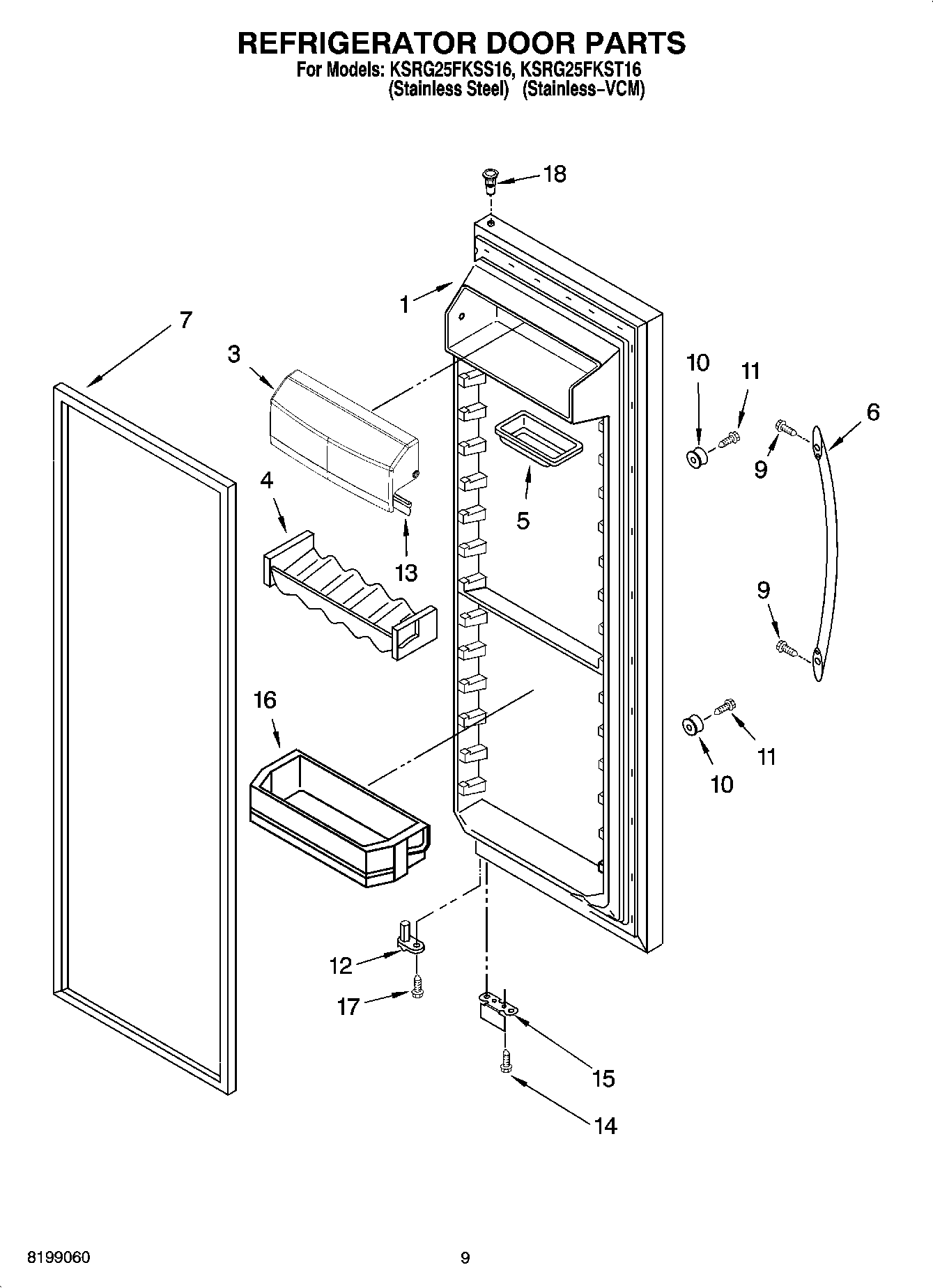

KSRG25FKSS16 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Stainless Steel)
1Refrigerator Door (Includes 7) (Stainless-VCM)
3Door, Compartment
4Beverage Holder
5Butter Tray
6Handle (Stainless Steel)
72159083 Whirlpool Gasket Door
9Screw
10WPW10170540 Whirlpool Screw
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15WP2206629B Whirlpool Refrigerator Bracket
16Bin, Door Shelf
17WP3400012 Whirlpool Refrigerator Screw
18WP2182181 Whirlpool Refrigerator Thimble
18Thimble, Top (For Stainless Steel Models)
