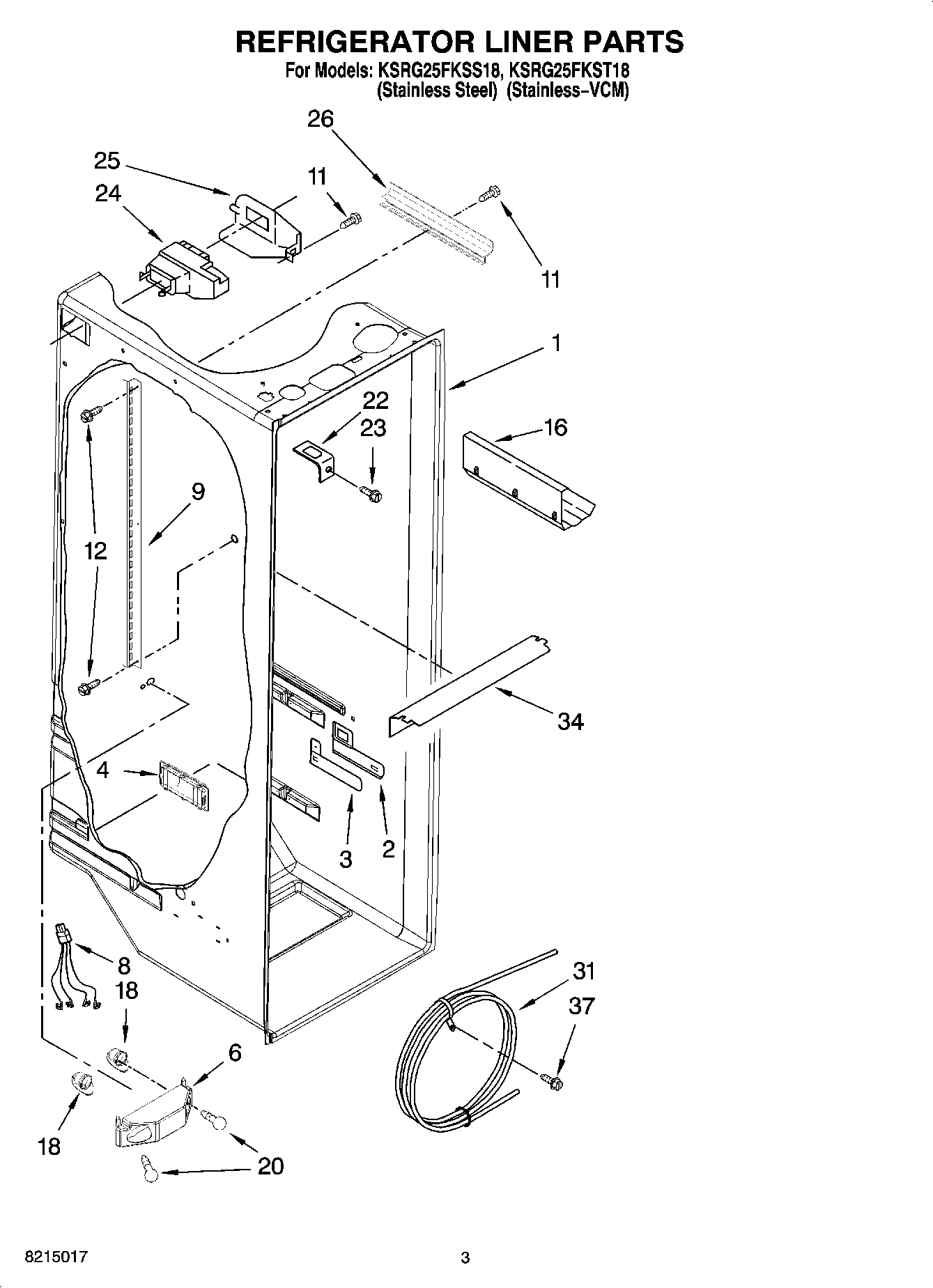

KSRG25FKSS18 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
6	Bracket, Dual Crisper Light
8	2311637 Whirlpool Refrigerator Wire Harness
9	Shelf Ladder
11	W10759522 Whirlpool Screw
12	WP489478 Whirlpool Refrigerator Screw
16	W10777924 Whirlpool Refrigerator Wine Rack
18	4387478 Whirlpool Refrigerator Light Socket
20	RANGE ONLY 40W 120V APPL BULB
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151375 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
31	WP2256126 Whirlpool Refrigerator Reservoir
34	Light Lens
37	Screw (2)
