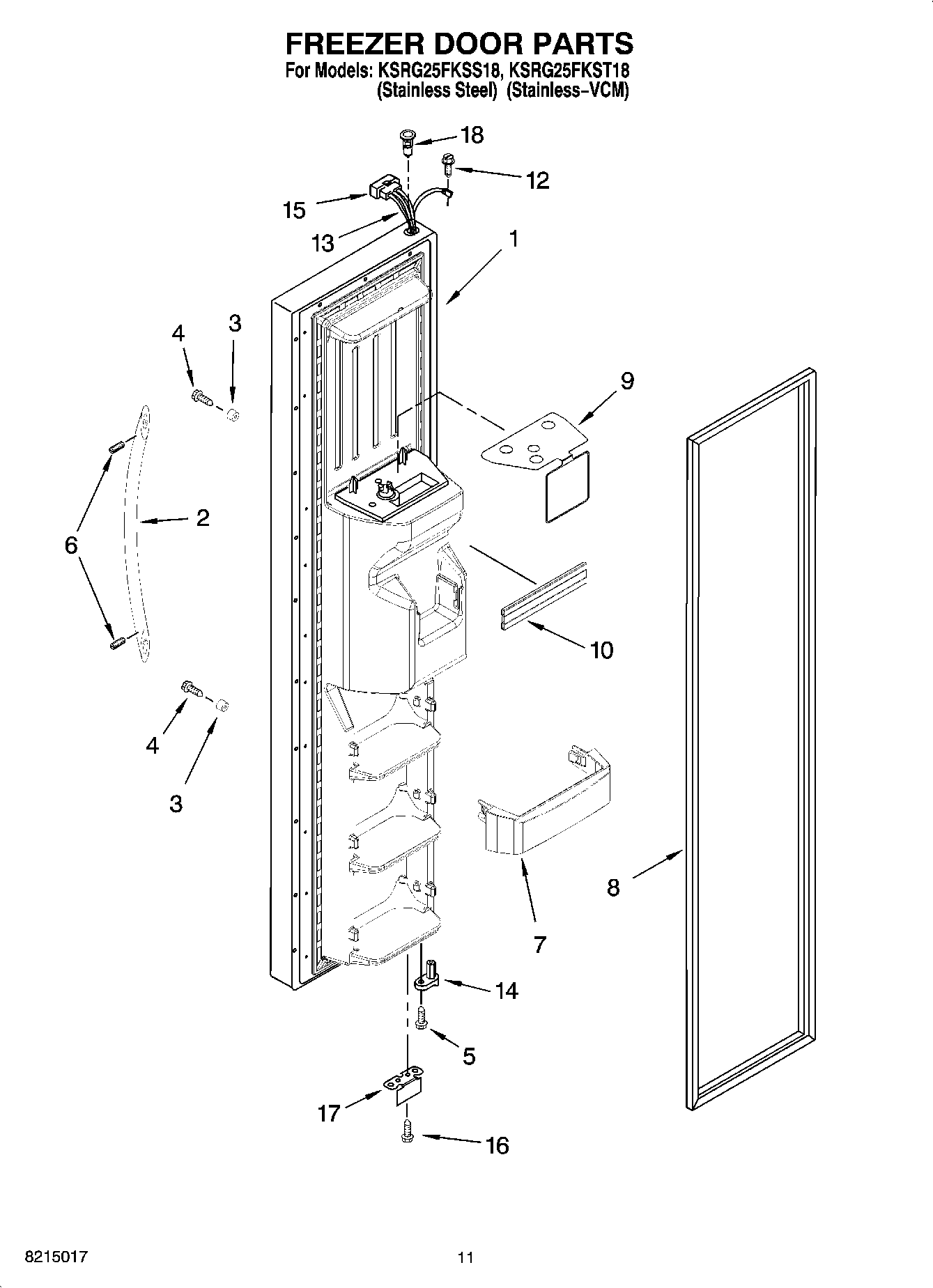

KSRG25FKST18 07 – FREEZER DOOR PARTS

KSRG25FKST18 07 – FREEZER DOOR PARTS

Written by

in

KSRG25FKST18 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless-VCM)
2Handle (Stainless Steel)
3WPW10170540 Whirlpool Screw
4WP488163 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6SCREW
7Shelf Bin (3)
82159082 Whirlpool Freezer Door Gasket Black
9Safety Barrier
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Dispenser Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17WP2206629B Whirlpool Refrigerator Bracket
18WP2182181 Whirlpool Refrigerator Thimble
18Thimble, Top (For Stainless Steel Models)
