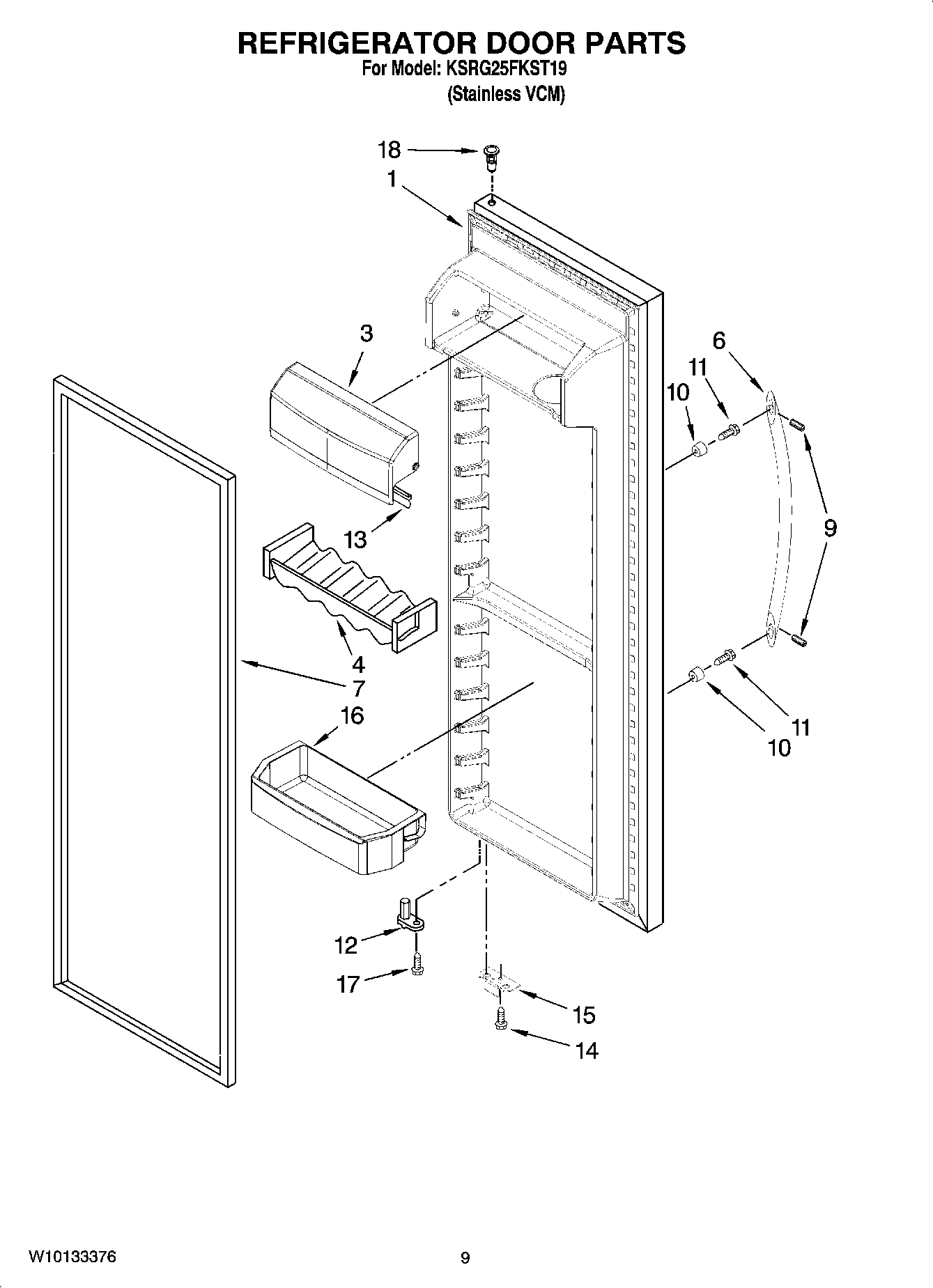

KSRG25FKST19 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (Stainless-VCM)
3	Door, Compartment
4	Beverage Holder
6	Handle (Stainless Steel)
7	2159083 Whirlpool Gasket Door
9	SCREW
10	WPW10170540 Whirlpool Screw
11	WP488163 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	WP2206629B Whirlpool Refrigerator Bracket
16	Door Bin (4)
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2182181 Whirlpool Refrigerator Thimble
