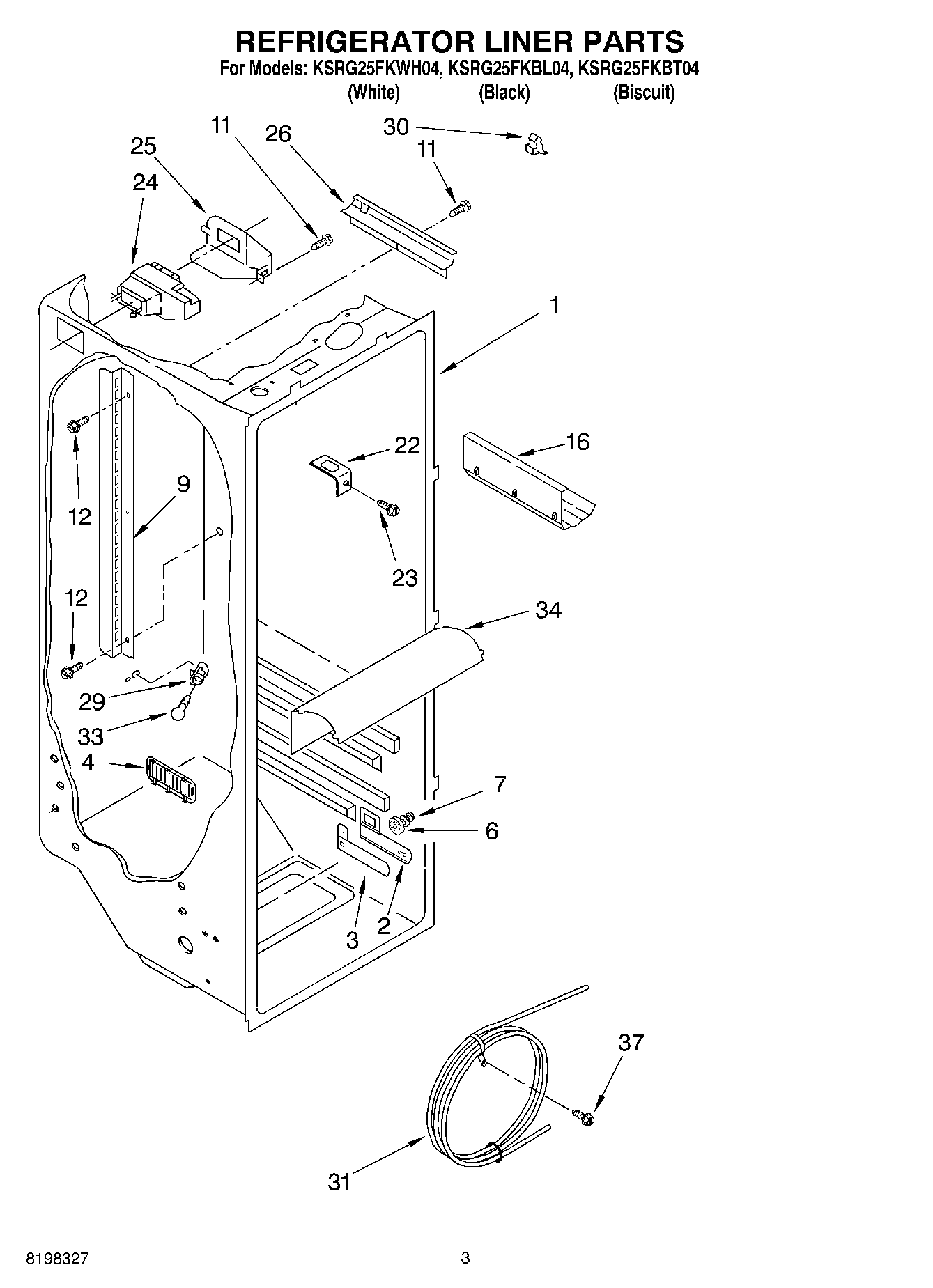

KSRG25FKWH04 02 – REFRIGERATOR LINER

KSRG25FKWH04 02 – REFRIGERATOR LINER

Written by

in

KSRG25FKWH04 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6W11223328 Whirlpool Refrigerator Shelf Stud
7WP3-24004-109 Whirlpool Refrigerator Screw
9Ladder, Shelf
11W10759522 Whirlpool Screw
12WP488729 Whirlpool Refrigerator Door Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WPW10151375 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
