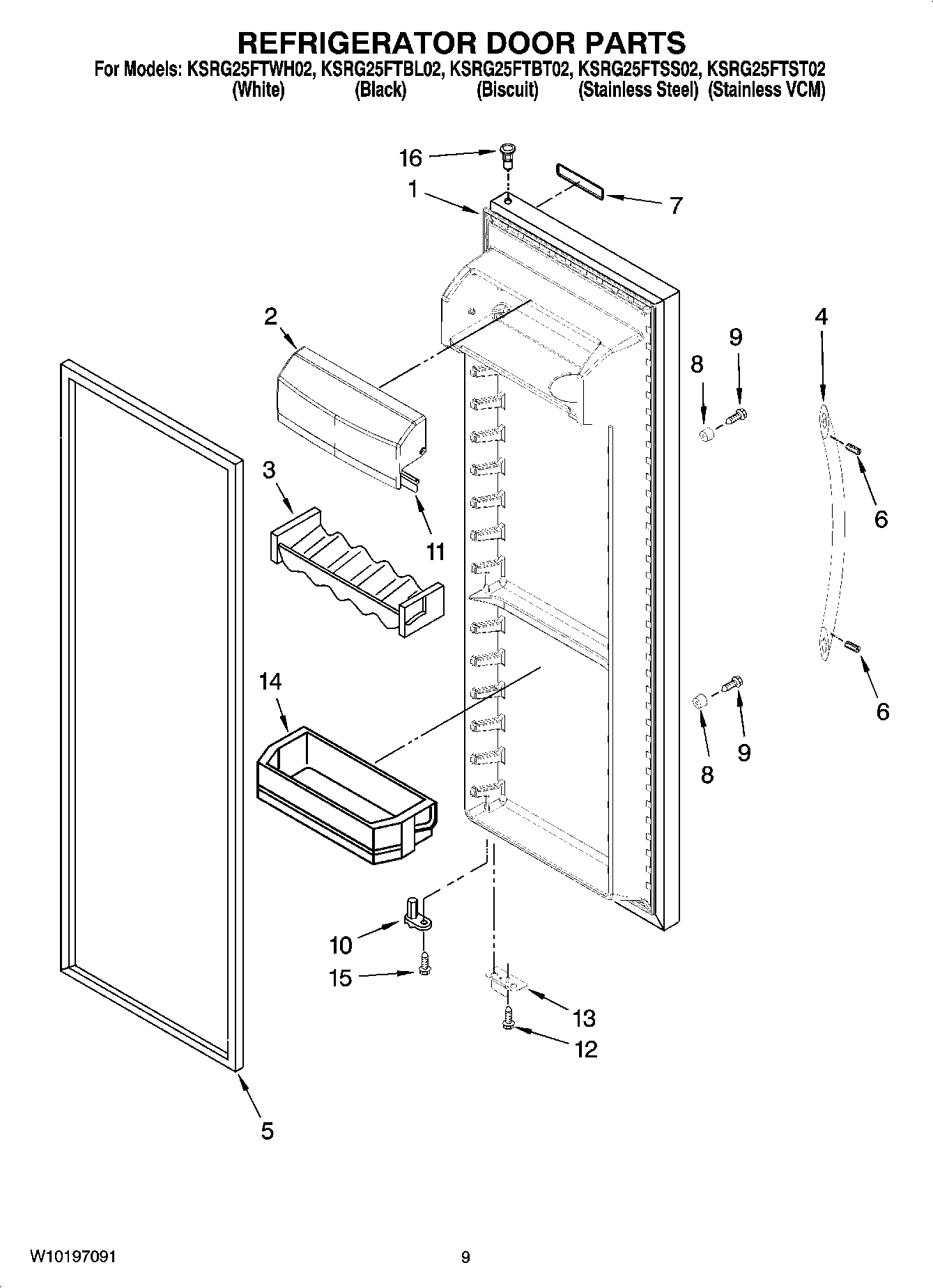

KSRG25FTBL02 06 – REFRIGERATOR DOOR PARTS

KSRG25FTBL02 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRG25FTBL02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Stainless Steel)
1Refrigerator Door (Includes 7) (Stainless-VCM)
1Refrigerator Door (Includes 7) (Black)
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Biscuit)
2Door, Compartment
3Beverage Holder
4Handle (Includes 4) (Biscuit)
4Handle, Door (Stainless Steel)
4WP2319727W Whirlpool Refrigerator Handle
4WP2319727B Whirlpool Refrigerator Handle
52159075 Whirlpool Door Gasket Seal
52159083 Whirlpool Gasket Door
6SCREW
6WPW10010150 Whirlpool Refrigerator Screw
7Nameplate (Biscuit)
7NAMEPLATE
7WPW10243392 Whirlpool Dishwasher Nameplate
7WPW10243393 Whirlpool Dishwasher Nameplate
8WPW10170540 Whirlpool Screw
9WP488163 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11Gasket, Door Compartment
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14Door Bin (4)
15WP3400012 Whirlpool Refrigerator Screw
16WP2182181 Whirlpool Refrigerator Thimble
16Thimble, Top (For Stainless Steel Models)
