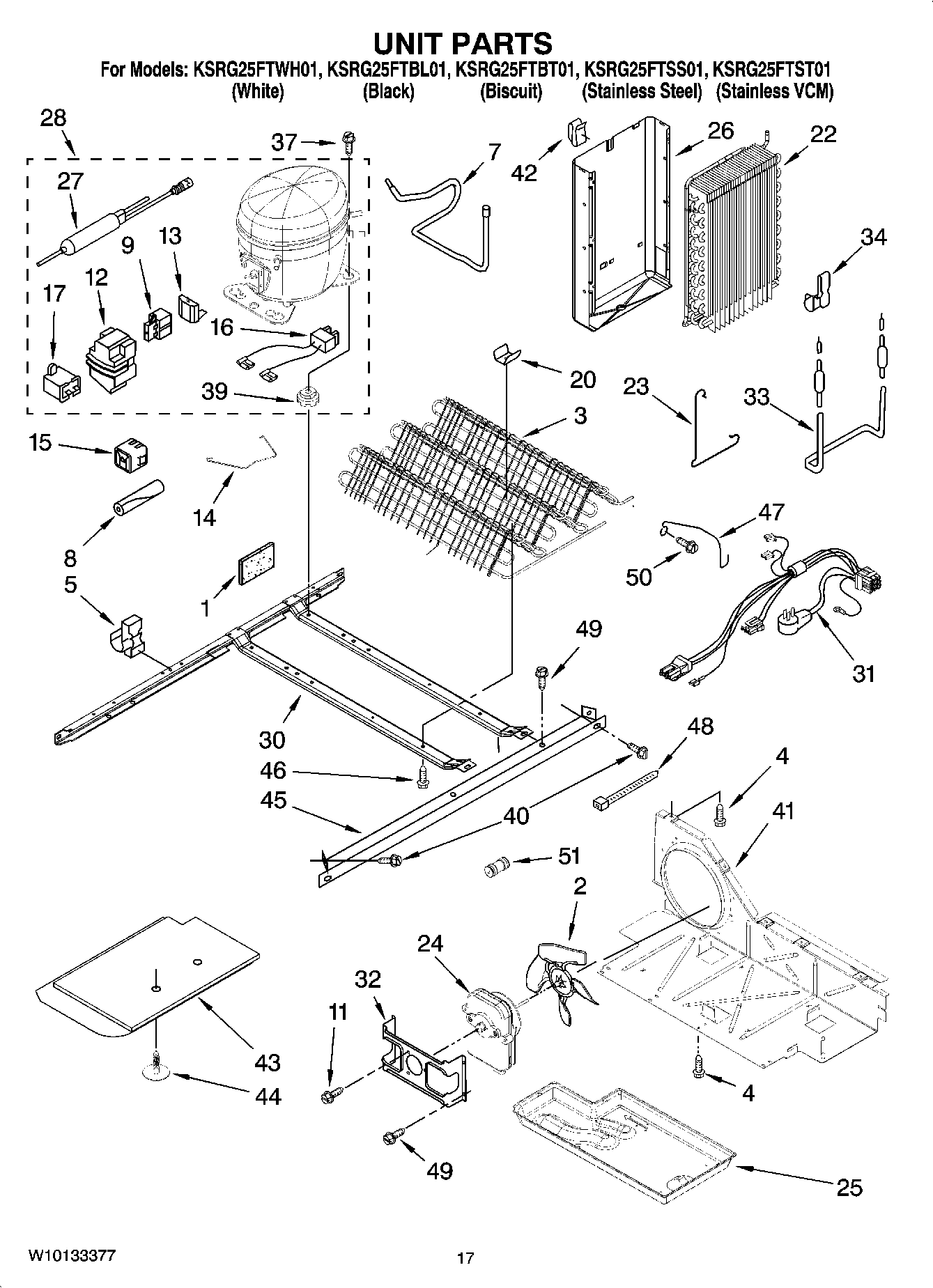

KSRG25FTWH01 11 – UNIT PARTSadmin2025-04-26T11:54:44+00:00KSRG25FTWH01 11 – UNIT PARTS ProductsPositionProduct1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube7WP2205765 Whirlpool Refrigerator Tube8SLEEVE9W10920279 Whirlpool Refrigerator Start Relay11WP8533993 Whirlpool Refrigerator Screw12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2154697 Whirlpool Refrigerator Overload142223314 Whirlpool Refrigerator Clip15WP2304885 Whirlpool Refrigerator Start Device16WP2172890 Whirlpool Refrigerator Wire17WPW10662129 Whirlpool Refrigerator Run Capacitor20W10683556 Whirlpool Refrigerator Clip22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24WP2188874 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27WPW10143759 Whirlpool Dryer Filter28W10139460 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly31WPW10309395 Whirlpool Refrigerator Wire Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39876811 Whirlpool Grommet39WP4387558 Whirlpool Refrigerator Compressor Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip452305374 Whirlpool Refrigerator Unit Rail46W11544659 Whirlpool Refrigerator Screw472260517 Whirlpool Fan Guard48WPW10339879 Whirlpool Wire Tie49WP489427 Whirlpool Refrigerator Screw50WPW10141625 Whirlpool Refrigerator Screw Assembly51VALVE, ACCESS (5/8``)51Following Parts Not Illustrated and Optional Parts Not Included51876764 Whirlpool Refrigerator Primary Valve51WP4373559 Whirlpool Fitting51978026 Whirlpool Refrigerator Primary Valve51978030 Whirlpool Refrigerator Valve51WP978025 Whirlpool Refrigerator Valve51VALVE, ACCESS (1/2``)51978027 Whirlpool Refrigerator Primary Valve51REFRIGERANT CHARGE 5.00 oz. (R-134A)
