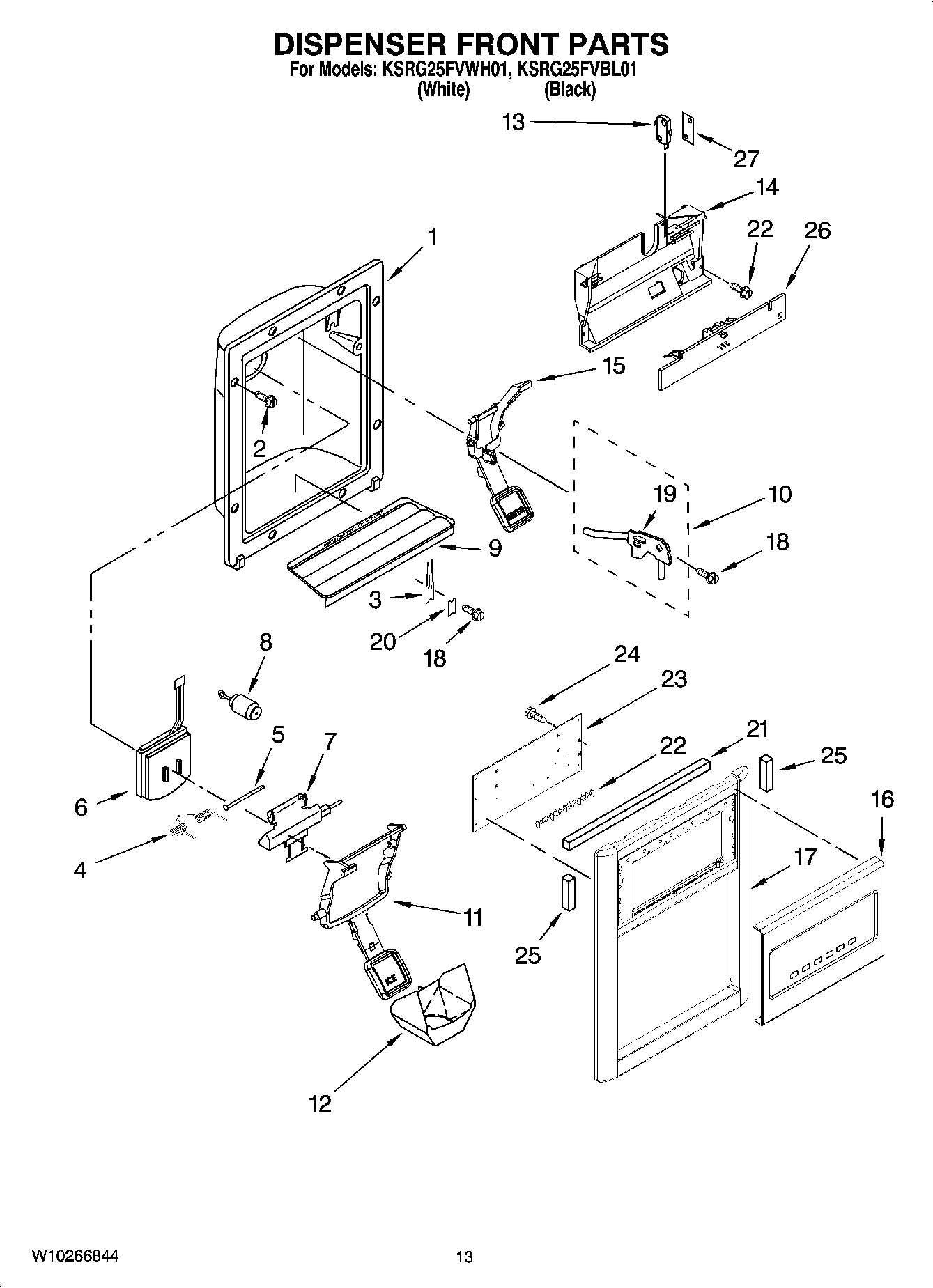

KSRG25FVBL01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	WP2162361 Whirlpool Switch
14	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
15	WPW10152859 Whirlpool Refrigerator Dispenser Arm
16	Fascia Assy (Black)
16	Fascia Assy (White)
17	Bezel, Disp (Black)
17	W10136850 Whirlpool Refrigerator Front Cover
18	WP3400906 Whirlpool Refrigerator Screw
19	WP2304673 Whirlpool Refrigerator Bracket
20	WP2195051 Whirlpool Refrigerator Clip
21	2305571 Whirlpool Gasket Assembly
22	Support, Window
23	Control Board
24	2006254 Whirlpool Refrigerator Screw
25	Gasket, Disp (2)
26	LED Assy
27	Spacer, Switch (2)
