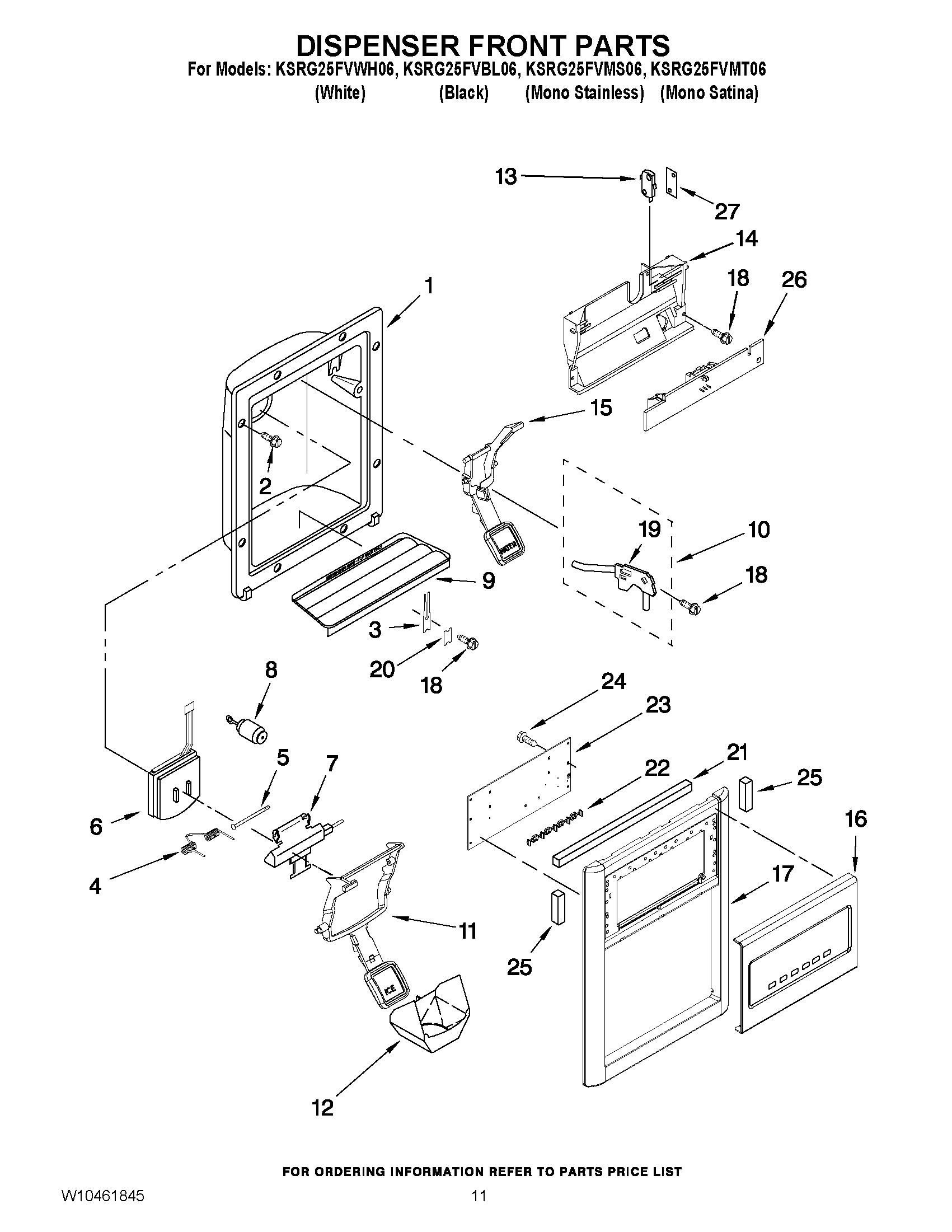

KSRG25FVBL06 07 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
11	Lever, Ice Dispenser (Apollo Gray)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	WP2162361 Whirlpool Switch
14	W10728484 Whirlpool Refrigerator Dispenser Control Bracket
15	Lever, Water Dispenser (Apollo Gray)
15	Lever, Water Dispenser (Apollo Grey)
15	WPW10152859 Whirlpool Refrigerator Dispenser Arm
15	WPW10152858 Whirlpool Refrigerator Dispenser Arm
16	Fascia Assy (Black)
16	FASCIA ASSY (NICKEL ONE)
16	Fascia Assy (White)
16	FASCIA ASSY (STAINLESS)
17	Bezel, Disp (Mono Satina (SS))
17	W10171988 Whirlpool Refrigerator Front Cover
17	W10136850 Whirlpool Refrigerator Front Cover
17	Bezel, Disp (Black)
18	WP3400906 Whirlpool Refrigerator Screw
19	WP2304673 Whirlpool Refrigerator Bracket
20	WP2195051 Whirlpool Refrigerator Clip
21	2305571 Whirlpool Gasket Assembly
22	Support, Window
23	Control Board
24	2006254 Whirlpool Refrigerator Screw
25	Gasket, Disp (2)
26	LED Assy
27	Spacer, Switch (2)
