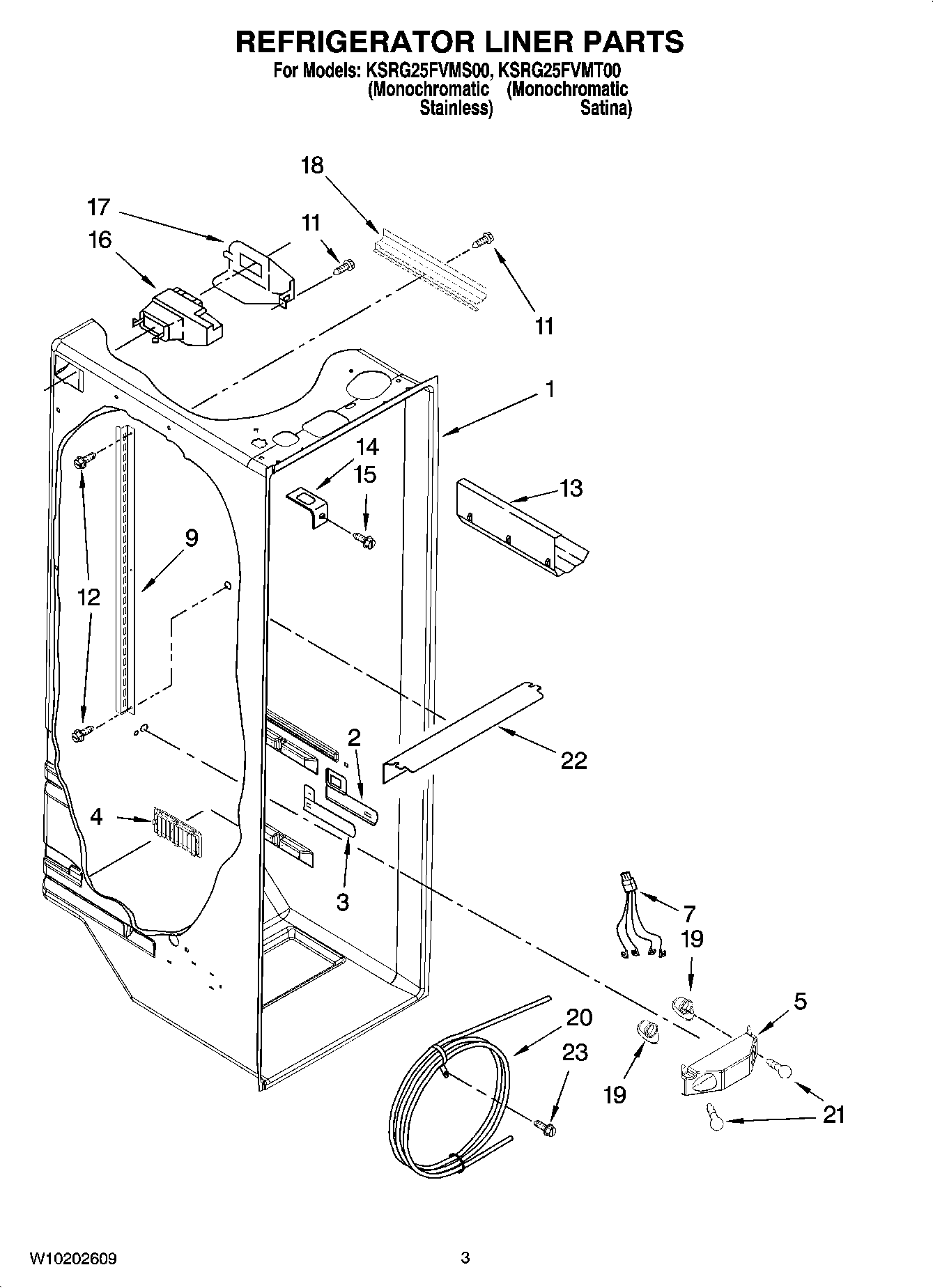

KSRG25FVMS00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	Bracket, Dual Crisper Light
7	2311637 Whirlpool Refrigerator Wire Harness
9	Shelf Ladder
11	W10759522 Whirlpool Screw
12	WP489478 Whirlpool Refrigerator Screw
13	W10777924 Whirlpool Refrigerator Wine Rack
14	WP2256085 Whirlpool Refrigerator Retainer
15	WP488488 Whirlpool Refrigerator Screw
16	WPW10151374 Whirlpool Refrigerator Diffuser
17	2152019 Whirlpool Refrigerator Cover
18	2150331 Whirlpool Refrigerator Wire Cover
19	4387478 Whirlpool Refrigerator Light Socket
20	RESERVOIR
21	RANGE ONLY 40W 120V APPL BULB
22	Light Lens
23	Screw (2)
