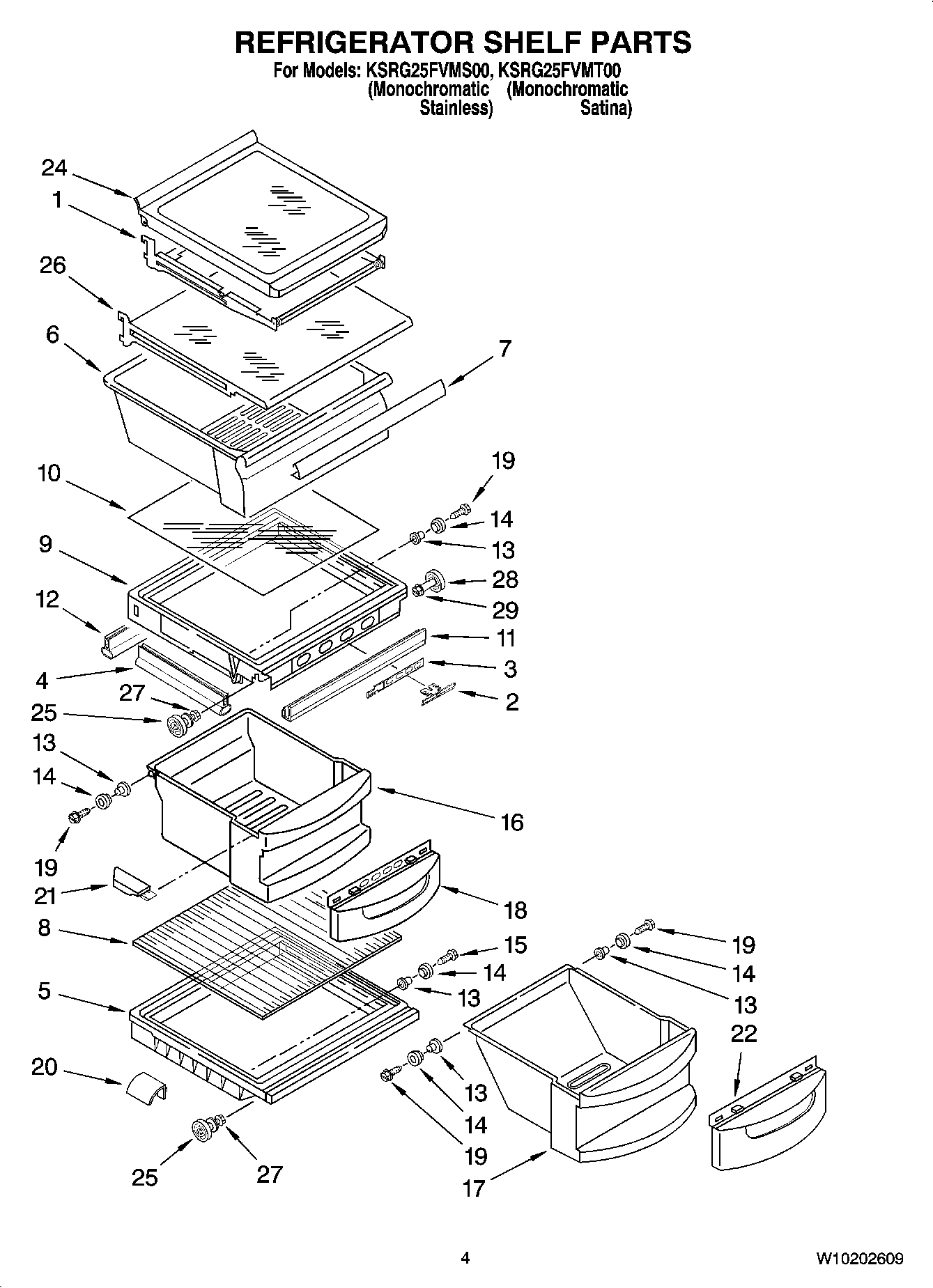

KSRG25FVMS00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	W11497323 Whirlpool Snack Pan
7	WP2179243 Whirlpool Refrigerator Pan Trim
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	CRISPER PAN (INCLUDES 13, 14,18,19 & 21)
17	MEAT PAN (INCLUDES 13, 14,19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
24	Shelf & Roller Assembly
25	W11223328 Whirlpool Refrigerator Shelf Stud
26	Shelf, Snack Bin
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
