KSRG25FVMS00 06 – REFRIGERATOR DOOR PARTS

KSRG25FVMS00 06 – REFRIGERATOR DOOR PARTS

Written by

in

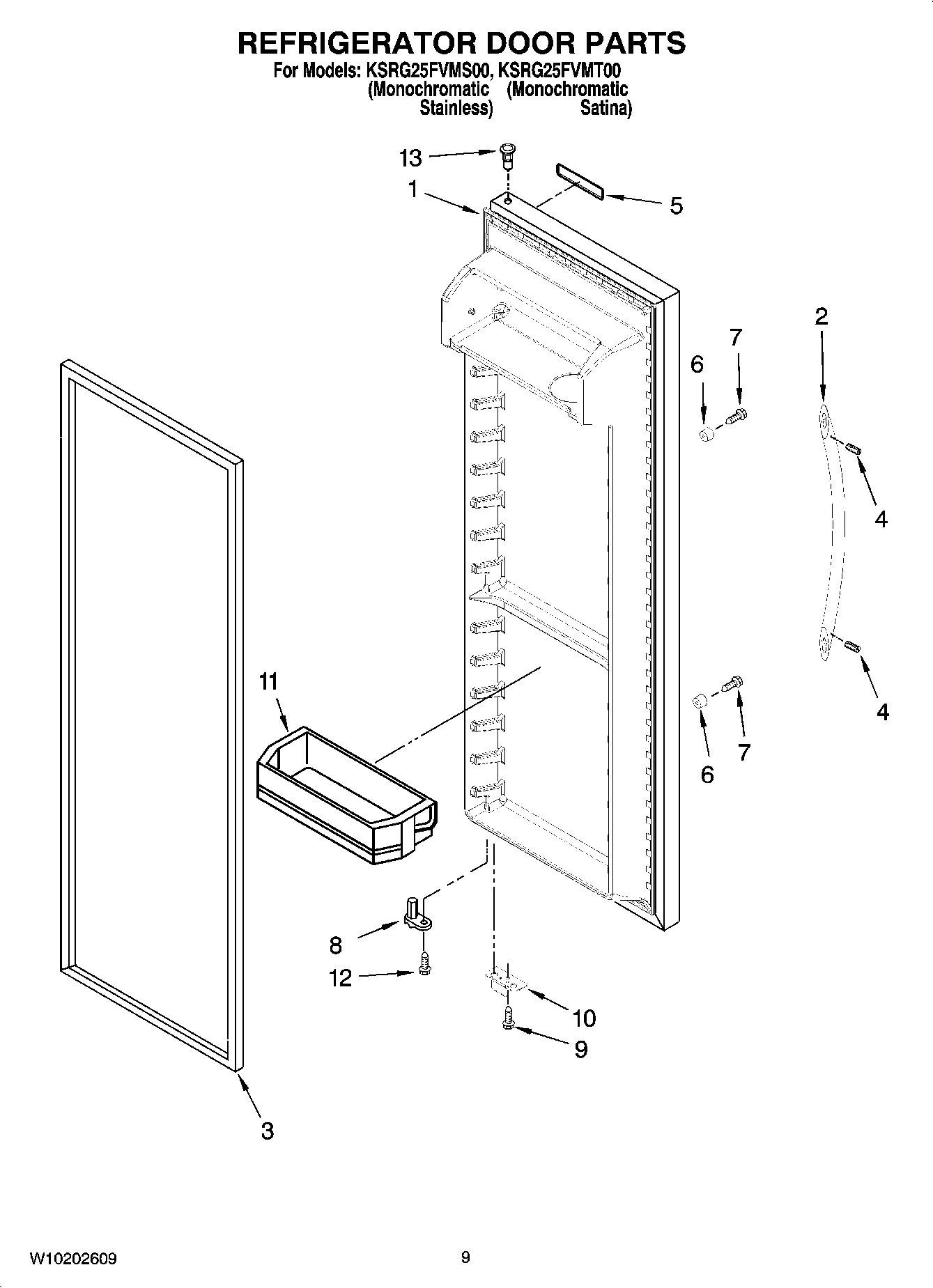

KSRG25FVMS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.3) (MONO SATINA)
1REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC SATINA)
2Handle, Door (Stainless Steel)
3WPW10136734 Whirlpool Refrigerator Door Gasket
4SCREW
5NAMEPLATE
6WPW10170540 Whirlpool Screw
7WP488163 Whirlpool Refrigerator Screw
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10WP2206629B Whirlpool Refrigerator Bracket
11Door Bin (4)
12WP3400012 Whirlpool Refrigerator Screw
13WP2182181 Whirlpool Refrigerator Thimble
