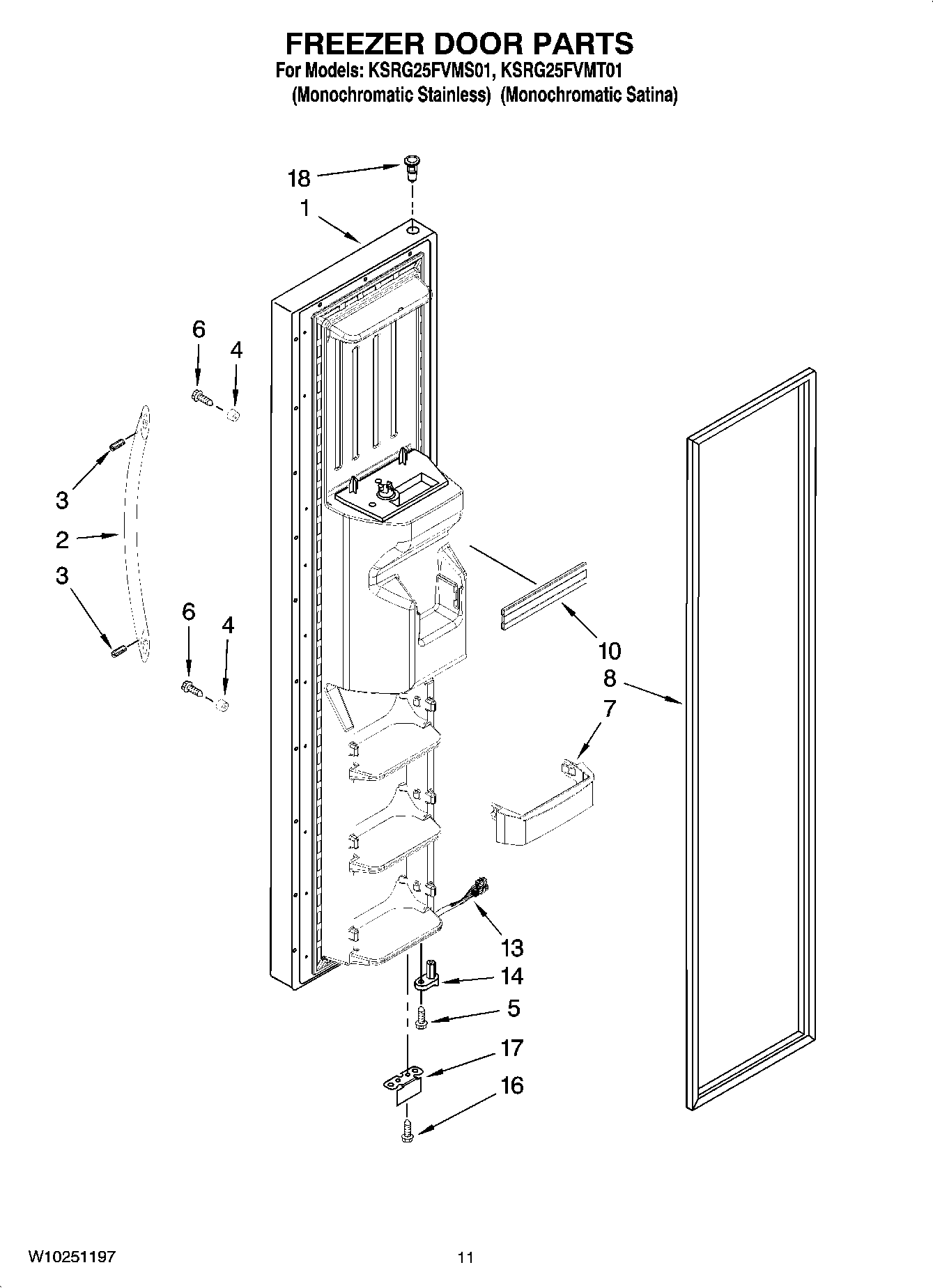

KSRG25FVMS01 07 – FREEZER DOOR PARTS

KSRG25FVMS01 07 – FREEZER DOOR PARTS

Written by

in

KSRG25FVMS01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONO SATINA)
2Handle, Door (Stainless Steel)
3SCREW
4WPW10170540 Whirlpool Screw
5WP3400012 Whirlpool Refrigerator Screw
6W10141596 Whirlpool Screw Assembly
7Shelf Bin (3)
8W10136735 Whirlpool Refrigerator Door Gasket
10WPW10307490 Whirlpool Door Trim Assembly
13WPW10193328 Whirlpool Refrigerator Wire Harness
14Door Closer, Upper Cam
16WP489483 Whirlpool Screw
172323534 Whirlpool Refrigerator Bracket
18WP2182181 Whirlpool Refrigerator Thimble
