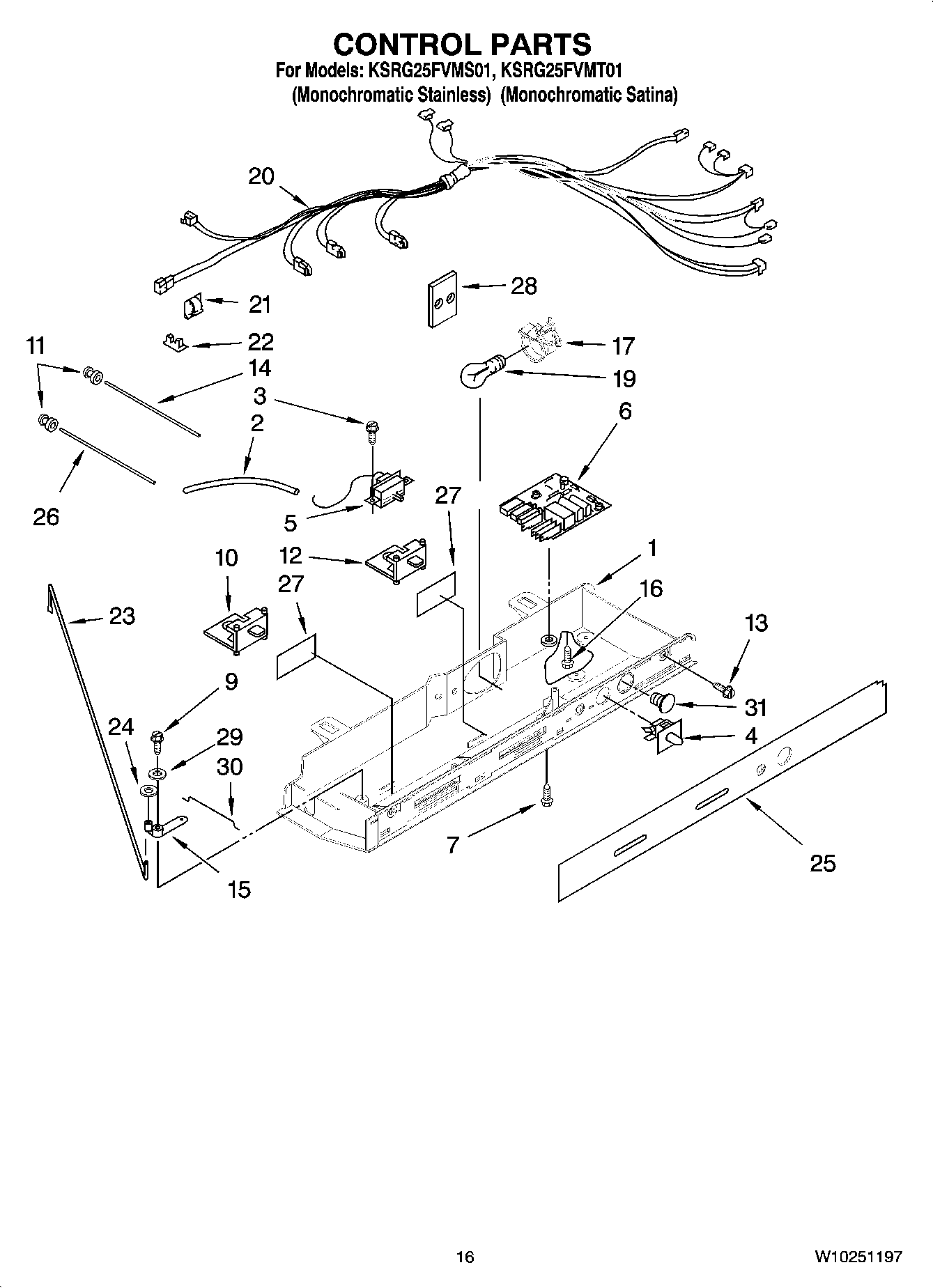

KSRG25FVMS01 10 – CONTROL PARTS

KSRG25FVMS01 10 – CONTROL PARTS

Written by

in

KSRG25FVMS01 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2315562 Whirlpool Refrigerator Thermostat
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
9627068 Whirlpool Refrigerator Screw
102181741 Whirlpool Refrigerator Slide
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13SCREW
14Fiber Optic
152161306 Whirlpool Refrigerator Arm Pivot
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
232161308 Whirlpool Refrigerator Rod
24Fastener, Push-On
25Escutcheon, Control Box
26Light Bar (FC)
27Window
282172931 Whirlpool Refrigerator Shield
29489203 Whirlpool Refrigerator Washer
302161307 Whirlpool Refrigerator Rod
31940014 Whirlpool Refrigerator Primary Button Plug
