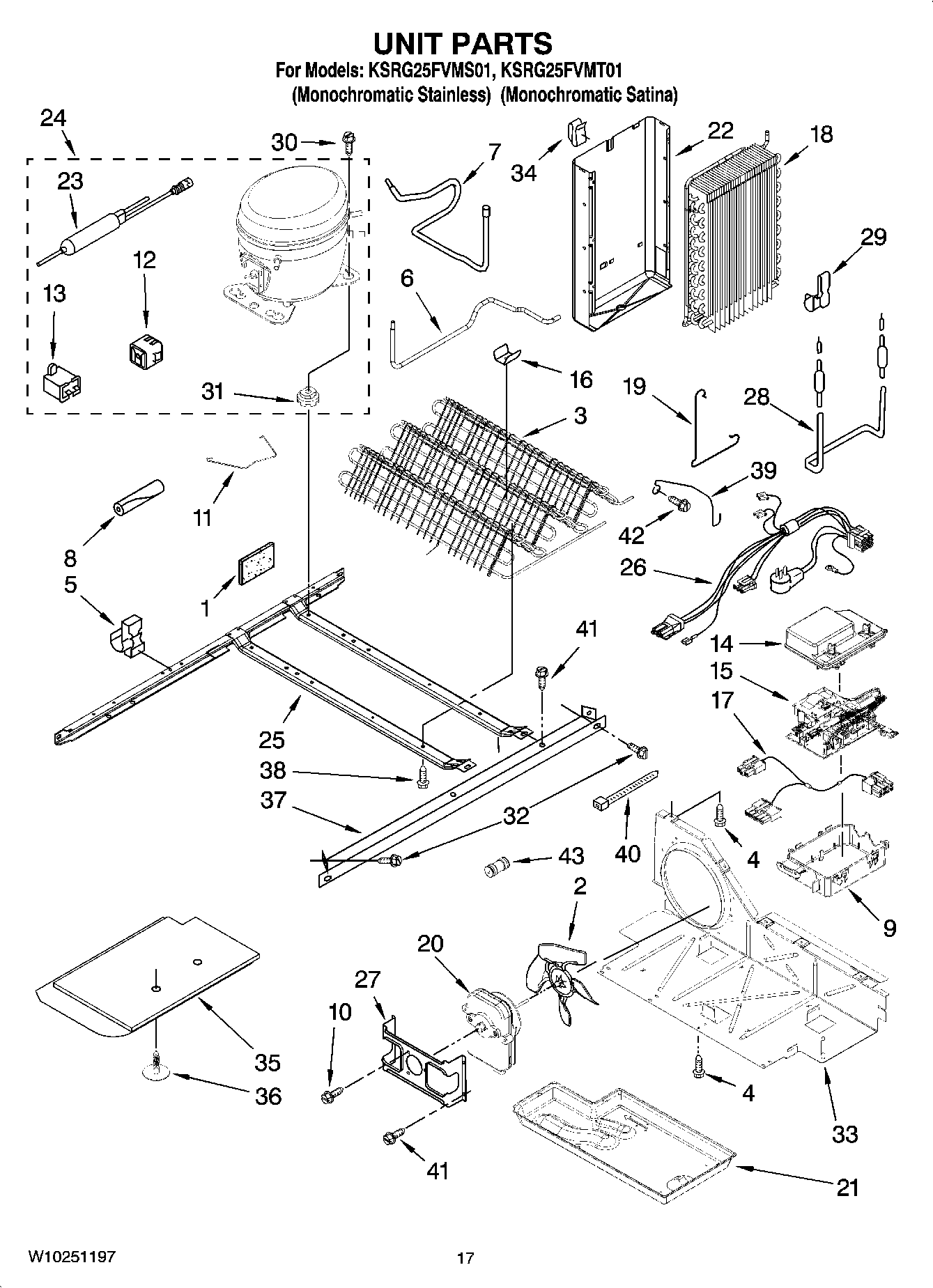

KSRG25FVMS01 11 – UNIT PARTS

KSRG25FVMS01 11 – UNIT PARTS

Written by

in

KSRG25FVMS01 11 – UNIT PARTS

Products

PositionProduct
978027 Whirlpool Refrigerator Primary Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
REFRIGERANT CHARGE 5.00 oz. (R-134A)
VALVE, ACCESS (5/8“)
Following Parts Not Illustrated and Optional Parts Not Included
1W11553819 Whirlpool Refrigerator Insulation
2W10156818 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10169512 Whirlpool Clip
6Tube, Process
7W10528574 Whirlpool Refrigerator Tube
8SLEEVE
92326982 Whirlpool Refrigerator Control Box
10WP8533993 Whirlpool Refrigerator Screw
112223314 Whirlpool Refrigerator Clip
12WPW10189190 Whirlpool Start Device
13WPW10662129 Whirlpool Refrigerator Run Capacitor
14Box Cover
15Elec. Control
16W10683556 Whirlpool Refrigerator Clip
17WIRE ASSY, LV
18WP2188823 Whirlpool Refrigerator Evaporator
19Clamp
20WP2188874 Whirlpool Refrigerator Condenser Motor
21WPW10614158 Whirlpool Refrigerator Evaporator Tray
22Heat Shield
23WPW10143759 Whirlpool Dryer Filter
24W10233961 Whirlpool Refrigerator Compressor
252304904 Whirlpool Frame Assembly
262310425 Whirlpool Refrigerator Wire Harness
27WP2181929 Whirlpool Refrigerator Bracket
28WP2323198 Whirlpool Refrigerator Heater
29W11623163 Whirlpool Refrigerator Clip
31876811 Whirlpool Grommet
32489340 Whirlpool Refrigerator Screw
33W10896764 Whirlpool Refrigerator Air Baffle
34Clip, Heat Shield
35Unit Cover, Bottom
36489396 Whirlpool Refrigerator Clip
372305374 Whirlpool Refrigerator Unit Rail
38W11544659 Whirlpool Refrigerator Screw
39W11661170 Whirlpool Clip
40WPW10339879 Whirlpool Wire Tie
41WP489427 Whirlpool Refrigerator Screw
42WPW10141625 Whirlpool Refrigerator Screw Assembly
43WPW10334458 Whirlpool Refrigerator Connector
