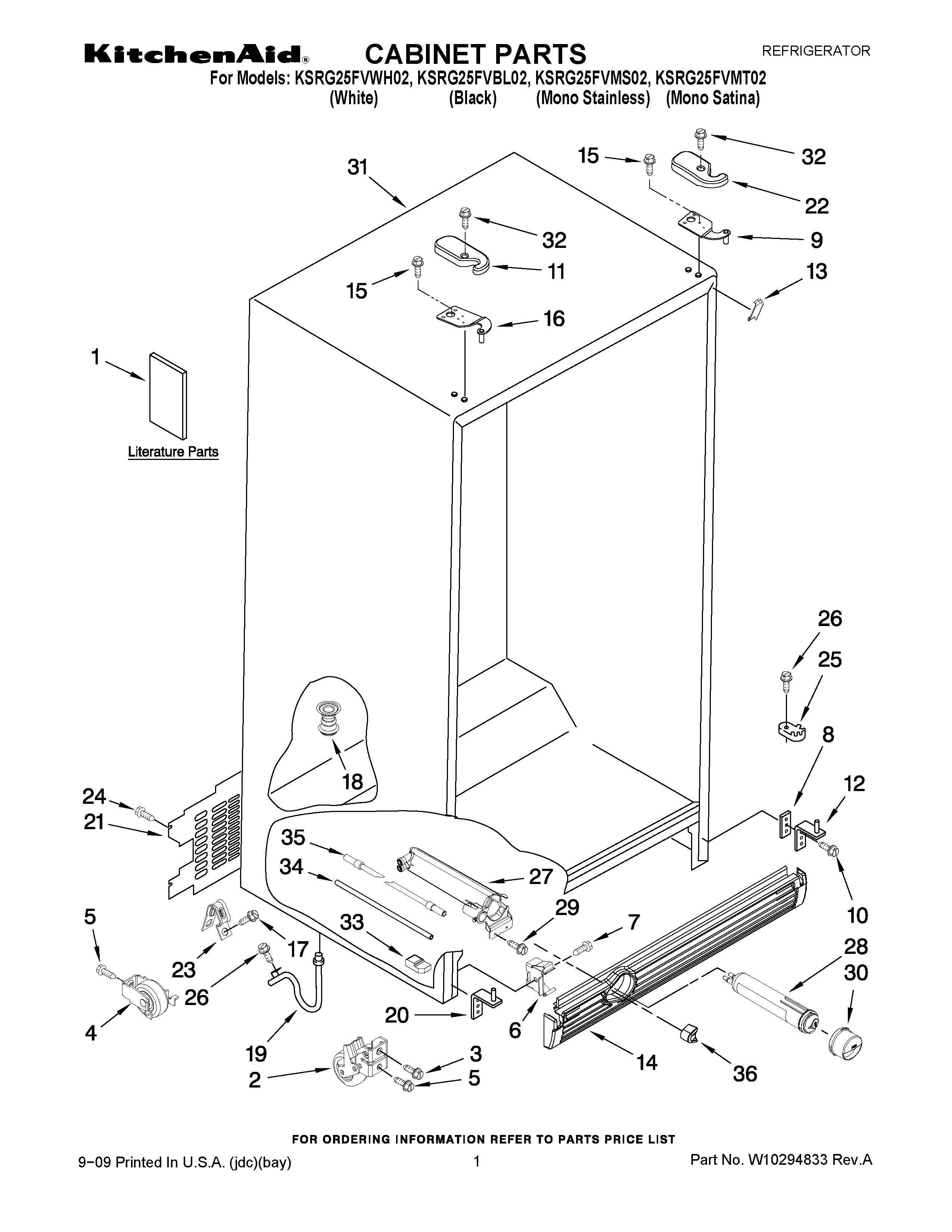

KSRG25FVMS02 01 – CABINET PARTS

KSRG25FVMS02 01 – CABINET PARTS

Written by

in

KSRG25FVMS02 01 – CABINET PARTS

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Guide
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
11	Hinge Cover (RC) (Black)
11	Hinge Cover (RC) (White)
11	Hinge Cover (FC) (Apollo Grey)
12	W10138965 Whirlpool Refrigerator Door Hinge
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
13	Filler, Wrapper (Apollo Grey)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10184890 Whirlpool Refrigerator Grille
14	WPW10184888 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	WP2203770 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
20	2303141 Whirlpool Refrigerator Door Hinge
21	WP2188755 Whirlpool Rear Panel
22	Hinge Cover (RC) (Apollo Grey)
22	Hinge Cover (FC) (White)
22	Hinge Cover (FC) (Black)
23	549193 Whirlpool Refrigerator Power Clamp
24	SCREW
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	FILTER 3-SINGLE TEAL
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	WP2260518MG Whirlpool Water Filter Cap
31	CABINET (NOT A SERVICEABLE PART)
32	WP8281227 Whirlpool Screw
33	Block, Housing Support
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	TUBE, FILTER INLET
36	2260503MG Whirlpool Refrigerator Button
36	2260503W Whirlpool Refrigerator Button
36	WP2260503B Whirlpool Refrigerator Button
