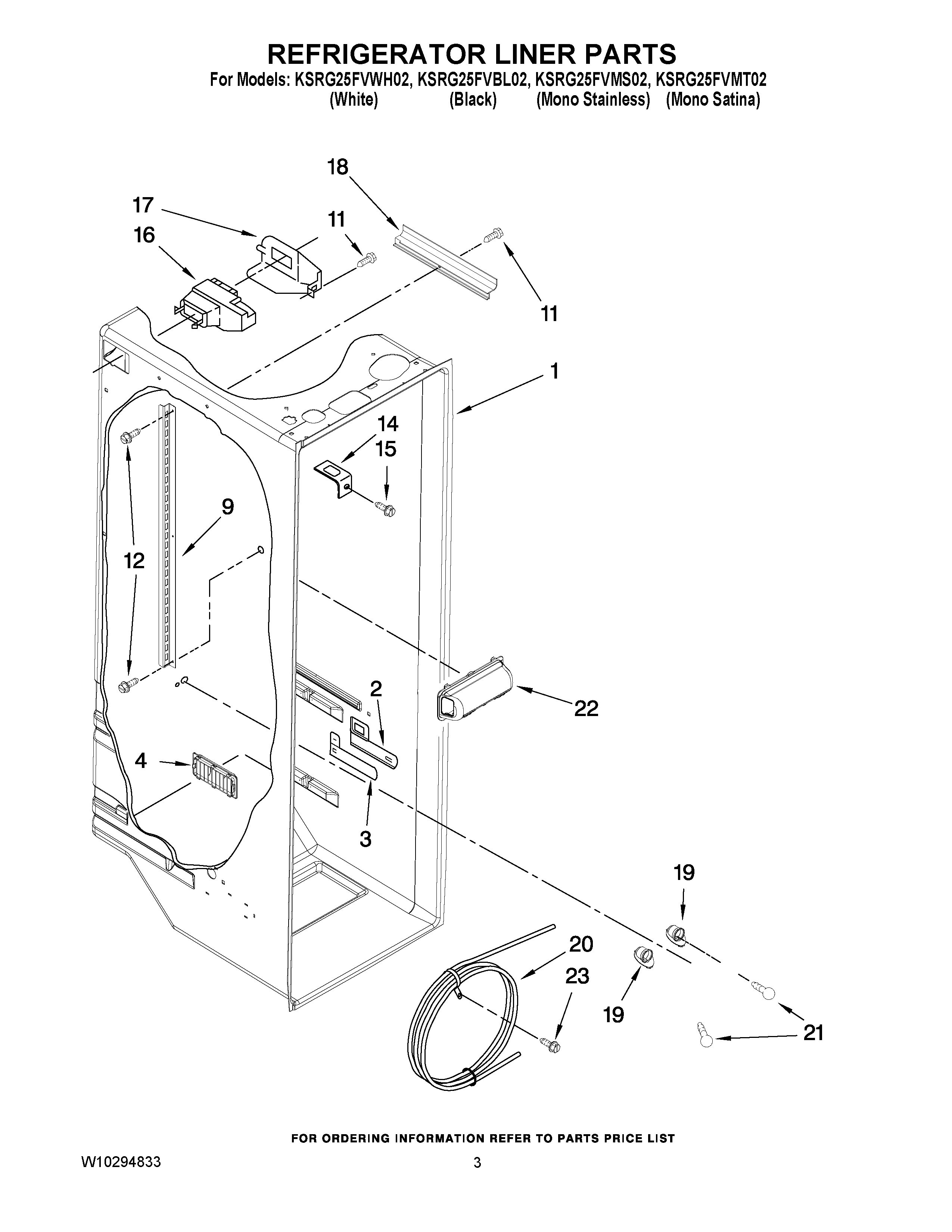

KSRG25FVMS02 02 – REFRIGERATOR LINER PARTS

KSRG25FVMS02 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRG25FVMS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
9Shelf Ladder
11W10759522 Whirlpool Screw
12WP489478 Whirlpool Refrigerator Screw
14WP2256085 Whirlpool Refrigerator Retainer
15WP488488 Whirlpool Refrigerator Screw
16WPW10151374 Whirlpool Refrigerator Diffuser
172152019 Whirlpool Refrigerator Cover
182150331 Whirlpool Refrigerator Wire Cover
194387478 Whirlpool Refrigerator Light Socket
20RESERVOIR
21RANGE ONLY 40W 120V APPL BULB
22W11239891 Whirlpool Refrigerator Light Lens
23W10141518 Whirlpool Refrigerator Screw
