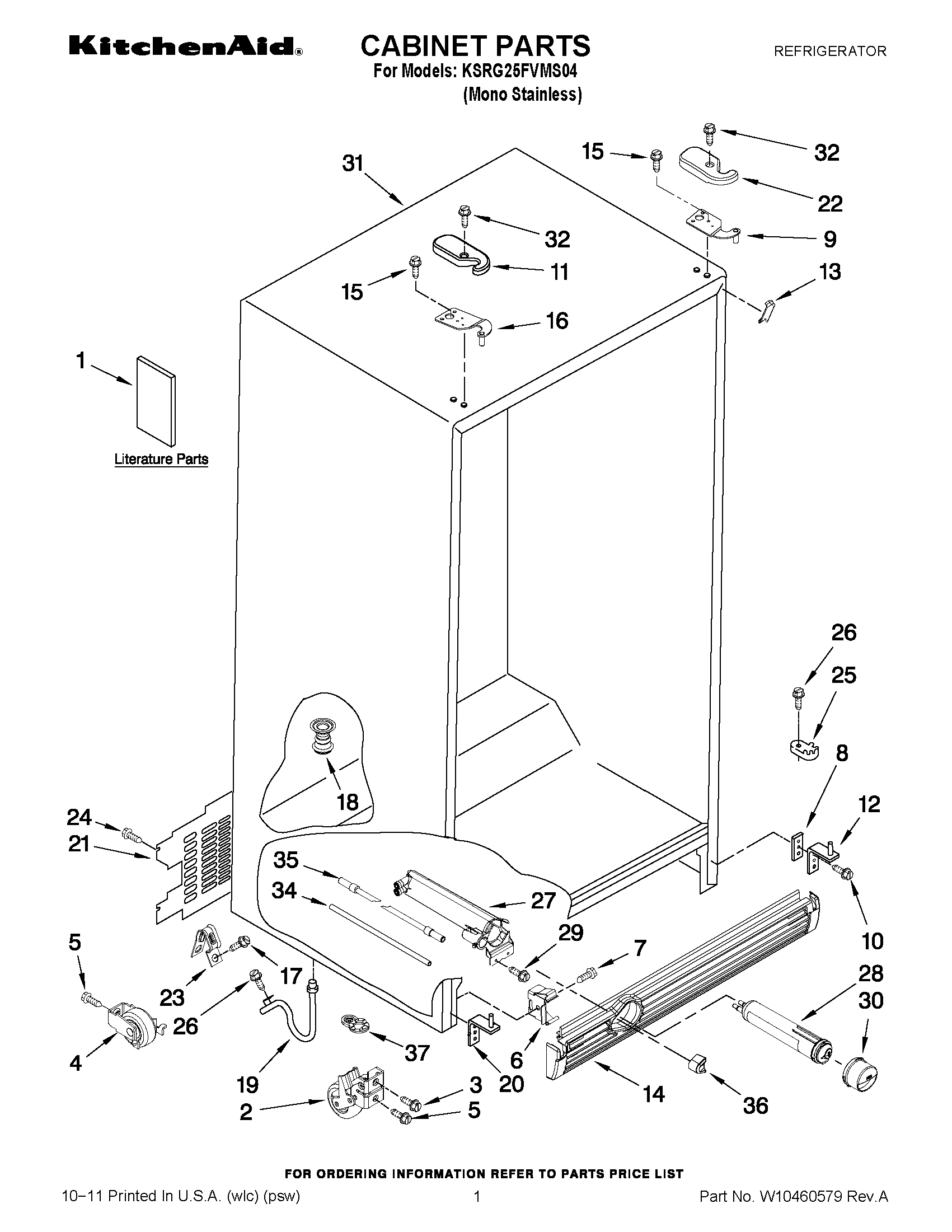

KSRG25FVMS04 01 – CABINET PARTS

KSRG25FVMS04 01 – CABINET PARTS

Written by

in

KSRG25FVMS04 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Modular Icemaker Service Sheet
1INSTRUCTION SHEET, DOOR REMOVAL
1Service & Wiring Sheet
1USE & CARE GUIDE
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WPW10141604 Whirlpool Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
11HINGE COVER, FC APOLLO GREY
12W10138965 Whirlpool Refrigerator Door Hinge
13Filler, Wrapper (Apollo Grey)
14WPW10184890 Whirlpool Refrigerator Grille
15WP489497 Whirlpool Screw
16WP2203770 Whirlpool Refrigerator Door Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19W11512417 Whirlpool Drain Connector
202303141 Whirlpool Refrigerator Door Hinge
21WP2188755 Whirlpool Rear Panel
22HINGE COVER, RC (APOLLO GREY)
23549193 Whirlpool Refrigerator Power Clamp
24SCREW
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27WPW10121138 Whirlpool Refrigerator Water Filter Housing
28FILTER 3-SINGLE TEAL
29WP489500 Whirlpool Refrigerator Screw
30WP2260518MG Whirlpool Water Filter Cap
31CABINET (NOT A SERVICEABLE PART)
32WP8281227 Whirlpool Screw
34WPW10350006 Whirlpool Refrigerator Water Tube
35TUBE, FILTER INLET
362260503MG Whirlpool Refrigerator Button
37WP2223751 Whirlpool Refrigerator Door Cam
