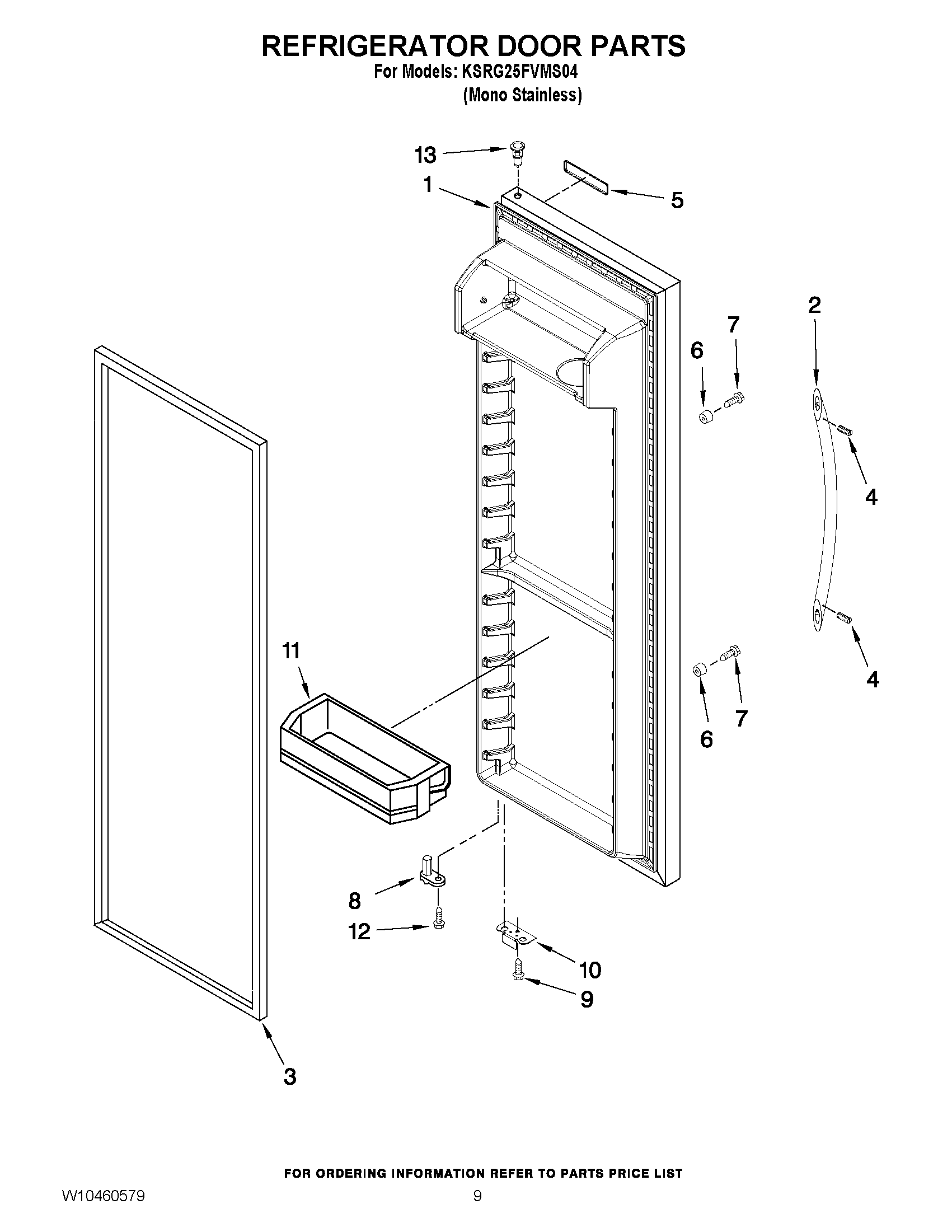

KSRG25FVMS04 06 – REFRIGERATOR DOOR PARTS

KSRG25FVMS04 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRG25FVMS04 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.3) (MONO STAINLESS)
2Handle, Door (Stainless Steel)
3WPW10136734 Whirlpool Refrigerator Door Gasket
5WPW10243391 Whirlpool Refrigerator Nameplate
6WPW10170540 Whirlpool Screw
7SCREW
8WP2182179 Whirlpool Cam Closer
9WPW10142233 Whirlpool Refrigerator Screw
10BRACKET, DOOR STOP (CHROME)
11Door Bin (4)
12WP3400012 Whirlpool Refrigerator Screw
13WP2182181 Whirlpool Refrigerator Thimble
