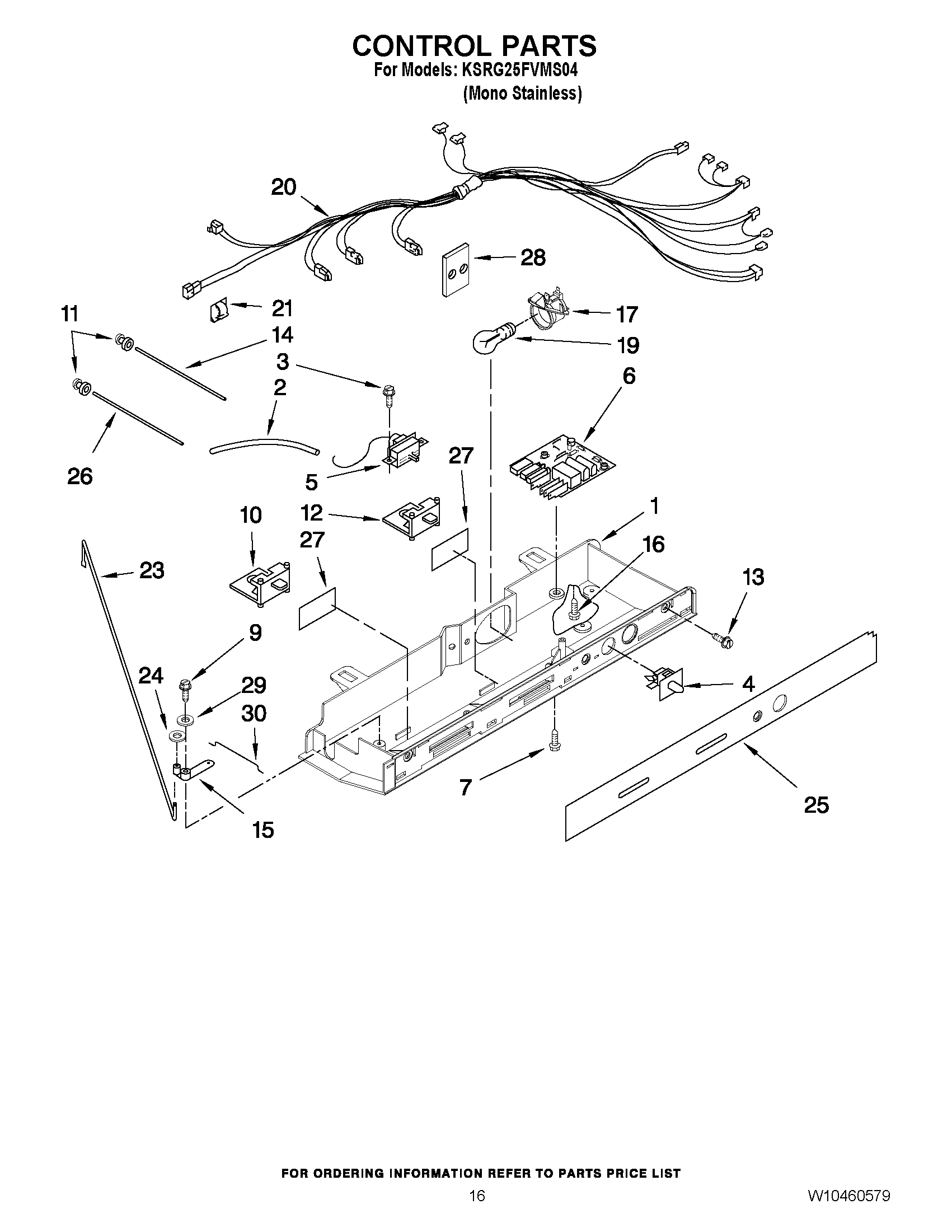

KSRG25FVMS04 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	SCREW
14	Fiber Optic
15	2161306 Whirlpool Refrigerator Arm Pivot
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	Window
28	2172931 Whirlpool Refrigerator Shield
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
