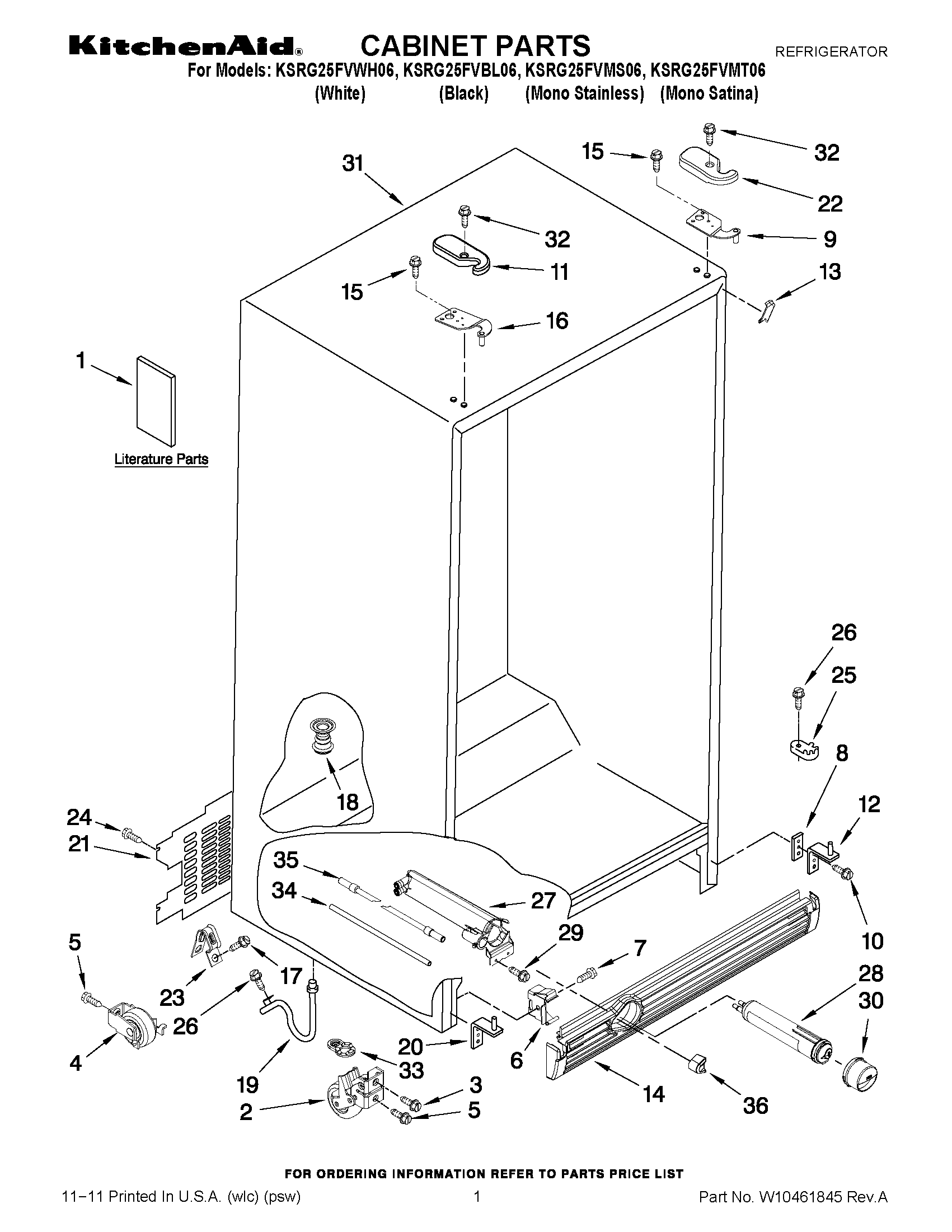

KSRG25FVMS06 01 – CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	USE & CARE GUIDE
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	W10242649 Whirlpool Refrigerator Door Hinge
11	HINGE COVER (RC) (WHITE)
11	HINGE COVER (RC) (BLACK)
11	HINGE COVER, RC (APOLLO GREY)
12	ADJUSTABLE HINGE CAM ASSY
13	Filler, Wrapper (Apollo Grey)
13	Filler, Wrapper (White)
13	Filler, Wrapper (Black)
14	WPW10311032 Whirlpool Refrigerator Grille
14	WPW10184888 Whirlpool Refrigerator Grille
14	WPW10184890 Whirlpool Refrigerator Grille
15	WP489497 Whirlpool Screw
16	HINGE, TOP (FC)
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
20	2303141 Whirlpool Refrigerator Door Hinge
21	WP2188755 Whirlpool Rear Panel
22	HINGE COVER (FC) (BLACK)
22	HINGE COVER (FC) (WHITE)
22	HINGE COVER, FC APOLLO GREY
23	549193 Whirlpool Refrigerator Power Clamp
24	SCREW
25	W11049959 Whirlpool Refrigerator Hinge
26	WP489483 Whirlpool Screw
27	WPW10121138 Whirlpool Refrigerator Water Filter Housing
28	FILTER 3-SINGLE TEAL
29	WP489500 Whirlpool Refrigerator Screw
30	WP2260518W Whirlpool Refrigerator Filter Cap
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518MG Whirlpool Water Filter Cap
31	CABINET (NOT A SERVICEABLE PART)
32	WP8281227 Whirlpool Screw
33	WP2223751 Whirlpool Refrigerator Door Cam
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	TUBE, FILTER INLET
36	WP2260503B Whirlpool Refrigerator Button
36	2260503MG Whirlpool Refrigerator Button
36	2260503W Whirlpool Refrigerator Button
