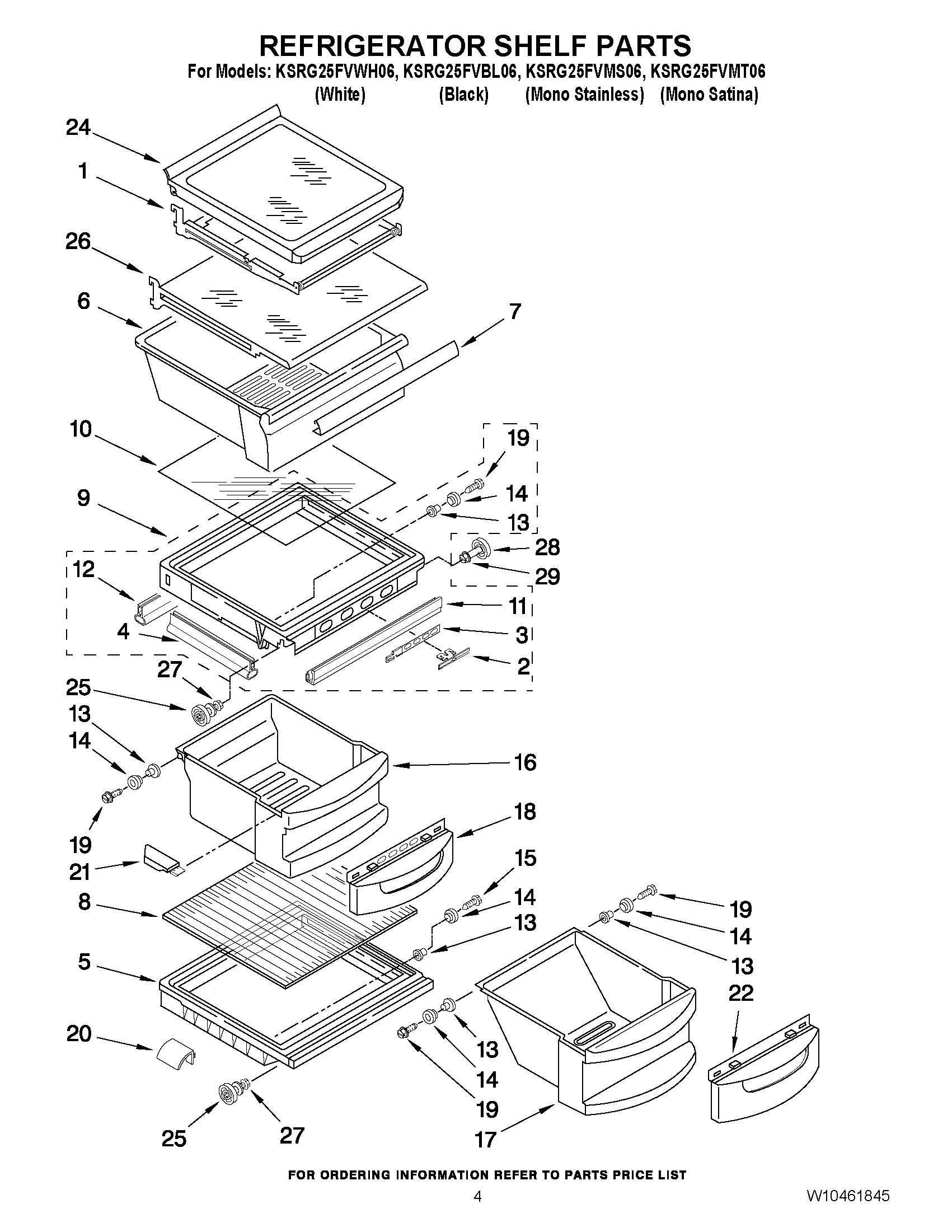

KSRG25FVMS06 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame, Shelf
2	Button, Humidity
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	WP2223357 Whirlpool Refrigerator Cover
6	Snack Pan (Includes 30)
7	WP2179243 Whirlpool Refrigerator Pan Trim
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	GASKET (REAR)
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	CRISPER PAN (INCLUDES 13, 14,18,19 & 21)
17	MEAT PAN (INCLUDES 13, 14,19 & 22)
18	Window, Crisper
19	WP489261 Whirlpool Refrigerator Screw
20	2176095 Whirlpool Refrigerator Deflector
21	2223285 Whirlpool Refrigerator Cap
21	Cap, Crisper Pan (Right Side)
22	Window, Meat Pan
24	WPW10141748 Whirlpool Refrigerator Glass Shelf
25	W11223328 Whirlpool Refrigerator Shelf Stud
26	Shelf, Snack Bin
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	W11527119 Whirlpool Refrigerator Shelf Stud
29	WPW10191952 Whirlpool Refrigerator Screw
