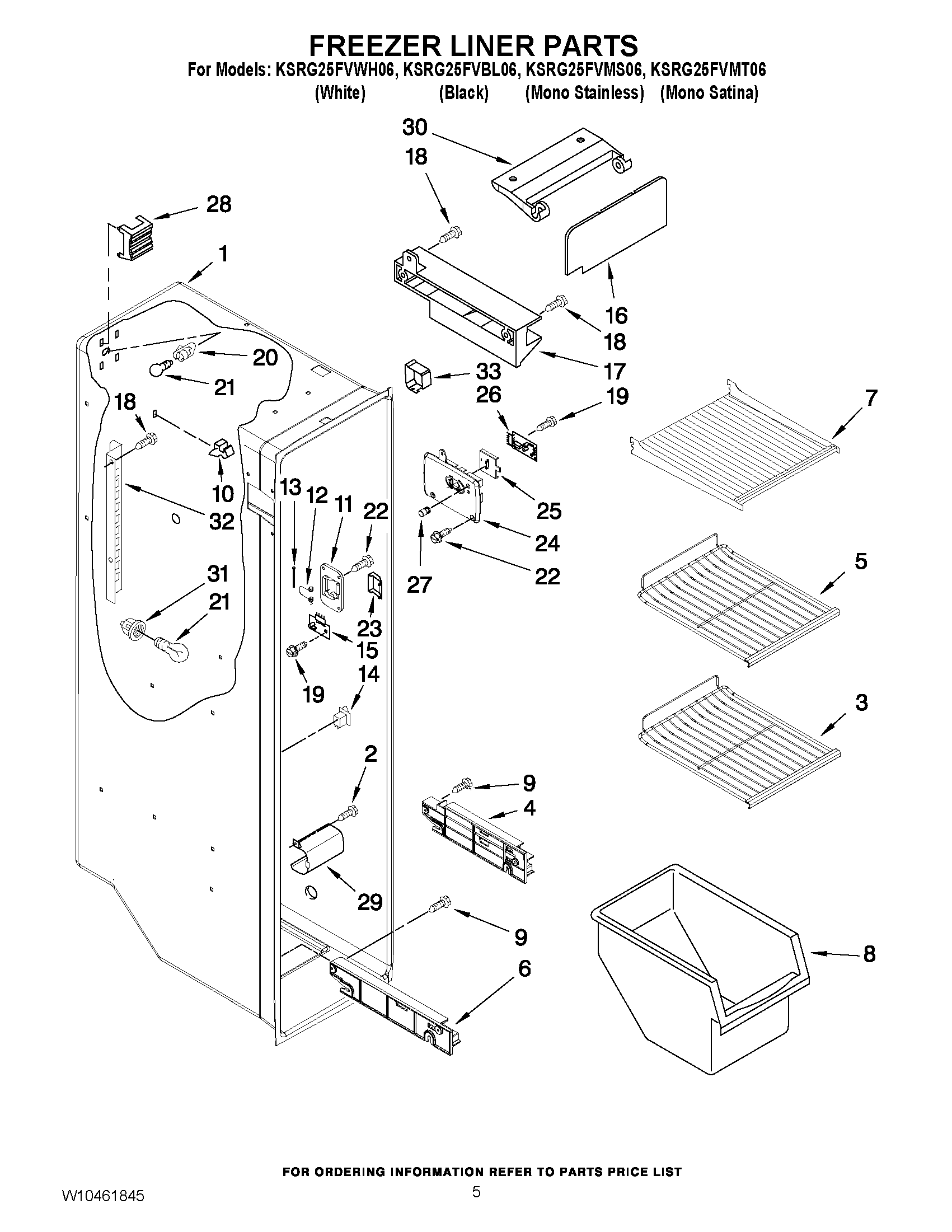

KSRG25FVMS06 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
3	WPW10317556 Whirlpool Refrigerator Wire Shelf
4	2301292 Whirlpool Refrigerator Track
4	2301291 Whirlpool Refrigerator Track
5	Shelf, Slide Out Upper
6	Shelf Track (Left Side)
6	Shelf Track (Right Side)
7	Shelf (2)
8	WP2182971 Whirlpool Refrigerator Freezer Bin
9	W10759522 Whirlpool Screw
10	2215823 Whirlpool Refrigerator Clip
11	WP2198587 Whirlpool Refrigerator Cover
12	WP2198635 Whirlpool Refrigerator Spring
13	WP2198634 Whirlpool Door Pin
14	W11457217 Whirlpool Refrigerator Rocker Switch Combination
15	W10757851-includeCORE Whirlpool Electronic Control+Core
16	WP2255720 Whirlpool Refrigerator Ice Maker Door
17	Slide, Ice Maker
18	WP489478 Whirlpool Refrigerator Screw
19	2006254 Whirlpool Refrigerator Screw
20	4387478 Whirlpool Refrigerator Light Socket
21	W11679940 Whirlpool Refrigerator Light Bulb Assembly
22	WPW10142283 Whirlpool Refrigerator Screw
23	WP2198633 Whirlpool Refrigerator Flipper
24	Cover, Receiver
25	2315398 Whirlpool Refrigerator Slide
27	WP2198643 Whirlpool Refrigerator Lens
28	Light Shield
29	Light Lens
30	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
31	SOCKET
32	Ladder (Left Side)
32	Ladder (Right Side)
33	2303234 Whirlpool Refrigerator Shield
