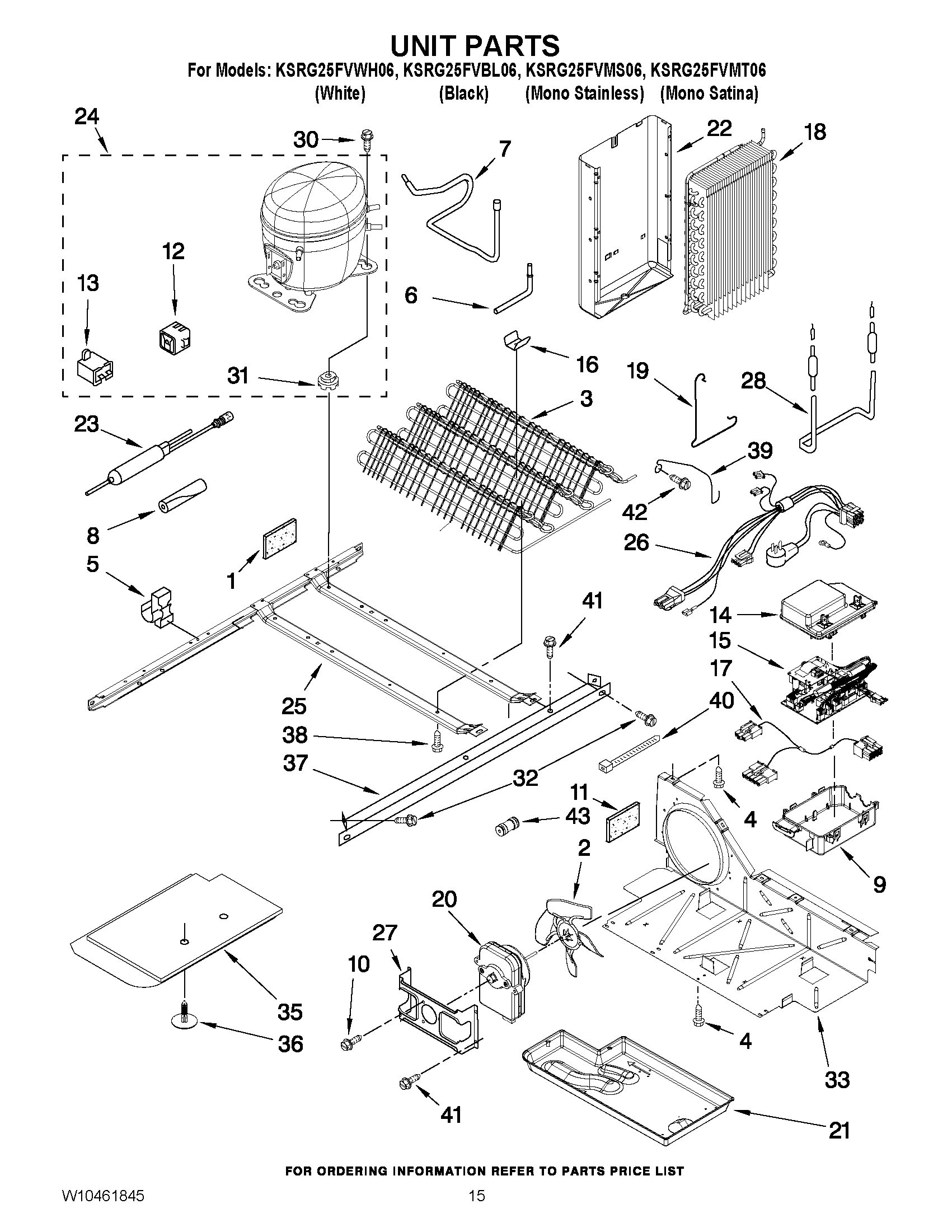

KSRG25FVMS06 10 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10169512 Whirlpool Clip
6	W10858105 Whirlpool Refrigerator Tube
7	WP2205765 Whirlpool Refrigerator Tube
8	SLEEVE
9	2326982 Whirlpool Refrigerator Control Box
10	WP8533993 Whirlpool Refrigerator Screw
11	2217070 Whirlpool Foam Kit
12	WPW10189190 Whirlpool Start Device
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	Box Cover
15	ELEC CONTROL
16	W10683556 Whirlpool Refrigerator Clip
17	WIRE ASSY, LV
18	WP2188823 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	Heat Shield
23	WPW10143759 Whirlpool Dryer Filter
24	W10139462 Whirlpool Refrigerator Compressor
25	2304904 Whirlpool Frame Assembly
26	2310425 Whirlpool Refrigerator Wire Harness
27	WP2181929 Whirlpool Refrigerator Bracket
28	WP2323198 Whirlpool Refrigerator Heater
31	876811 Whirlpool Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
35	Unit Cover, Bottom
36	489396 Whirlpool Refrigerator Clip
37	2305374 Whirlpool Refrigerator Unit Rail
38	W11544659 Whirlpool Refrigerator Screw
39	W10204187 Whirlpool Refrigerator Retainer
40	WPW10339879 Whirlpool Wire Tie
41	WP489427 Whirlpool Refrigerator Screw
42	WPW10141625 Whirlpool Refrigerator Screw Assembly
43	UNION
