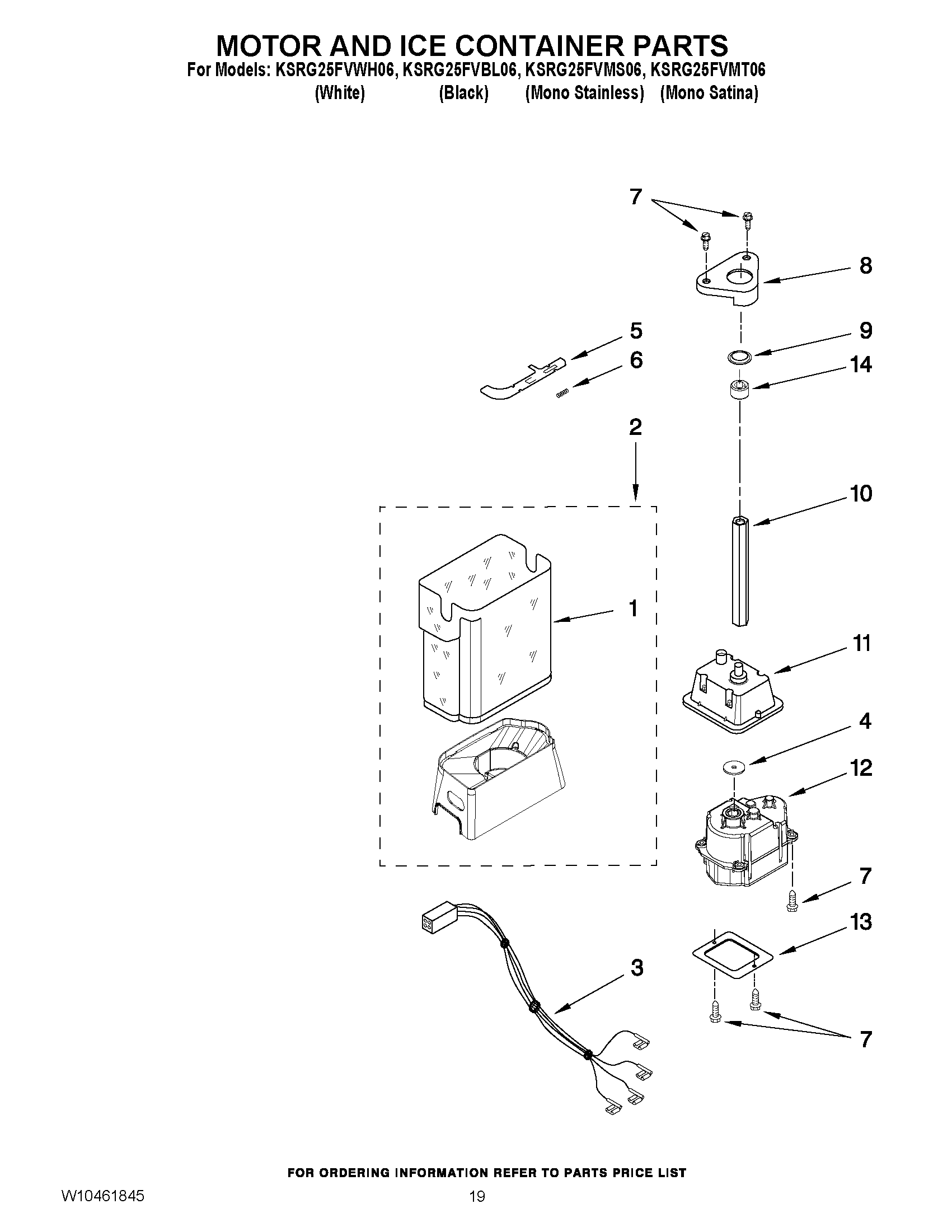

KSRG25FVMS06 12 – MOTOR AND ICE CONTAINER PARTS

KSRG25FVMS06 12 – MOTOR AND ICE CONTAINER PARTS

Written by

in

KSRG25FVMS06 12 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1WP2198573 Whirlpool Refrigerator Ice Bin
3W10281266 Whirlpool Refrigerator Wire Harness
4WPW10254073 Whirlpool Refrigerator Washer
5Latch, Bin
6WP2198608 Whirlpool Refrigerator Spring
7WP8281163 Whirlpool Refrigerator Screw
8WP2188919 Whirlpool Refrigerator Holder
9WP2198628 Whirlpool Door Seal
10WP2188917 Whirlpool Drive Shaft
11Enclosure, Motor
12W10822606 Whirlpool Dishwasher Dispenser Motor
13Cover
14WP2315559 Whirlpool Motor Coupling
100Ice Container (Complete)
