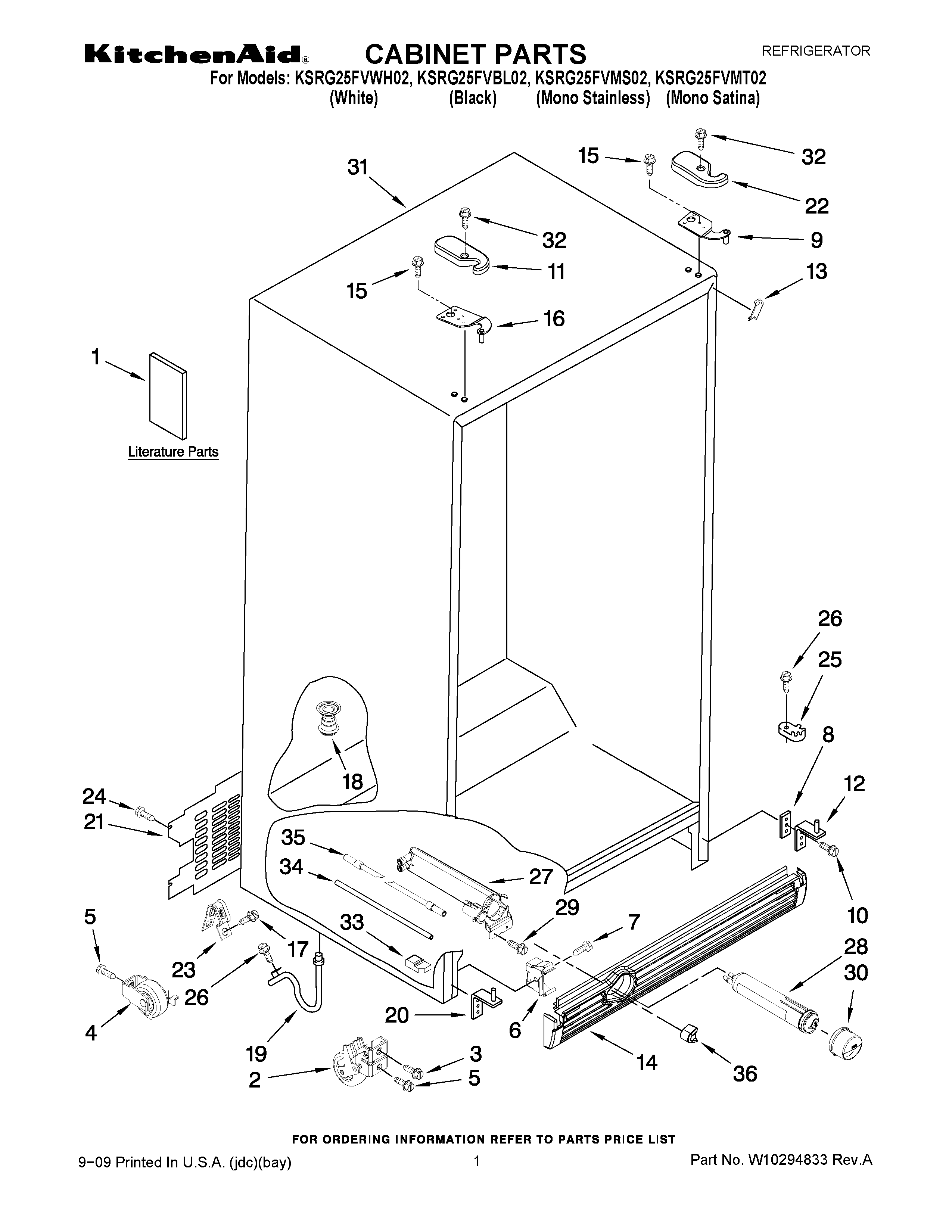

KSRG25FVMT02 01 – CABINET PARTSadmin2025-04-26T11:43:36+00:00KSRG25FVMT02 01 – CABINET PARTS ProductsPositionProduct1Modular Icemaker Service Sheet1Energy Guide1Service & Wiring Sheet1INSTRUCTION SHEET, DOOR REMOVAL1Use & Care Guide2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw8WP2181911 Whirlpool Refrigerator Shim9WP2203771 Whirlpool Refrigerator Door Hinge11Hinge Cover (RC) (Black)11Hinge Cover (RC) (White)11Hinge Cover (FC) (Apollo Grey)12W10138965 Whirlpool Refrigerator Door Hinge13Filler, Wrapper (White)13Filler, Wrapper (Black)13Filler, Wrapper (Apollo Grey)14WPW10311032 Whirlpool Refrigerator Grille14WPW10184890 Whirlpool Refrigerator Grille14WPW10184888 Whirlpool Refrigerator Grille15WP489497 Whirlpool Screw16WP2203770 Whirlpool Refrigerator Door Hinge17WP489464 Whirlpool Refrigerator Screw18W11566763 Whirlpool Fitting19W11512417 Whirlpool Drain Connector202303141 Whirlpool Refrigerator Door Hinge21WP2188755 Whirlpool Rear Panel22Hinge Cover (RC) (Apollo Grey)22Hinge Cover (FC) (White)22Hinge Cover (FC) (Black)23549193 Whirlpool Refrigerator Power Clamp24SCREW25WPW10329686 Whirlpool Door Cam Black26WP489483 Whirlpool Screw27WPW10121138 Whirlpool Refrigerator Water Filter Housing28FILTER 3-SINGLE TEAL29WP489500 Whirlpool Refrigerator Screw30WP2260518B Whirlpool Water Filter Cap30WP2260518W Whirlpool Refrigerator Filter Cap30WP2260518MG Whirlpool Water Filter Cap31CABINET (NOT A SERVICEABLE PART)32WP8281227 Whirlpool Screw33Block, Housing Support34WPW10350006 Whirlpool Refrigerator Water Tube35TUBE, FILTER INLET362260503MG Whirlpool Refrigerator Button362260503W Whirlpool Refrigerator Button36WP2260503B Whirlpool Refrigerator Button
