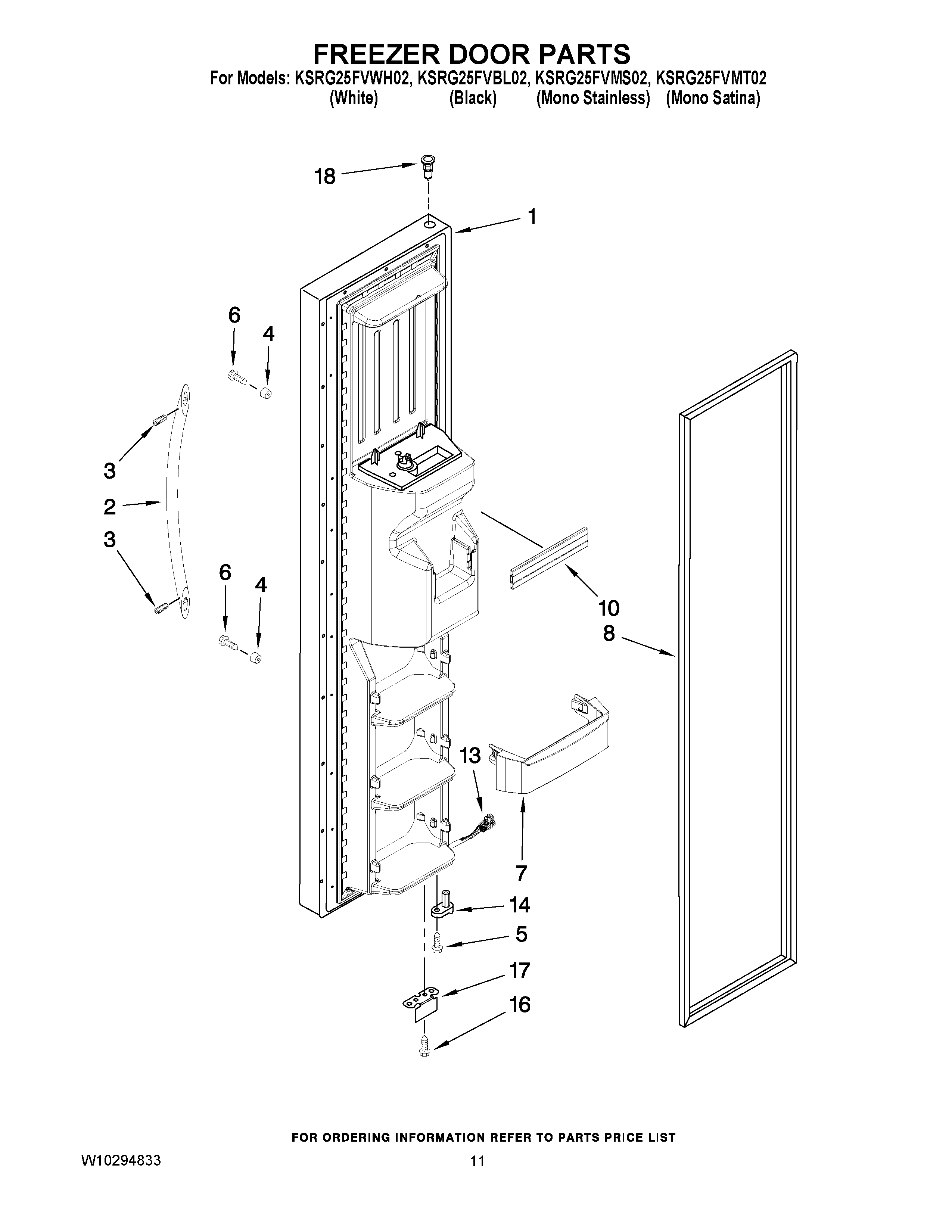

KSRG25FVMT02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONO SATINA)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
3	SCREW
4	WPW10170540 Whirlpool Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	W10141596 Whirlpool Screw Assembly
7	Shelf Bin (3)
8	W10136735 Whirlpool Refrigerator Door Gasket
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
10	WPW10307490 Whirlpool Door Trim Assembly
13	WPW10193328 Whirlpool Refrigerator Wire Harness
14	Door Closer, Upper Cam
16	WP489483 Whirlpool Screw
17	2323534 Whirlpool Refrigerator Bracket
18	WP2182181 Whirlpool Refrigerator Thimble
