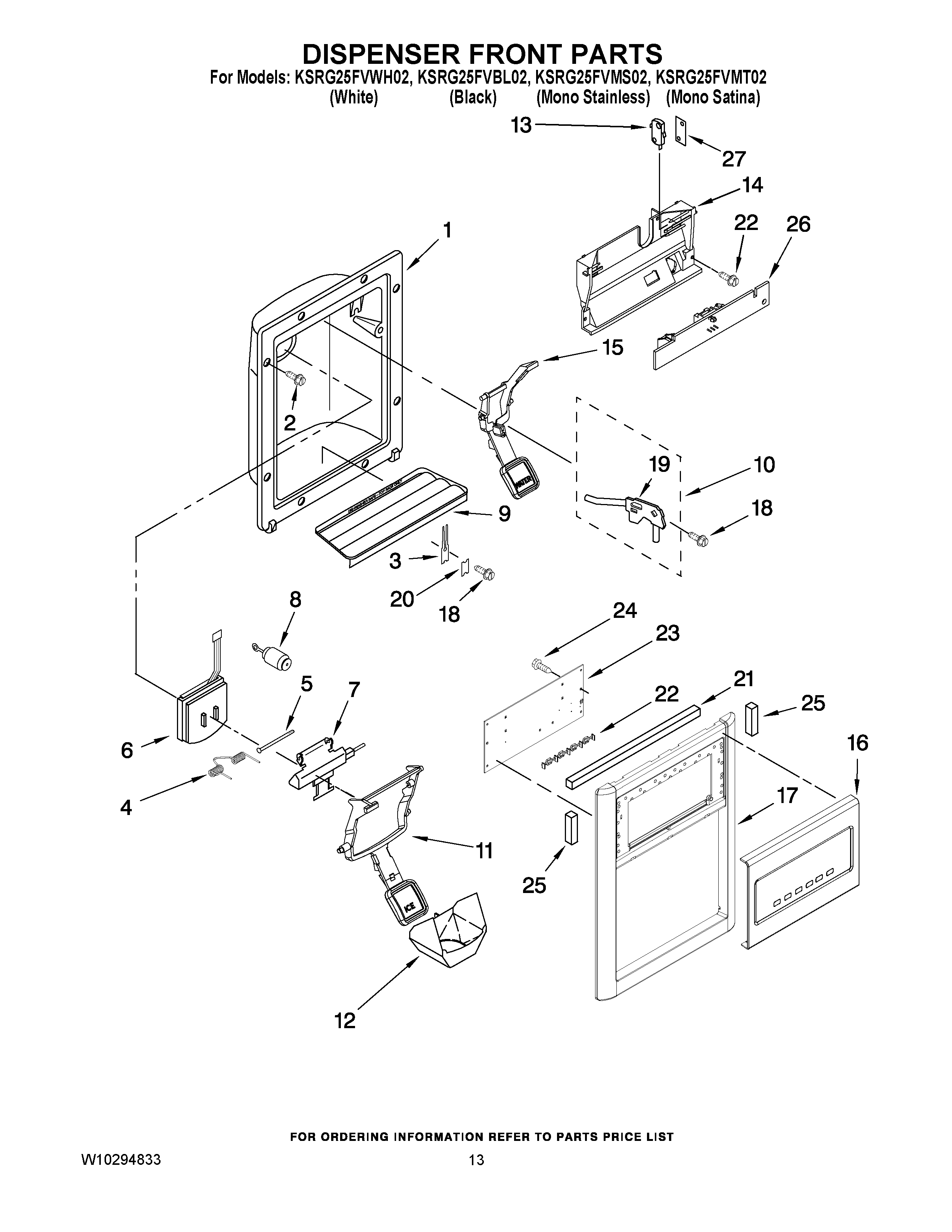

KSRG25FVMT02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670B Whirlpool Dispenser Tray
9WP2206670W Whirlpool Dispenser Tray
108201537 Whirlpool Water Tubing Assembly
11WPW10152853 Whirlpool Refrigerator Dispenser Arm
11Lever, Ice Dispenser (Apollo Gray)
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13WP2162361 Whirlpool Switch
14W10728484 Whirlpool Refrigerator Dispenser Control Bracket
15Lever, Water Dispenser (Apollo Gray)
15WPW10152859 Whirlpool Refrigerator Dispenser Arm
15WPW10152858 Whirlpool Refrigerator Dispenser Arm
16Fascia Assy (Black)
16Fascia Assy (White)
16FASCIA ASSY (NICKEL ONE)
16FASCIA ASSY (STAINLESS)
17Bezel, Disp (Black)
17W10171988 Whirlpool Refrigerator Front Cover
17W10136850 Whirlpool Refrigerator Front Cover
17Bezel, Disp (Mono Satina (SS))
18WP3400906 Whirlpool Refrigerator Screw
19WP2304673 Whirlpool Refrigerator Bracket
20WP2195051 Whirlpool Refrigerator Clip
212305571 Whirlpool Gasket Assembly
22Support, Window
23Control Board
242006254 Whirlpool Refrigerator Screw
25Gasket, Disp (2)
26LED Assy
27Spacer, Switch (2)
