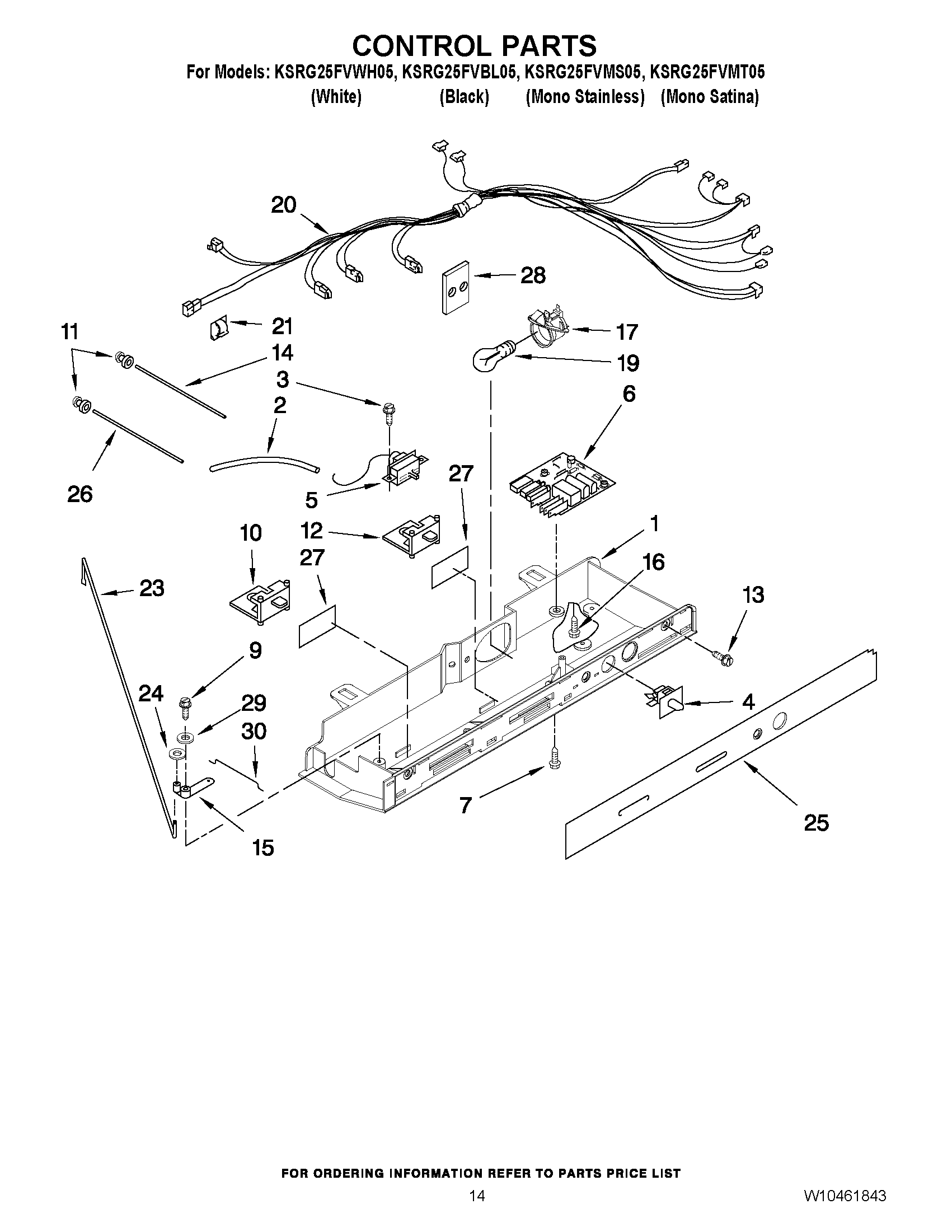

KSRG25FVMT05 09 – CONTROL PARTSadmin2025-04-26T11:54:50+00:00KSRG25FVMT05 09 – CONTROL PARTS ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2315562 Whirlpool Refrigerator Thermostat64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit7489392 Whirlpool Refrigerator Screw9627068 Whirlpool Refrigerator Screw102181741 Whirlpool Refrigerator Slide11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide13SCREW14Fiber Optic152161306 Whirlpool Refrigerator Arm Pivot16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket19W11679940 Whirlpool Refrigerator Light Bulb Assembly20Control Box Harness21WP1115374 Whirlpool Refrigerator Clip232161308 Whirlpool Refrigerator Rod24Fastener, Push-On25Escutcheon, Control Box26Light Bar (FC)27Window282172931 Whirlpool Refrigerator Shield29489203 Whirlpool Refrigerator Washer302161307 Whirlpool Refrigerator Rod
