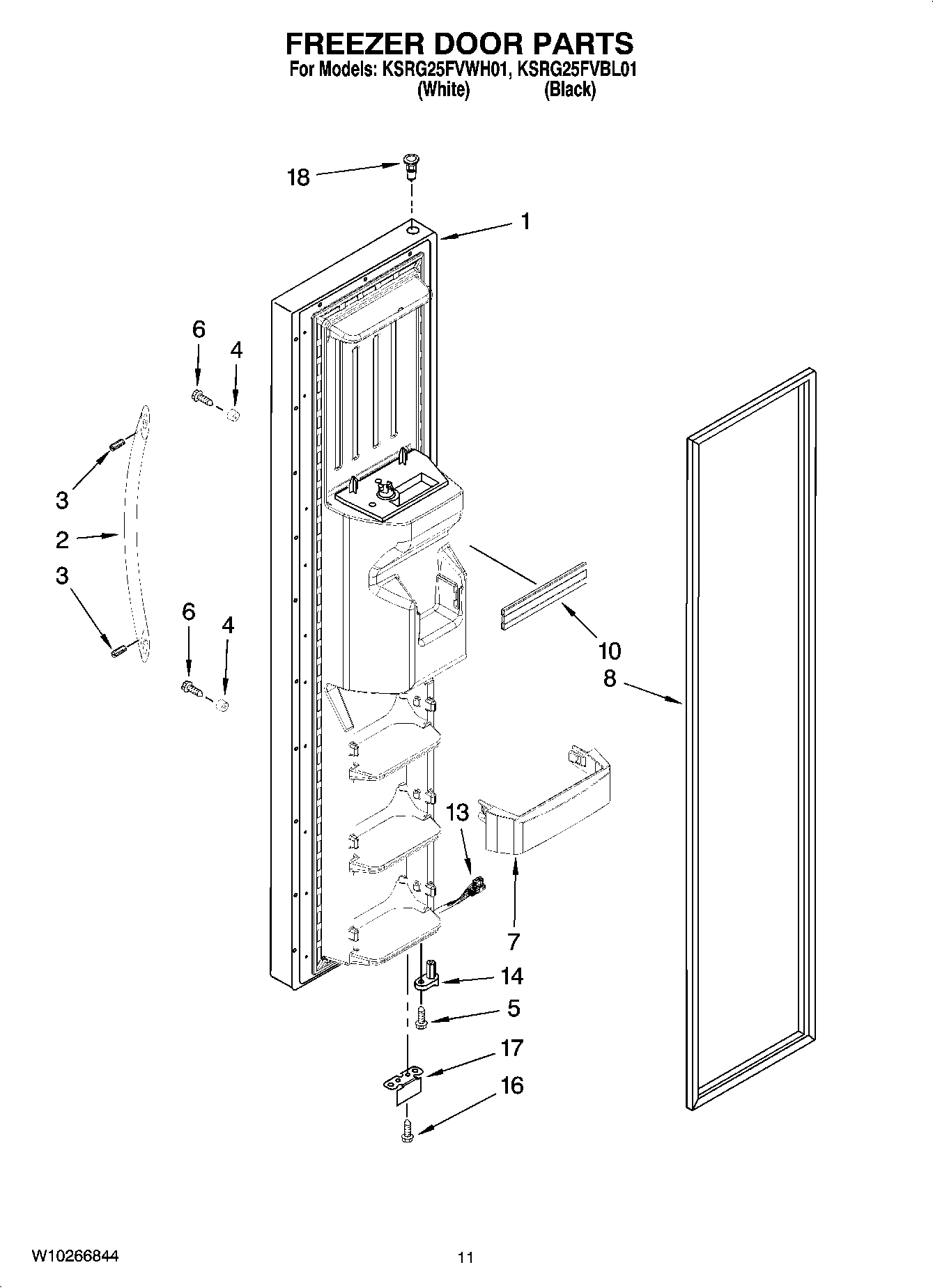

KSRG25FVWH01 07 – FREEZER DOOR PARTS

KSRG25FVWH01 07 – FREEZER DOOR PARTS

Written by

in

KSRG25FVWH01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2WP2319727W Whirlpool Refrigerator Handle
2WP2319727B Whirlpool Refrigerator Handle
3SCREW
4WPW10170540 Whirlpool Screw
5WP3400012 Whirlpool Refrigerator Screw
6W10141596 Whirlpool Screw Assembly
7Shelf Bin (3)
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
10WPW10307490 Whirlpool Door Trim Assembly
13WPW10193328 Whirlpool Refrigerator Wire Harness
14Door Closer, Upper Cam
16WP489483 Whirlpool Screw
172323534 Whirlpool Refrigerator Bracket
18WP2182181 Whirlpool Refrigerator Thimble
