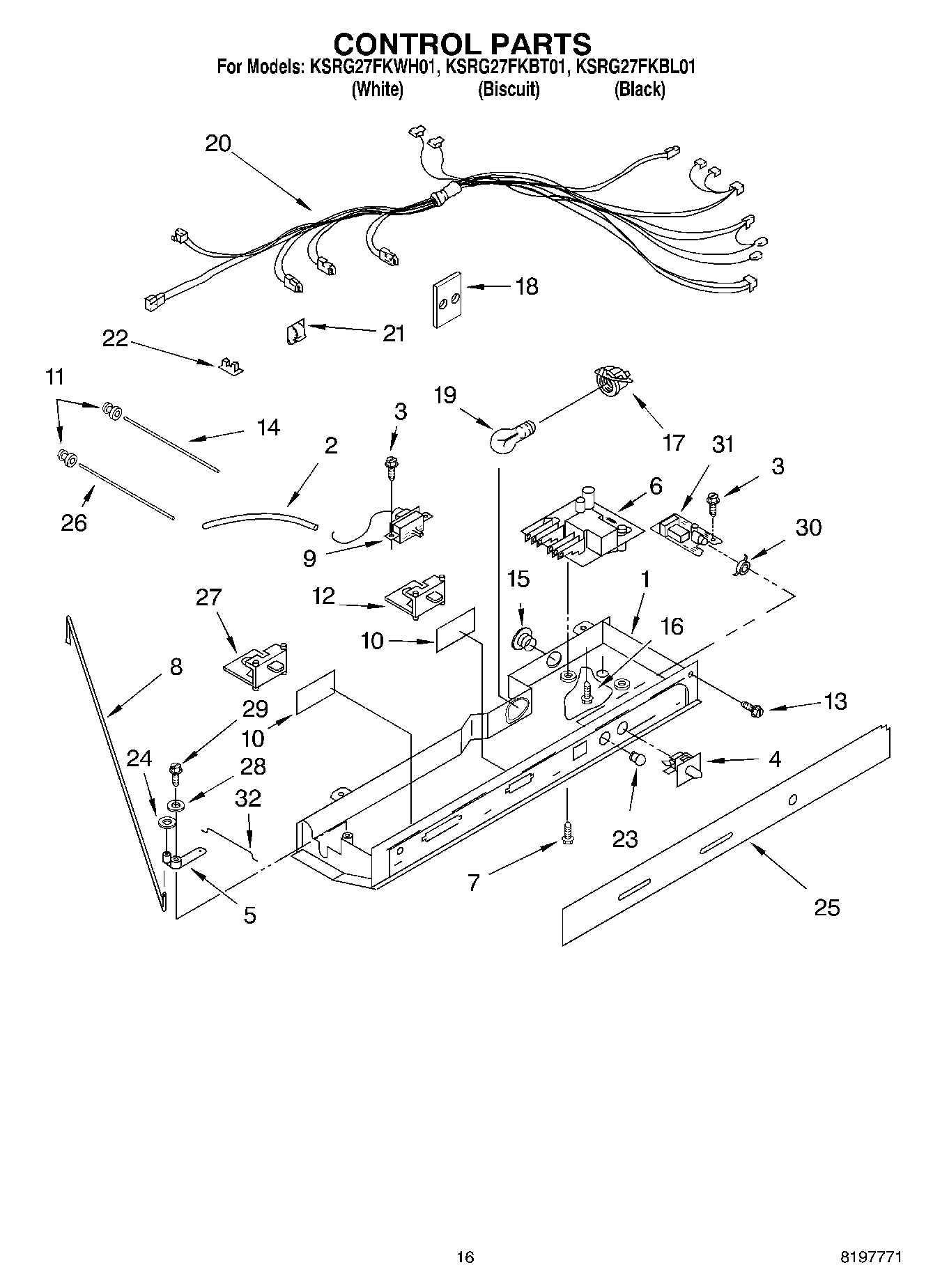

KSRG27FKBL01 10 – CONTROL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	2161306 Whirlpool Refrigerator Arm Pivot
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	2161308 Whirlpool Refrigerator Rod
9	WP2315562 Whirlpool Refrigerator Thermostat
10	Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
15	940014 Whirlpool Refrigerator Primary Button Plug
16	WP488488 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	2172931 Whirlpool Refrigerator Shield
19	RANGE ONLY 40W 120V APPL BULB
20	Harness, Control Box
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	COVER, LIGHT LENS
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar (FC)
27	2181741 Whirlpool Refrigerator Slide
28	489203 Whirlpool Refrigerator Washer
29	627068 Whirlpool Refrigerator Screw
30	Retainer, Light Lens
31	P.C. Board Filter Indicator
32	2161307 Whirlpool Refrigerator Rod
